Widely used in flange sealing as electrical insulation materials and linings in contact with corrosive media, supporting sliders, guide rail seals, and lubricating materials in the chemical industry, metallurgy, machinery, electronics, electrical appliances, construction, etc.

Specification
Color: White
Material: PTFE (Polytetrafluoroethylene)
Outer Diameter: 45mm / 1.77 inch
Inner Diameter: 35mm / 1.38 inch
Thickness: 2mm / 0.08 inch
Density: 2.3 g/cm³
Tensile Length: 13.72-34.3 Mpa
Elongation Rate: 150-400%
Shore Hardness: 55HD
Dynamic Friction Factor: 0.06
Dielectric Strength: 19 KV/mm
Compressive Strength: 12 Mpa
Working Temperature Range: -200°C to 260°C (-328°F to 500°F)

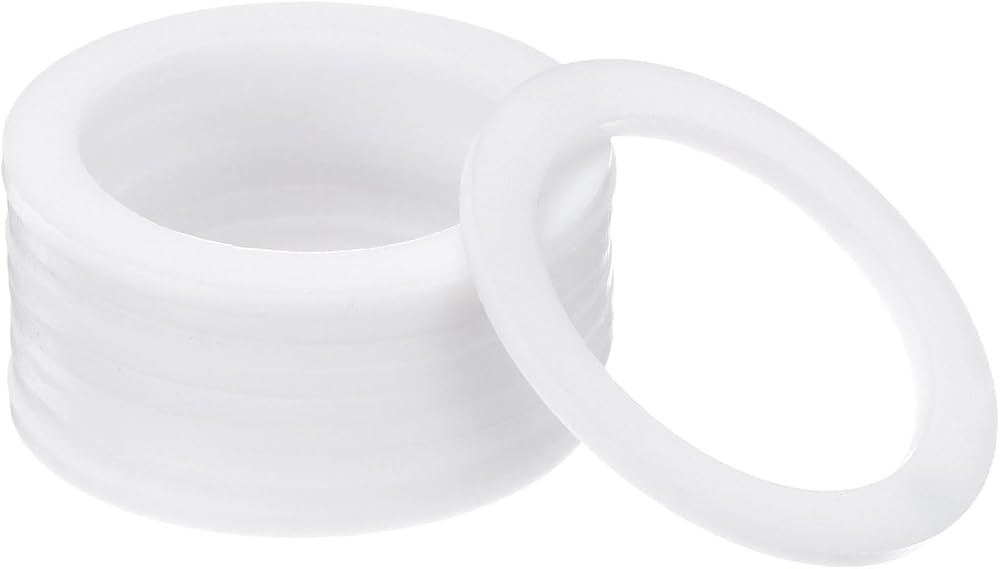

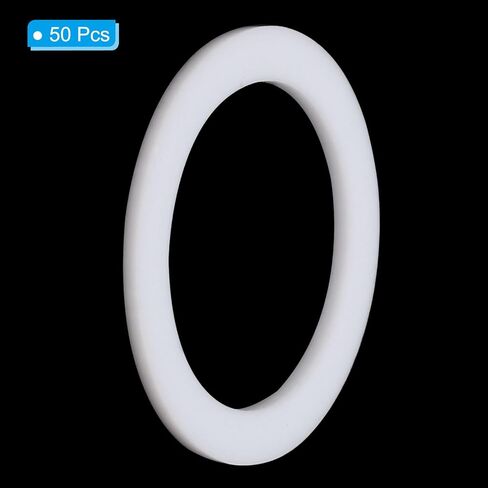

Package Contents: 50 x PTFE Flat Washers

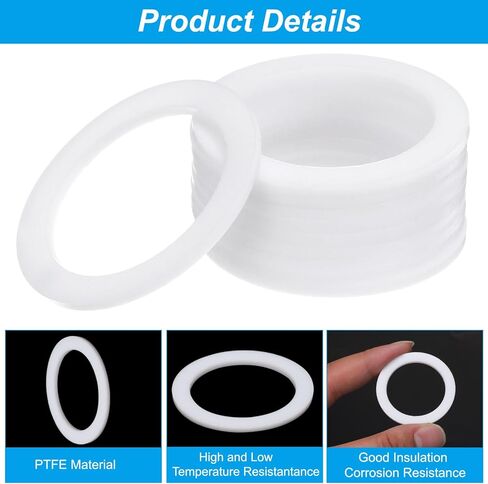

Advantage
Made of PTFE material, fine workmanship, excellent corrosion resistance, good self-lubrication, good insulation, non-conductive, and non-adhesion, it is high and low-temperature resistant and resistant to almost all chemical media. It has wear resistance, pressure resistance, high voltage resistance, and a low friction coefficient.

Instruction
The sealing gasket provides a bearing surface for fastener load distribution or is used as a spacer between components.

Notice
Please confirm the size before ordering.
