WH148 Type B10K Ohm Linear Taper Rotary Potentiometer Panel Pot 3 Pin 5Pcs

KWD 3.500
Brand
FOXTIP
Style10K
– 1 +

Special Features

  • Product name: 10K Potentiometer；model:wh148 10K ohm;type:rotary potentiometer.
  • product size：Total dimensions:24mm x 16.8mm x24.5mm (0.94in x 0.66inx 0.96in);knurled shaft.Shaft Length: 15 mm / 0. 6";shaft diameter: 6 mm / 0. 2 inch;mounting thread diameter: 7 mm / 0. 28";base diameter: 16 mm / 0. 63".
  • Material:metal, electronic parts, carbon film,not easily damaged.Adjustment Type: Top Adjustment
  • Product features:3 terminals, single linear (Type b), suits most standard knobs. Top adjustment Type and knurled shaft for easy operate in daily use time. Main used to control electrical devices such as volume controls.
  • Package included： 5 x WH148 Type B10K Ohm Linear Taper Rotary Potentiometer Panel Pot 3Pin

Description

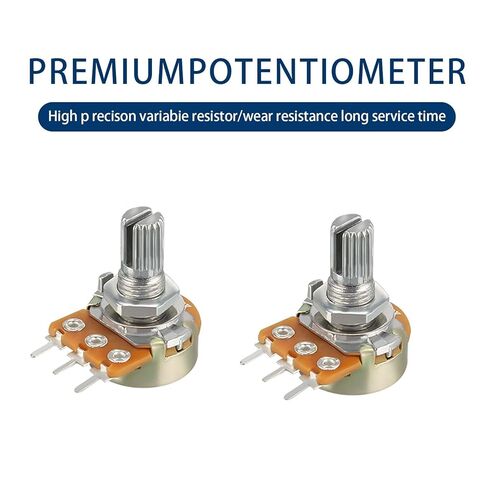

Product Name: Carbon Film Potentiometer
Model: WH148
Material: Carbon film Metal
Resistance Value: 10k ohm
Tolerance: +/-20%
Turn Number: Single Turn
Terminals Number: 3
Features: Round Shaft

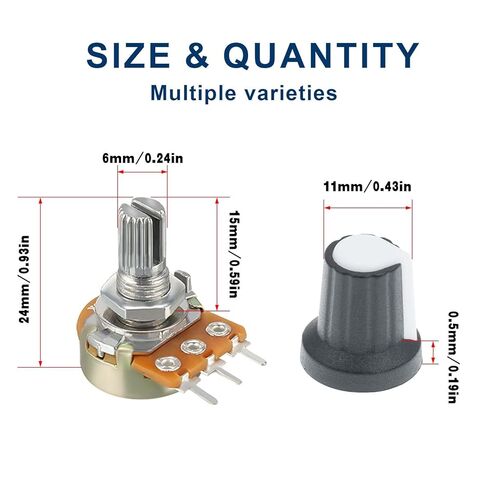

Total Size: 23.9mm x 16.4mm/0.94 x 0.65 inch (H * D)
Screw Thread Dia.: 5.9mm/0.23 inch
Shaft Diameter: 5.9mm/0.23 inch
Shaft Length(do not include the Screw Thread parts): 8.5mm/0.33 inch
Shaft Total Length: 15mm/0.59 inch
Package Content: 1 x Carbon Film Potentiometer
Features: 10K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
Top adjustment type and knurled shaft for easy operate in daily use.
Main used to control electrical devices such as volume controls on audio equipment.

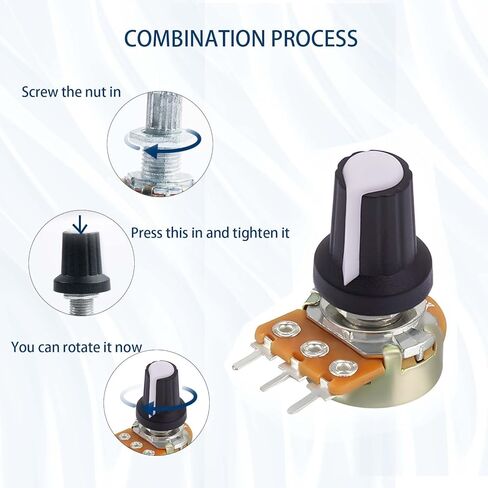

Knurled shaft with split design for push-on knob.
