Specification:

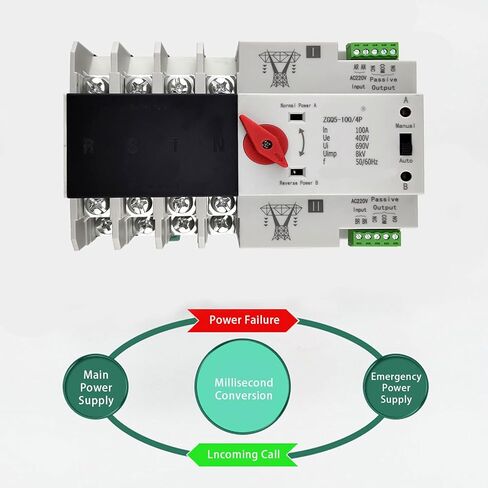

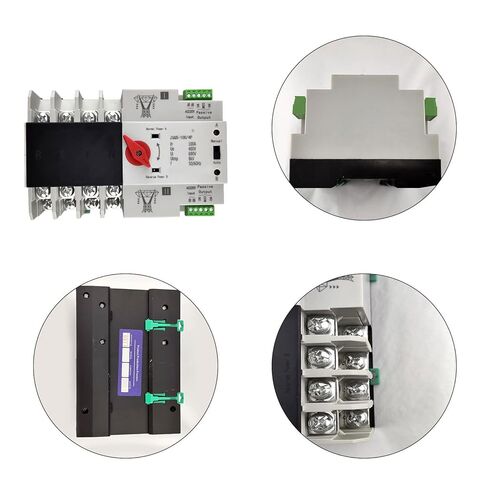

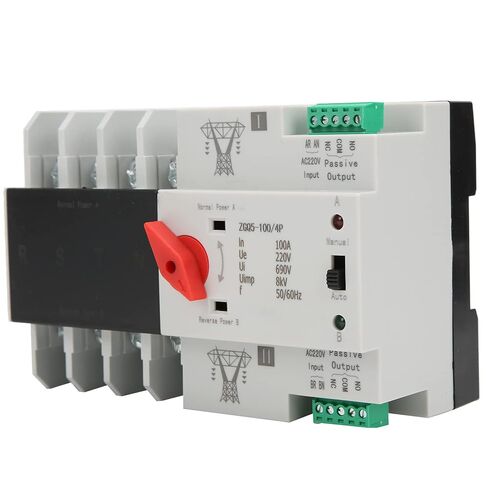

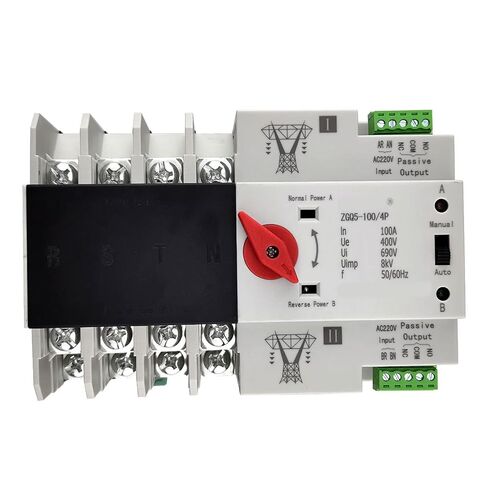

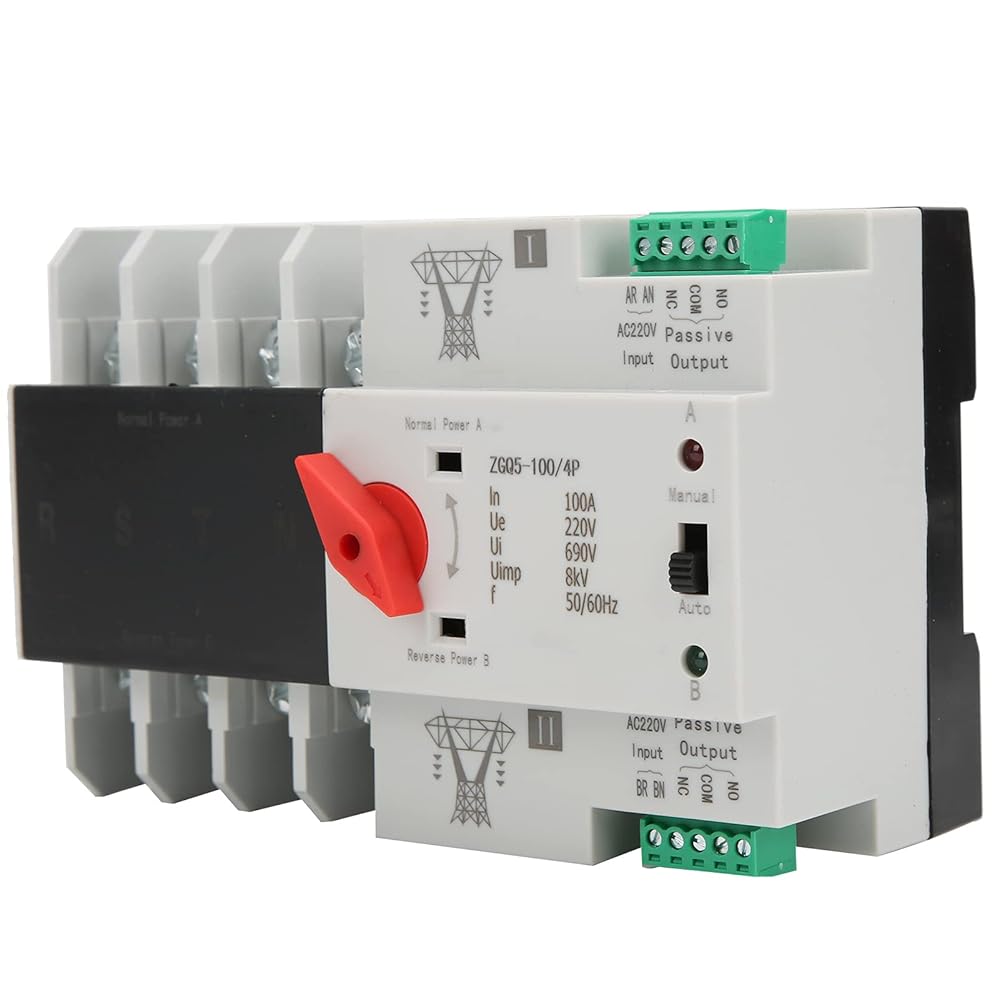

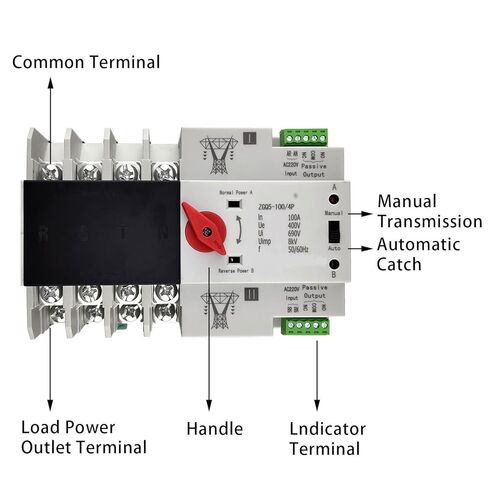

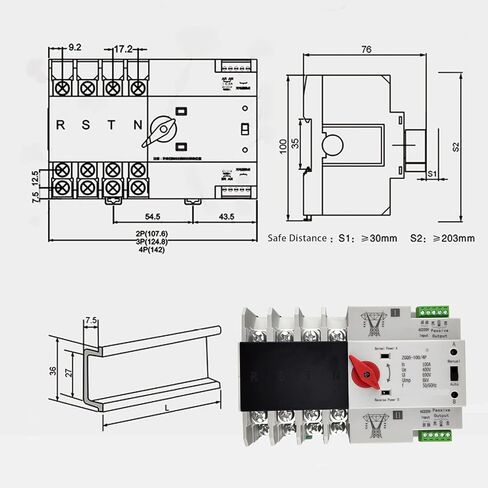

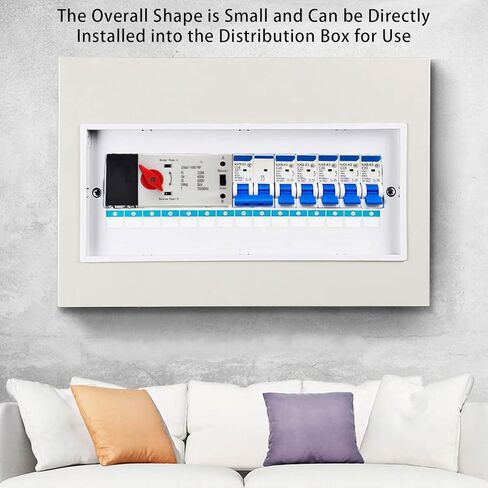

Item Type: Dual Power Automatic Transfer Switch
Model: 4P 100A 220V
Material: Plastic
Purpose: Switch to the backup power supply when the power fails, and switch to the main power supply when the power comes in
Working Frequency: 50-60HZ
Rated Current: 100A
Rated Voltage: AC110-230V
Working Voltage: AC220V
Operation Mode: Automatic and manual
ATS: CB level
Conversion Time: ≤0.05 (S)
Number of Poles: 4P

How to Use:
1. Place the automatic transfer switch of the dual power supply on the debugging platform, and connect the corresponding power line according to the correct phase sequence. The phase line and the neutral line are connected in position, and the wrong connection is not allowed.
2. When debugging the three-pole switch, the common and spare neutral wires should be connected to the neutral terminal (NN and RN) respectively.
3. Set the dual power supply automatic transfer switch to work in the self-turning and self-resetting mode. If the voltage of the two power supplies is normal, the switch should be placed in the common power supply position, and the common power supply is closed.
4. Set the common power supply NA, NB, NC, NN for any phase loss, the dual power supply should be automatically converted to the backup power supply, if the common power supply returns to normal, it should be converted back to the common power supply.
5. Adjust the voltage of any phase of the common power supply to the predetermined undervoltage voltage value, and the dual power supply should automatically switch to the standby power supply. When the normal power supply returns to normal, the switch should return to the normal power supply .

Package List:
1 x Dual Power Automatic Transfer Switch
1 x User Manual
