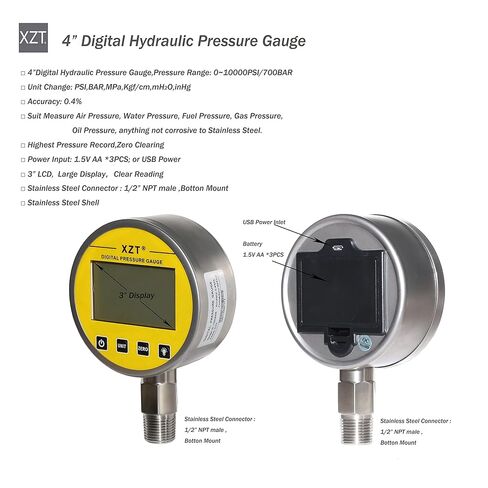

Specification:
Pressure Range: 0-10000PSI/700BAR;
Connection Thread: NPT1/2 male;
Display Unit: Bar, PSI ,MPa, Kgf/cm2;
Overload Capacity: 150%;
Accuracy: 0.5%FS;
Long-term Stability: 0.5%FS/year;
Input Voltage: 3V (two 1.5V AAA batteries);
Working Temperature: -20C-70C;
Footer Material and Pressure Connection: 304 Stainless Steel;
Protection Class: IP65
Thickness: 46mm(18.1inch);
Outline Dimension: 80mm(31.5inch);
Length:120mm(47.2inch).

Features:
Button Description:
Power button: press power button continuously for 3 seconds to Turn On or Turn Off;
UNIT button: shortly press Unit button to change the unit;
Long press "unit" button for 5 seconds, the display after the last reset
record maximum MAX;
Short press "unit" button, switch according to the minimum MIN.
Again short press "unit",then quit the records show.
ZERO button: pressure Zero button continuously for 3 seconds for zero clearing;
LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds.

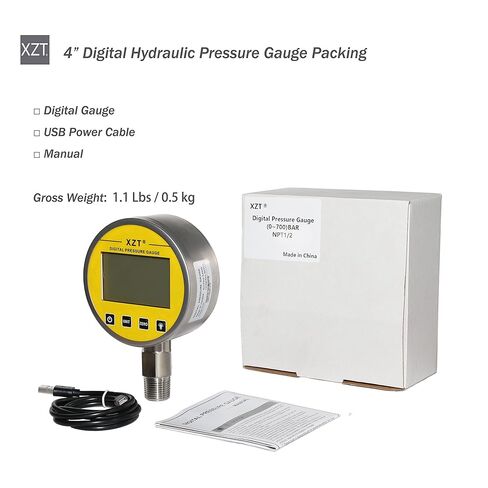

Package Content:
1 x Digital Pressure Gauge;
1 x Manual.
