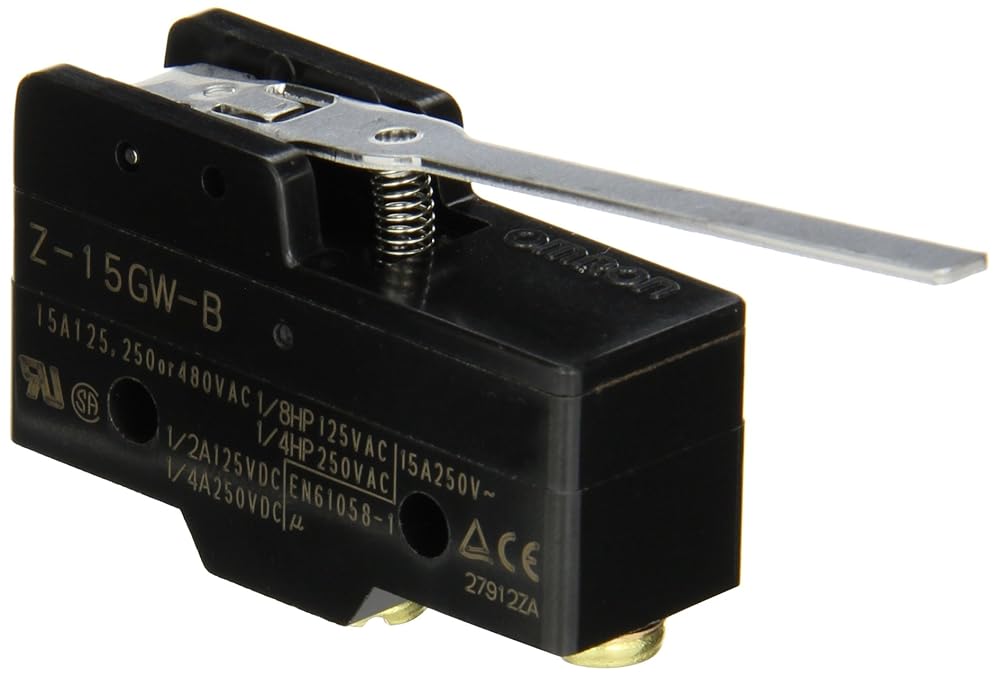

Omron Z-15GW-B مفتاح أساسي للأغراض العامة، رافعة مفصلية، منخفض، طرف لولبي، فجوة اتصال 0.5 مم، تيار مقدر 15 أمبير

KWD 9
ماركة
Omron
وزن
1 g
– 1 +

مميزات خاصة

  • Best selling basic switch boasting high precision and wide variety
  • A large switching capacity of 15A with high repeat accuracy.
  • A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
  • A series of standard models for micro loads is available.l
  • A series of molded terminal-type models incorporating safety terminal protective cover is available.

وصف

Omron Z-Series General Purpose Snap switch having 1 NO - 1 NC contacts performs switching operation by 0.69 N force with the input voltage as well as current rating of 125 - 250 VAC and 15 A respectively. Brand Name|Omron#MFR Part Number|Z15GWB#UNSPSC|39122243#Item|Snap Switch#Type|General Purpose, Standard#Voltage Rating|125 - 250 VAC#Amperage Rating|15 A#Operating Force|0.69 N#Release Force|0.14 N#Contact Configuration|1 NO - 1 NC#Actuator Type|Hinge Lever (Low OF)#Contact Form|SPDT#Travel|5.6 mm Over Travel, 1.27 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact, Stainless Steel Plunger#Temperature Range|-25 to 80 deg C#Enclosure Type|IP00#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines
