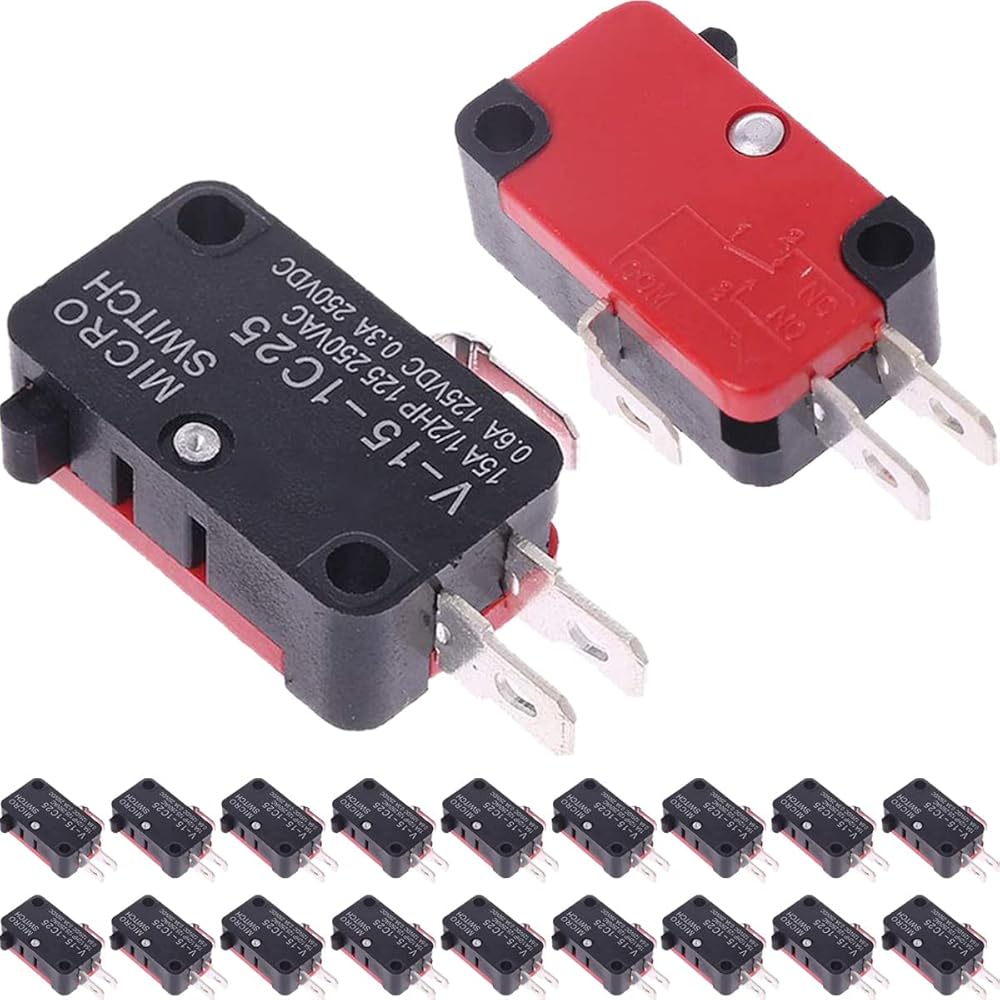

20PCS V-15-1C25 16A Micro Switch 125V/250V Snap Action Button Momentary Limit Switch Self Reset SPDT 1NO 1NC 3Pin for Microwave Oven Switch

KWD 4
Brand
DAOKAI
Weight
120 g
StyleV-15-1C25 16A Micro Switch
– 1 +

Special Features

  • Product: Micro Switch, Model No：V-15-1C25, Contact Type：SPDT 1NO 1NC, Action Type: Momentary, Pin number: 3, Working mode: self-reset. Durable and easy to install
  • Specification: Voltage & Load Rating: 15A 125/250 VAC, 0.6A 125 VDC, 0.3A 250 VDC; Mechanical life: 5E4. Material Plastic, Switch ColorBlack, Red, Silver Tone

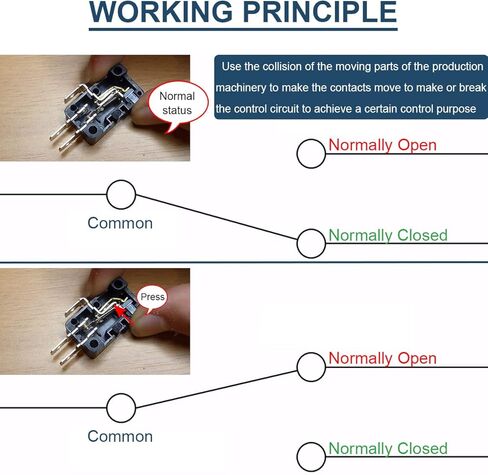

  • Working principle: The micro switch is to use the collision of the production mechanical moving parts to make the contacts move to make or break the control circuit to achieve a certain control purpose.
  • Application: Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc. Also suitable for electronics hobbyists DIY.

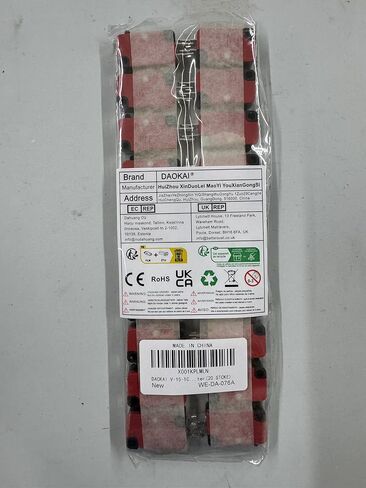

  • Package includes: You will get 20 x 3Pin 16A 125V/250V V-15-1C25 Micro Switch.

Description

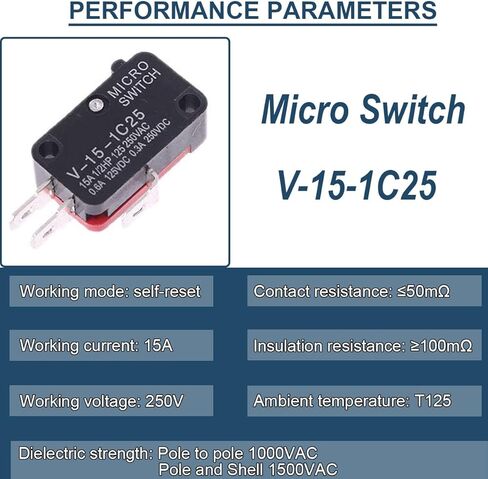

Specification：
Product name:Micro Limit Switch
Model: V-15-1C25
Working voltage: 250V
Working current: 15A
Working mode: self-reset
Contact resistance: ≤50mΩ
Insulation resistance: ≥100mΩ
Dielectric strength: pole to pole 1000VAC
Pole and Shell 1500VAC
Contact form: 1NO 1NC
Ambient temperature: T125

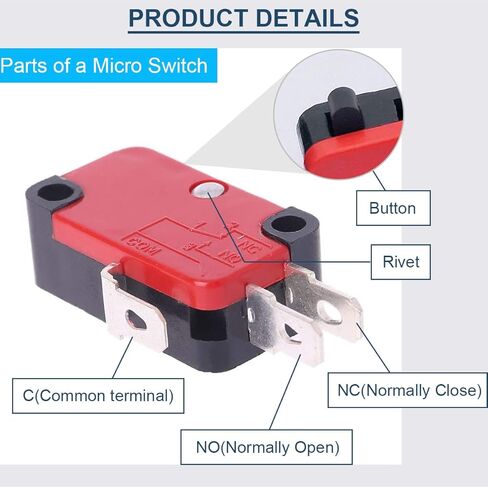

Pin definition:
NC (normally closed end): The relay is not energized, the NC and COM are connected, the contact is closed, and the switch is closed. After power up, NC and COM are disconnected
NO (Normally Open): The relay is not energized, NO and COM are disconnected and not connected. After power on, NO and COM are connected
COM (Common): refers to the common ground of all external input or output components

Application：
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc

Package includes：
15 x 16A Micro Switch V-15-1C25
