Package Include:

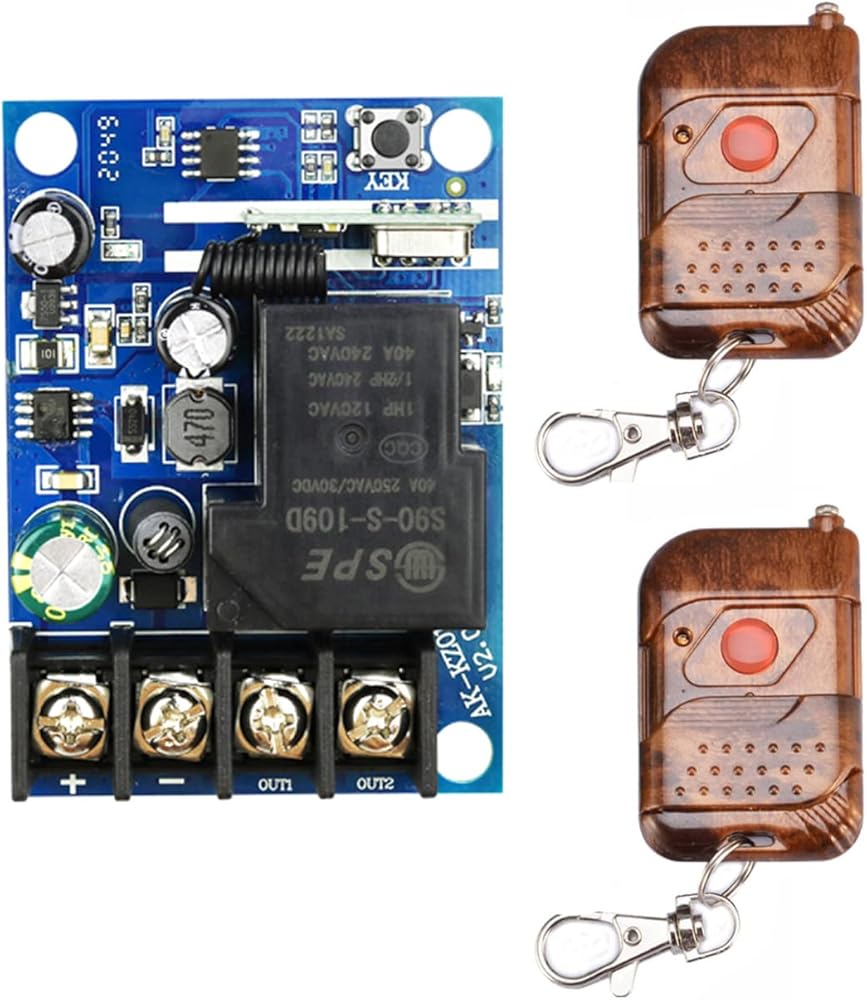

1* Receiver (with cover)
2* Remote Control (with battery, If you need extra remote control , please tell us. and we will send you momentary mode, if you need Toggle mode, please adjust by jumper )
One year warranty

Product Description
1. Working Voltage: DC12V-DC48V
(DC 12V 14V 15V 16V 17V 18V 19V 20V 21V 22V 23V 24V 36V 48V All is ok)
2. Quiescent current:About 10ma
3. Working Temperature:-40'C- +80'C
4. Receiving Sensitivity :more than -108dBm
5.Working Frequency:433MHz
6. Output 0V Switching Value use relay COM NO
7.Max Load Current:40A Relay have better Load less than 30A
8.Size: 84x60x27（mm）
Maximum load power: 1200w
Launch distance: 30-100m (in open area)

working modes description (The default mode is Momentary mode)
Momentary:Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF,
Toggle: Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,
Latched: Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.

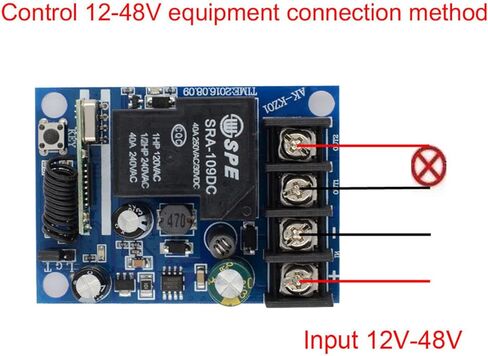

working modes set--Input 12V for the Receiver
Momentary mode: press the learn code key once, and then press and hold the remote control key for 3 seconds. The controller indicator flashes to indicate that the code is learned successfully. The working mode is jog mode.

Toggle: press the learn code key twice, and then press and hold the remote control key for 3 seconds. The controller indicator flashes to indicate that the code is learned successfully. The working mode is jog mode.

Latch: press the code learning key three times, and then press and hold one key of the remote control for 3 seconds (for example, key A). The indicator light of the controller will flash and remain on. Then press another key of the remote control (for example, key B). The indicator light of the controller will flash to indicate that the code learning is successful. The working mode is interlock mode.

Delay mode 5/10/15/20S: press the code learning key 4/5/6/7 times, and then press and hold the remote control button for 3 seconds. The controller indicator flashes to indicate that the code is learned successfully. The working mode is automatic shutdown mode with a delay of 5 seconds.

Learning Method
Input 12-48V for the Receiver .Press the Learning Button until the Led indicator OFF. Then press transmitter, the Led indicator flash 3 times, it mean learning successfully.

Clearing method : Press and hold the learn code button of the controller for 5 seconds until the indicator flashes, indicating that the code is cleared successfully.
