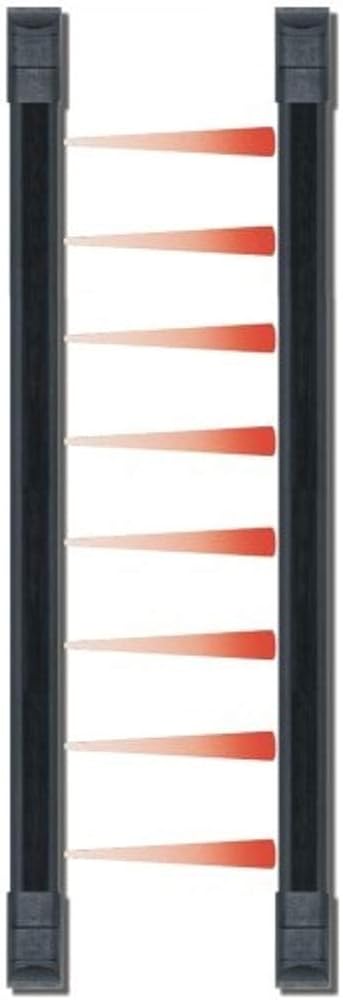

Seco-Larm E-9660-8B25 IR Curtain Sensors for Indoor/Outdoor Access Control with 8 Photoelectric Beams, Up to 25ft Outdoor and 50ft Indoor Range, NO/NC Relay Output and LED Alignment Indicator
These infrared photobeam curtain/barrier sensors are perfect for installation in windows, doorways, skylights, fence tops, any place where space is limited. Suitable for indoor and outdoor perimeter security, the trigger is programmable for simultaneous breaking of any single or 2 adjacent beams. The design features rugged aluminum construction, and an anti-tamper circuit for triggering an alarm if power is cut or the end cap is removed. No synchronizing wires are required and the LED alignment indicator makes installation easy.
Key FeaturesRugged aluminum construction
LED alignment indicator
No synchronizing wires required
NO/NC relay output
Weatherproof IP65 construction
Slimline design (7/8" x 1-5/16" cross section)
Trigger by simultaneously breaking 2 adjacent beams or any single beam (programmable)
For windows, doorways, etc., where space is limited
L-brackets and mounting hardware included
3 Programmable frequencies eliminate interference when installing multiple sensors in close proximity
SpecificationsCurrent Draw: Standby- 102mA, Active- 92mA
Number of Beams: 8
Sensing Range: 25' (8m) outdoor, 50' (16m) indoor
Operating Voltage: 12~24VDC
Reaction time: 0.5~60 ms
Detection System: Simultaneous break of 2 adjacent beams or any single beam (programmable)
LEDs: (On): powered, aligned properly, (Flash): when beam is broken, (Off): no power
Case material: IP 54 / Aluminum alloy
Output: NO/NC relay output, 1A @ 12~24VDC
Operating Temperature: -49º~131ºF
Dimensions: 60-1/8"x1-5/16'x7/8"
