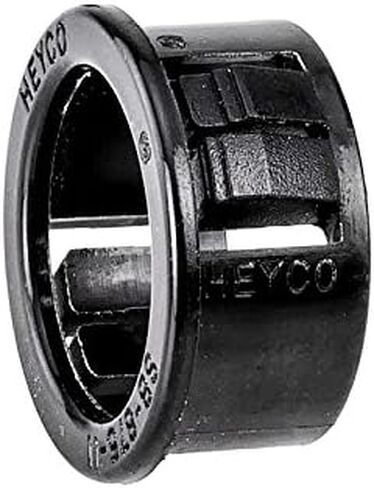

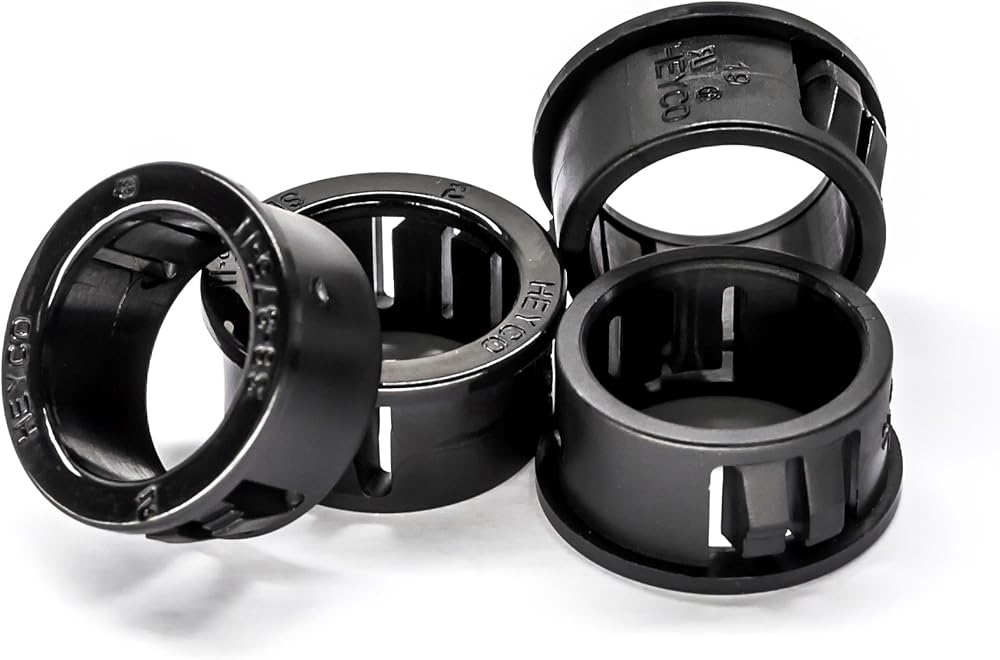

7/8'' HEYCO SNAP BUSHING, UL and CSA Certified Component
Multiple Locking Steps for Panel Thickness up to 1/8''

Package bag of 100 count

PRODUCT FEATURES:
Convert raw-edged holes to smooth, neat, insulated holes.
Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
Locking fingers snap into holes with fingertip pressure.
Withstand a push back force of 35 pounds.
Temperature Range -0.4°F (-18°C) to 221°F (105°C)
Tough, UL 94V-2 Flame Retardant Nylon 6/6 will not crack or break, even when applied to maximum wire combinations under extreme pressure

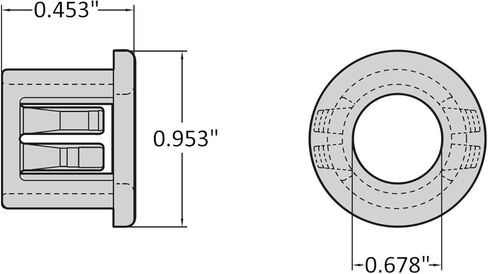

PRODUCT DIMENSIONS:
Overall Dimensions: 0.95'' (24.13mm) D x 0.45'' (11.43mm) H
Inside Diameter: 0.69'' (17.53mm)
Head Diameter: 0.95'' (24.13mm)
Mounting Hole Dia: 0.875'' (22.23mm)

CERTIFICATIONS:
 UL Recognized under the Component Program of Underwriters' Laboratory File E15331
 CSA Certified by the Canadian Standards Association File 8919
