Specification:

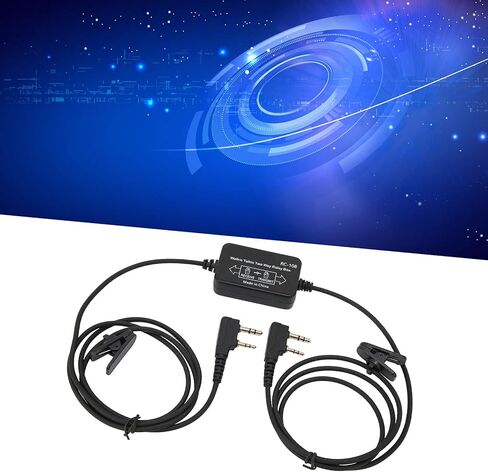

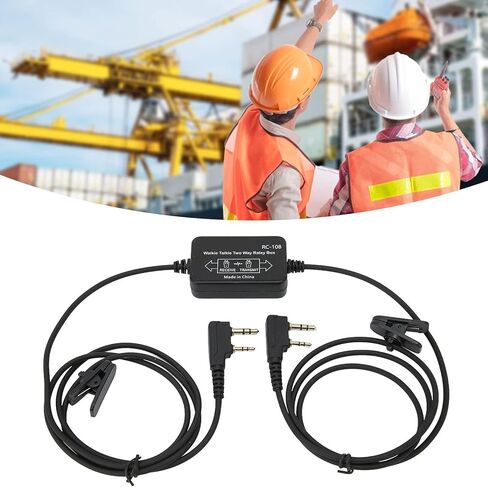

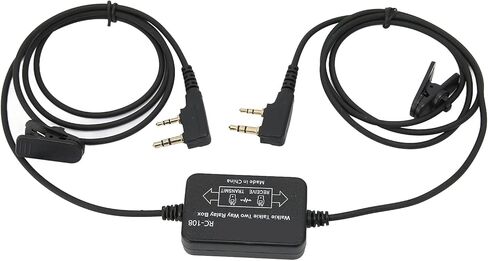

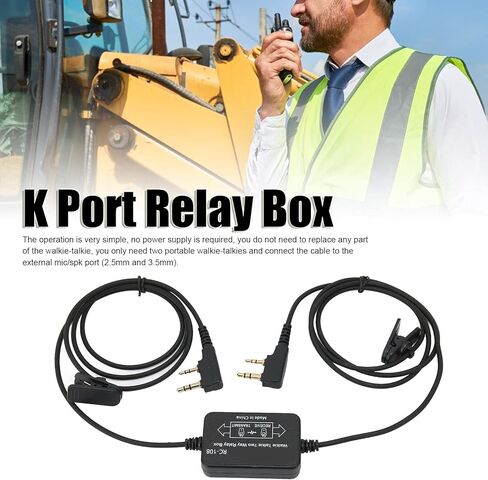

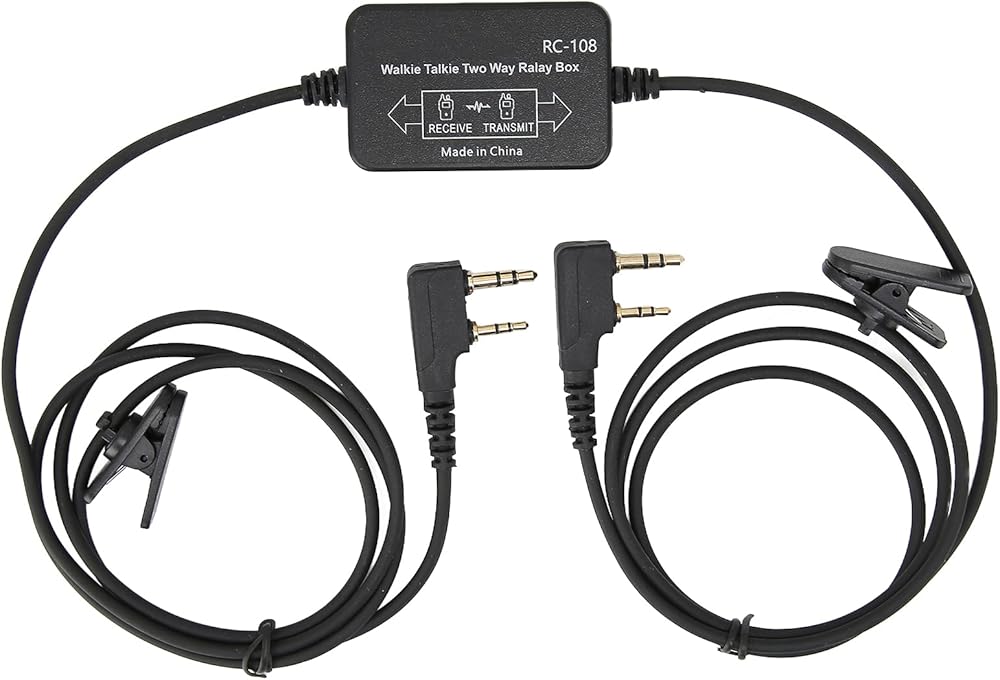

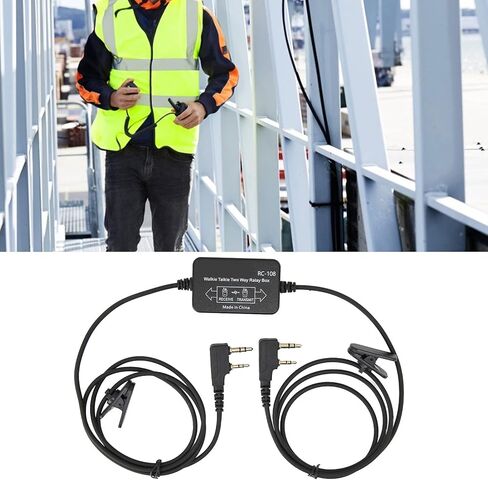

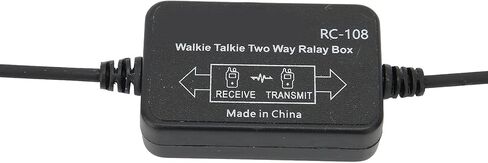

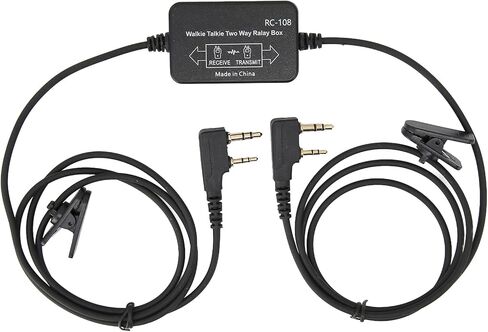

Item Type: Walkie‑Talkie Two Way Relay Box
Material: ABS
Colour: Black

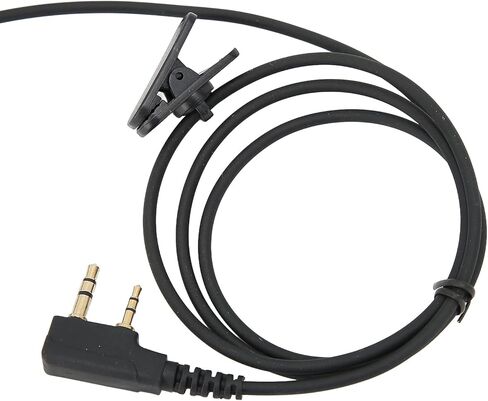

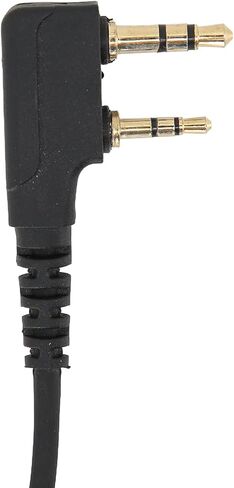

Connector: K Port is Used for Kenwood and Most Brand Walkie-talkies with the Same Connector
Antenna/duplexer installation application:
1. Original multiplexer: Two hands connected to a repeater station, such as a peerless multiplexer, each hand must use two antennas separately! Both antennas must be lifted vertically! And between the two, they tried to distance themselves. At least not less than 5m / 16.4ft. (Two walkie‑talkie antennas prevent parallel erection!)
2. Duplexer: Purchase the corresponding frequency/power duplexer, couple the output ends of the two unit antennas at the "contact point" to the duplexer at the transmitting end and the receiving end respectively, and set the player reservation table of the corresponding frequency (one frequency must It is consistent with the duplexer). In the case of a duplexer, the repeater only needs to connect to an antenna! And there is no special attention when setting up the antenna!

Package List:
1 x Relay Box

Note:
1. The relay box is an audio mode, so when you use the walkie‑talkie, the volume is adjusted to the maximum, otherwise it may not send.
2. If the delay time is too long (more than 3 seconds), the conventional reason is that the radio transmitting antenna is too close to the trunk, which causes the relay box to transmit interference. Can be used to solve the problem of external intercom antenna interference.
