مميزات خاصة

CPU: Intel Celeron J6413 Quad Core Processor, 4 Threads, 1.5M Cache, up to 3.00 GHz
Memory & Storage: 2xDDR4 SODIMM ram slot (Compatible: 2400/2666/3200MHz); Support two storage, 1xm.2 NVMe(PCLe3.0x1) and 1x2.5''SATA3.0 SSD/HDD

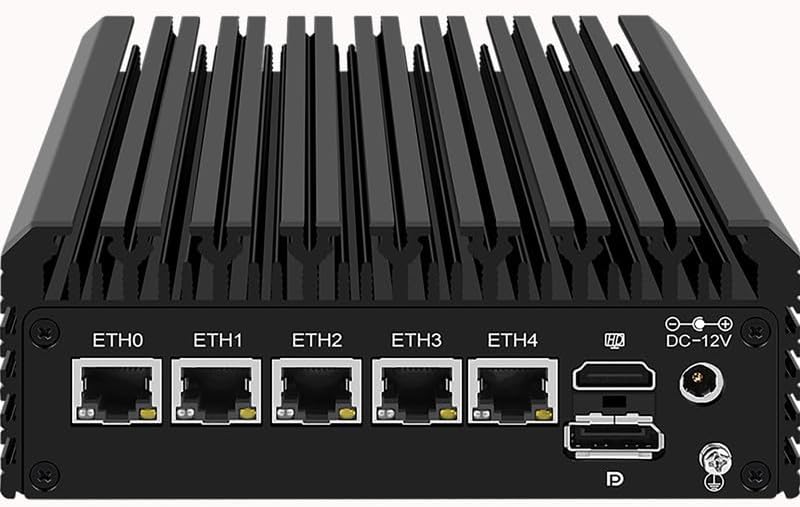

PORTS: 5xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 2xDB9 RS232 COM, 1xHDMI1.4, 1xDP1.2a, 1xType-C, 3x4K UHD video display
Compatibility: No OS pre-installed. All hardware tested with Windows, untangle, Proxmox, opnsense and other popular open-source software solutions. Supports AES-NI hardware

وصف

Product Features

1. Based on Intel Celeron Elkhart Lake quad-core low-power platform.

2. 5 Intel i226-V 2.5G NICs.

3. 2 SO-DIMM DDR4 3200MHz (2400/2666 compatible) Max 64G, 1*M.2 NVMe (PCle 3.0 X1) interface compatible with 2242/2280 size.

4. 2*SATA3.0 ports with 4pin power supply Compatible with 2.5/3.5" hard drives.

5. 1 full-height MINIPCle slot, change the resistance can support mSATA hard drive.

6. HDMI1.4+DP1.2a+Type-C(display/data), support for 3 display outputs.

7. 2 RS232 (DB9 pin) interface, can be customized to change the material to support 1 RS485, onboard a small 4PIN 12V temperature-controlled fan seat reserved for a set of TPM row pin. (Temperature controlled fan not included)

8. ETH4 network port can be customized Layout into a group of USB2.0 so that the machine has 6 USB, the whole machine fanless passive cooling, zero noise, low power consumption TDP only 10W.

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xSATA Cable

1xScrews Bag
