24 فولت-12 فولت 10 أمبير (66 ملم)

KWD 6
ماركة
NW2
وزن
256 g
اللون24 فولت-12 فولت 10 أمبير (66 ملم)
– 1 +

مميزات خاصة

  • IP68 strong waterproof--full-body die-cast aluminum shell and organic silicone seal design, waterproof, shockproof, moistureproof and dustproof.
  • Input voltage range--DC 24V(16V-35V);output voltage: DC 12V;Output current: 15A (rated operating current);Output power 180W.
  • Safety--Overvoltage protection, overcurrent protection, overload protection, overheating protection
  • High efficiency--Industrial DC 24V to DC 12V buck converter, using synchronous rectification technology to improve conversion efficiency, efficiency up to 93%, no delay start, free air convection cooling.

وصف

Output power(W) 180W
Input voltage(V) 24V DC
Output voltage(V) 12V DC
Output Type: Single
Input: Input voltage range(V)16V-35V DC
Efficiency 93%
Output:
Output voltage range(V) VOUT: 12V DC
Output current(A) 15A
Voltage adjustable 2%
Ripple wave: 50Mv
Starting delay time: Isolation :Non-isolated
Waterproof Waterproof IP68
Other: Dimension 2.91x2.91x1.25inch
net weight:320g
Cooler natural cooling Rated temperature: 45 degree
Operating temperature -40degrees -80degrees

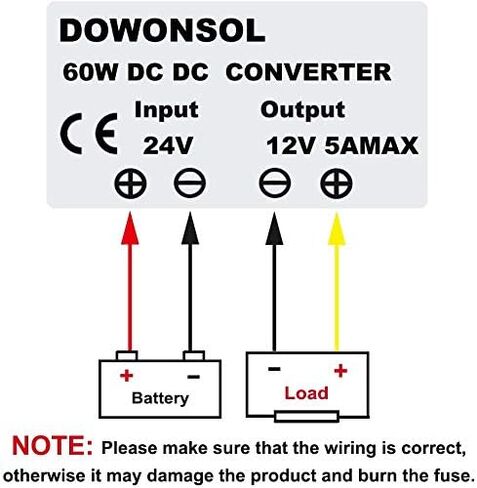

Input transient voltage protection, output over-current protection, output short circuit protection, chip overheating protection function. This power supply without reverse connection protection, input and output negative pole line cannot be reversed Cooler natural cooling Rated temperature ° 45°
Operating temperature -40°-80°
Probability of reliability >100000h
