Pin6 (485A) and Pin7 (485B)
RJ45 pins Pin6 (485A) and Pin7 (485B), terminal A is connected to 485A and terminal B is connected to 485B. As long as these two pins are connected, the reverse connection is also possible, such as Pin6 (485B) and Pin7 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Pin4 (485A) and Pin5 (485B)
RJ45 pins Pin4 (485A) and Pin5 (485B), terminal A is connected to 485A terminal B is connected to 485B, as long as these two pins are connected, the reverse connection is also possible, such as Pin4 (485B) and Pin5 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Parameter
Pin: Pin4 and Pin5 or Pin6 and Pin7

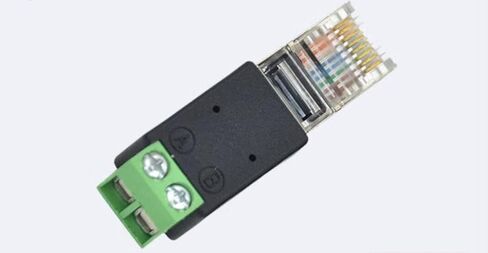

Product model: RJ45 to 485 terminal
Quality: Industrial grade
Purpose: The physical interface of 485 is RJ45
Working temperature: -40~ 85℃
Product name: RJ45 to 485 terminal Pin4 and Pin5 or Pin6 and Pin7 other pins need to be customized
