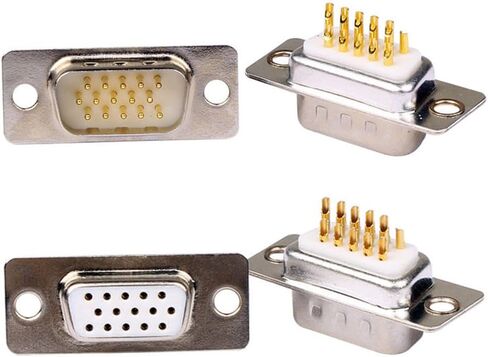

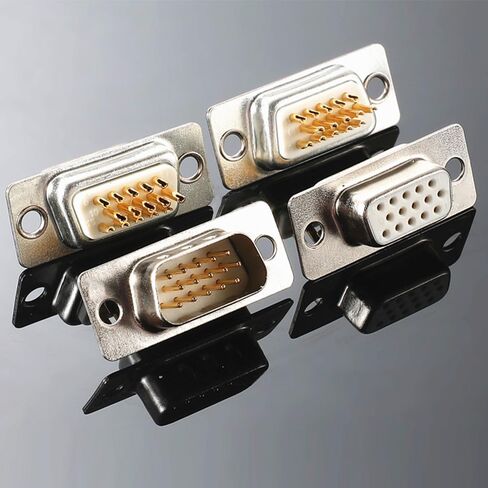

10 قطع VGA ذكر أنثى DB15 3 موصلات كأس لحام، وصلات مطلية بالذهب نوع لحام D-SUB HD15 15Pin D وصلات فرعية (ذكر × 5، أنثى × 5)

KWD 4
ماركة
Jienk
وزن
55 g
أسلوبVGA
– 1 +

مميزات خاصة

  • Stability: Gold plated joints with nickel plated housing, resistance to plug and stable transmission. Solder cup connectors more firm and stable, Not easy breaks under tension.
  • Widely Application: VGA Connector can be used for automatic control equipment, industrial control equipment, cash register, tax control machine,and for high-quality signal transmission between desktop computers, notebooks, all-in-ones, HD DVDs, digital HD set-top boxes, X-BOX360/PS3, game consoles, digital cameras, camcorders, LCD HD projectors, LCD monitors, and high-definition digital TVs, etc.
  • Flexibility: Compact and light weight allows you to make up your own custom cables with VGA connectors.

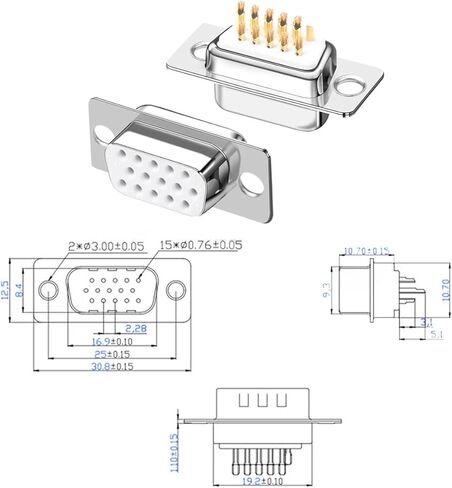

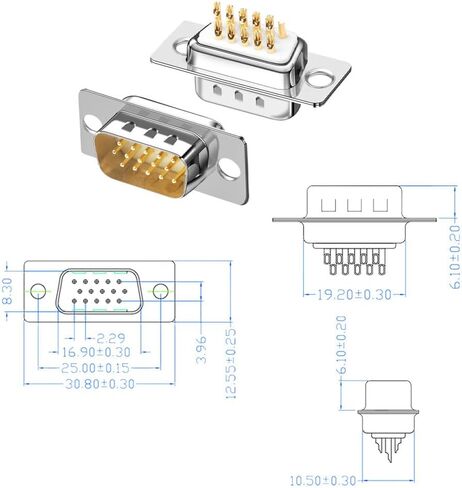

  • Mount Hole Distance: 25mm / 1"; Pin Count: 15
  • Maximum wire size is 20 AWG

وصف

Specifications：
Insulator:PBT
Contact Material: Gold plated joints
Type: Welding type
Pin: 15 pin
Rated Voltage:24V
Rated Current:2A
Contact Resistance: 30mΩ
Insulation Resistance:100MΩ; Min. AT 500V DC
Withstand Voltage:1000V AC for 1 minute Min.
Operating temperature:-67℉~221℉/-55℃~105℃

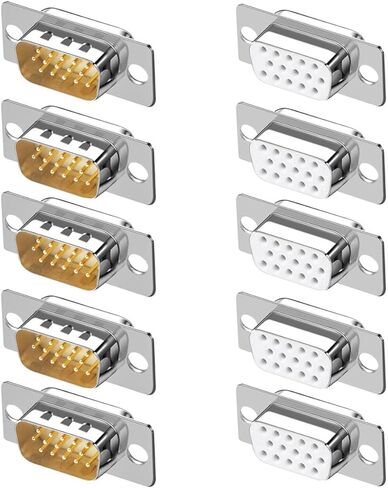

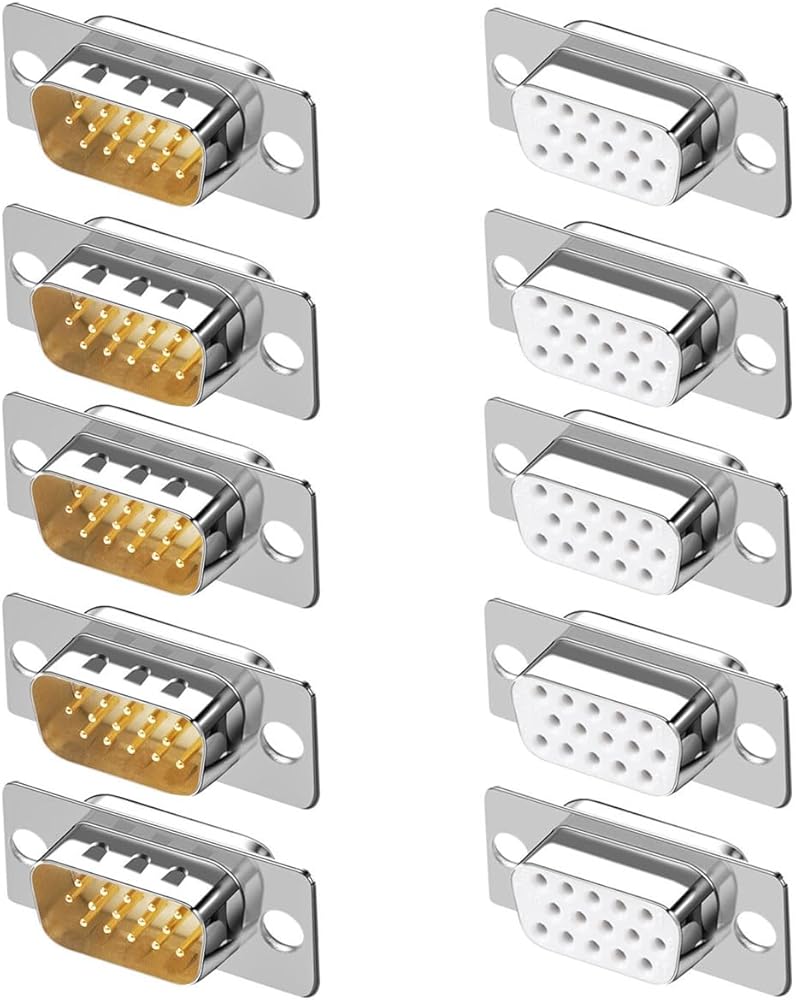

Package Included：
5 X Male VGA Solder Type Connectors
5 X Female VGA Solder Type Connectors
