100% brand new and high quality
Material: Electrical Components
Color: See Pictures
ADMP401
3dB roll off at 100Hz and 15kHz
1.5 to 3.3VDC supply voltage
Should comfortably output 40mW
SNR of -62dBA

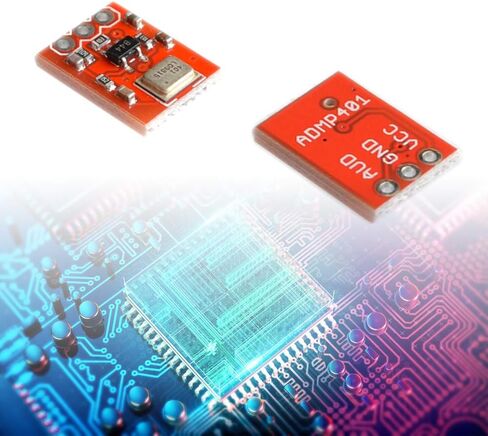

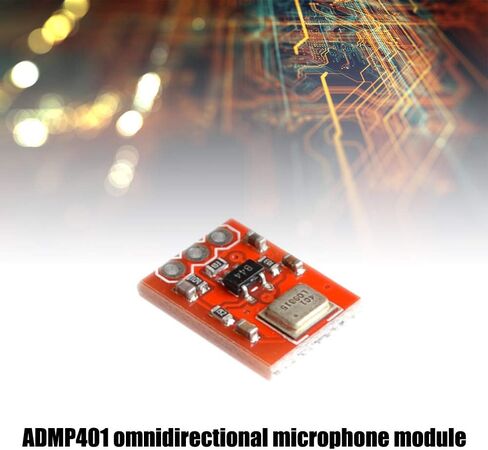

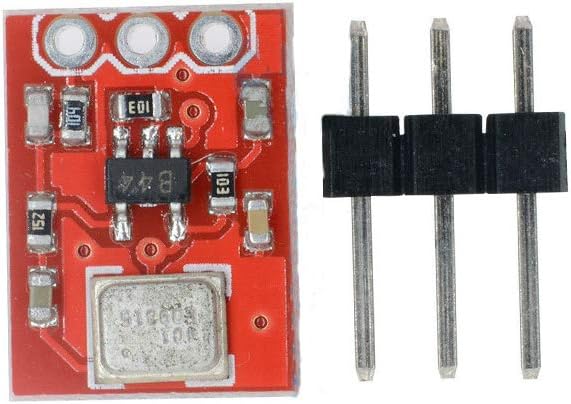

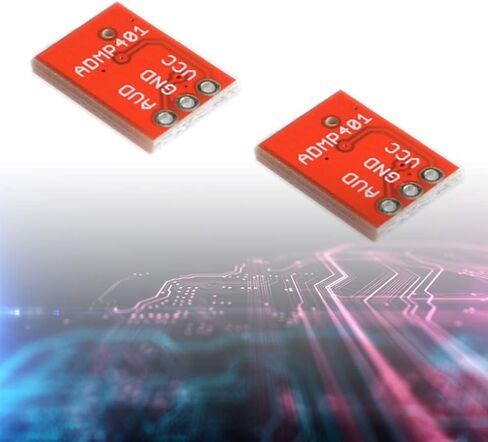

This tiny breakout board features the ADMP401 MEMs microphone. One of the key advantages to this breakout and microphone is the bottom ported input
This means the microphone's input can fit flush against the enclosure of your project
Plus you will not have to deal with trying to solder the microphone's wacky footprint

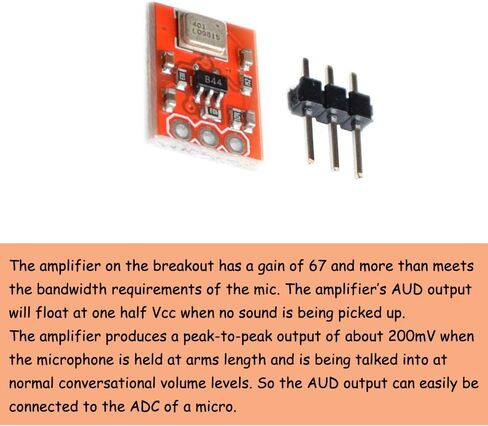

The amplifier on the breakout has a gain of 67 and more than meets the bandwidth requirements of the mic
The amplifier's AUD output will float at one half Vcc when no sound is being picked up
The amplifier produces a peak-to-peak output of about 200mV when the microphone is held at arms length and is being talked into at normal conversational volume levels
So the AUD output can easily be connected to the ADC of a micro
Size:1.3cm*1cm(0.51"*0.39")
No Retail Package
Quantity:1 Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:

1 x ADMP401 MEMS Microphone Breakout Module Board
