Electrical parameters
model:C20-90J12V20A5L

input parameter
Input range： 20-90V
Rated input voltage：24/48/60/72/84V
transfer efficiency：95%

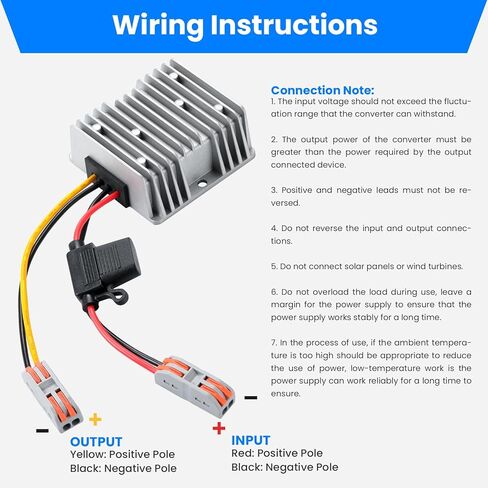

incoming line：15-16CM(R+ B-)
output voltage：12V
Output：20A MAX
Maximumoutput：240W MAX
No-load adjustment rate：2%
load regulation：3%
quiescent dissipation：≤30MA
ripple wave：300mVP-P
The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.
outlet line：15-16CM(Y+ B-))

enviromental parameter
working temperature：-20-65°
Storage temperature：-40-85°
Working humidity：10%-90%RH

defencive function

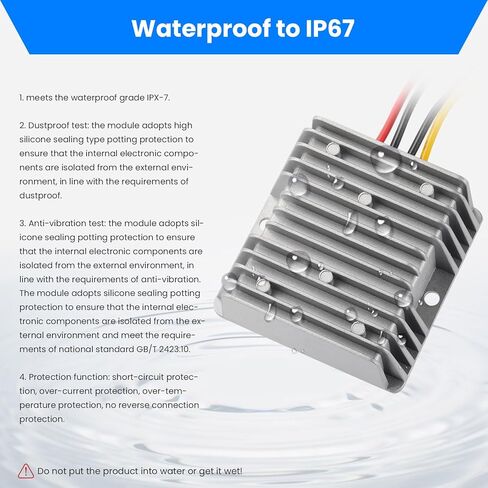

classification of waterproof：IP67

Other
Weight：0.62 lb

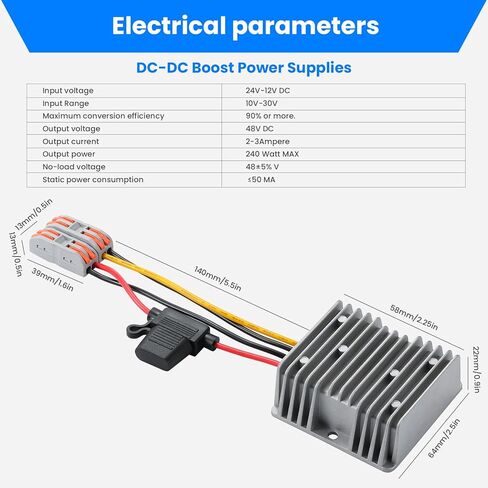

Size：2.91*2.91*1.26 inch
Heat dissipation method：natural heat dissipation

matters need attention
69.memory：The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.
70.Do not use it near a heat source (such as a fire or a heater).
71.Do not connect the input line to 220V electricity.
72.Do not put the product into the fire or heat it.
73.Do not short-circuit the positive or negative poles of the product with wires or other metal objects.
Non-professional personnel are prohibited to disassemble and repair by themselves.
