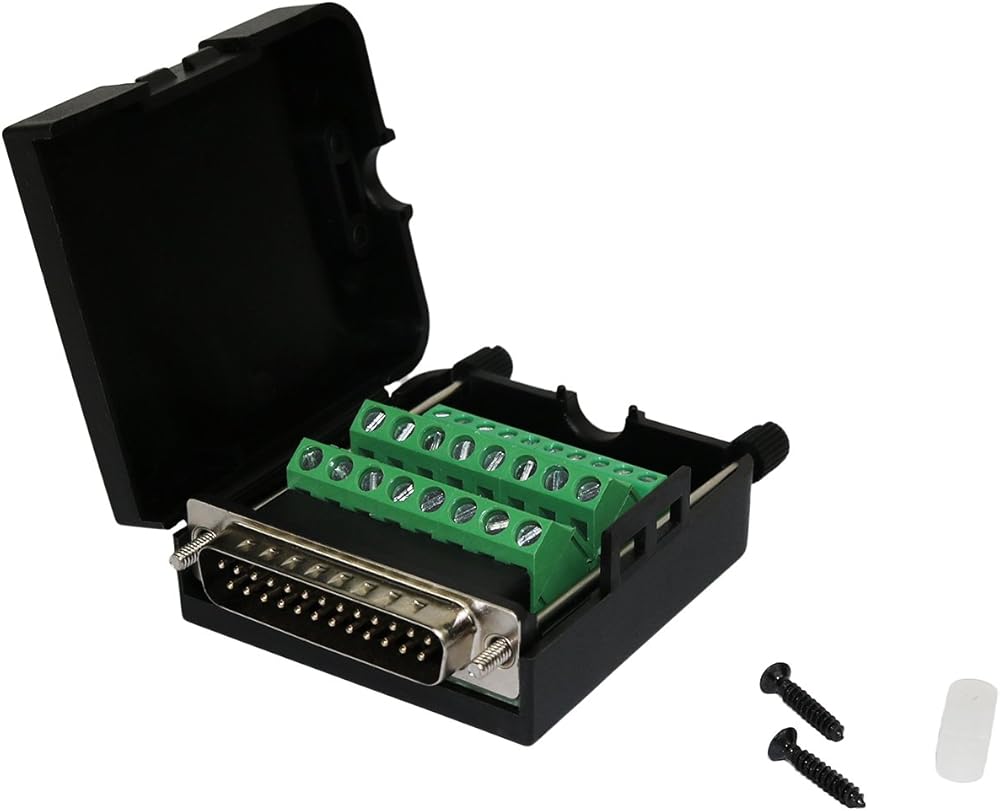

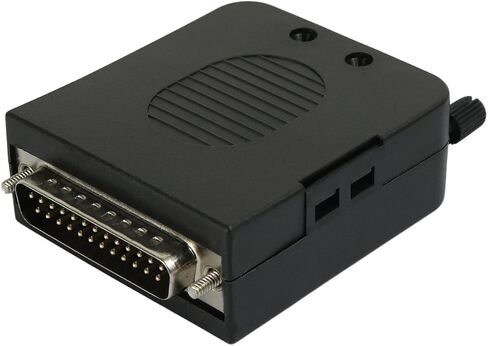

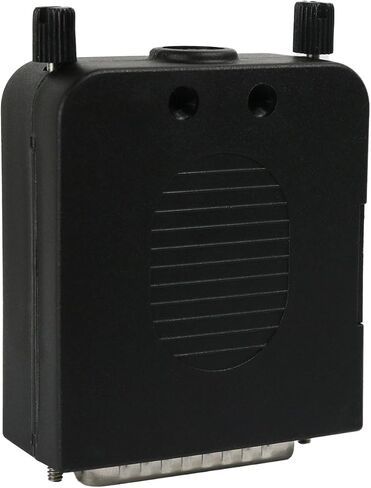

موصل Twinklebay DB25 إلى محطة الأسلاك Db25 لوحة الاختراق خالية من اللحام (محول ذكر مع حافظة)

KWD 4.500
ماركة
Twinkle Bay
وزن
71 g
– 1 +

مميزات خاصة

  • Case can be prevent short circuits
  • All-copper base, contacted better and more antioxidative

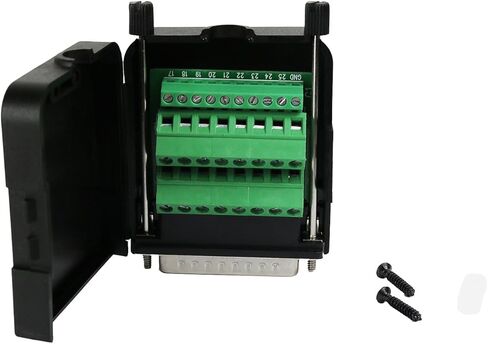

  • All signal ports named and labeled clearly
  • High quality PCB carrier, FR-4 fiber glass PCB.
  • Compliant assembly, quality multiple checked before fulfilled.

وصف

Net weight: 70g/2.47oz
PCB dimensions(L x W): 1.9 x 2''/49 x 53mm
External dimension (L x W x H): 2.4 x 2.2 x 0.9"/60 x 56.5 x 24mm
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.15''/3.81mm
Wire range: 18-24AWG
Rated current: 0.5A
Connect type: Male with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Case: ABS+PC

Package included:
1 x DB25 breakout board male adapter with case
1x Nylon cable pressing plate
2x Screws
2x Long bolts
