FEATURES
- Compliant with PCIE Express Revision 3.0 and downstream with PCI Express Reivison 2.0
- Supports line rate of 8.0GT/s and 5.0GT/s per lane
- Supports communication and management function
- Integrated Aquantia AQrate PHY featuring NBASE-T technology
- Supports PHY specifications with 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T.
- On-chip high resolution cable analyzer for advanced cable diagnostics
- Energy Efficient Ethernet (EEE) Support
- Supports IEEE1588v2 Precision Time Protocol
- Support large send offload, Receive Side Scaling (RSS), Direct Cache Access (DCA) and Header checksum for increased network performance and lower host CPU utilization
- Supports IPv4, IPv6 and IPv6/UDP checksum offload
- Supports Jumbo frame (up to 16kbytes)
- Quality of Service (QoS)
- Supports up to eight traffic classes and Data Center Bridging (DCB)

Cabling Requirements:
Intel 10 Gigabit adapters

For 10GBASE-T on Category 6,Category6a,or Category 7 wiring, twisted 4-pair copper:
Category 6 wiring supports 55 meters max.
Category 6a wiring supports 100 meters max.
Category 7 wiring supports up to 100 meters
Intel 1 Gigabit adapters
For 1000BASE-T or 100BASE-TX.use Category 5 or Category5e wiring, twisted 4-pair copper:
Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification For more information on this specification.
Length is 100 meters max.
Category 3 wiring supports only 10Mbps

Package content

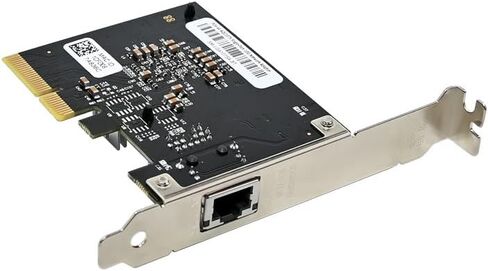

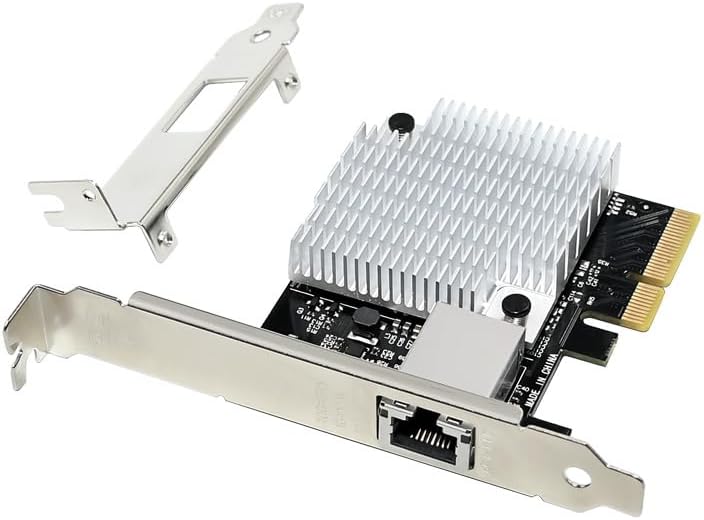

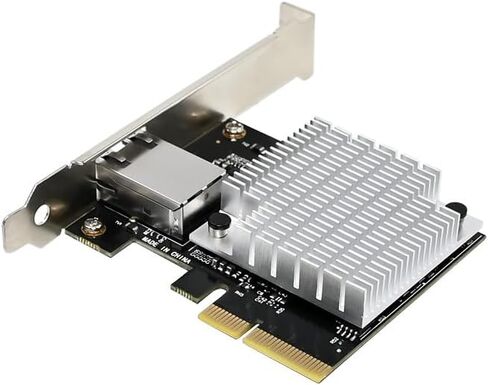

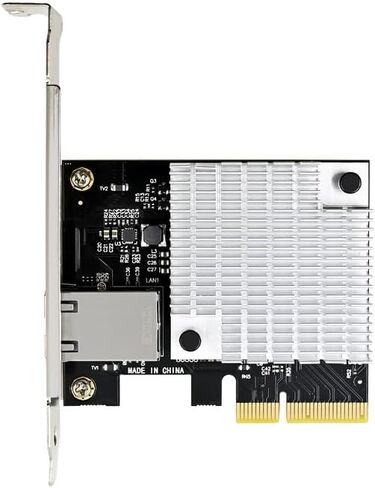

1x HINYSENO PCIe x4 AQC107S Single- 10G Server NIC
1 x User's Manual
1 x CD driver
1 x Low-profile bracket
