Specification:
Condition: 100% Brand new
Rated voltage230VAC 50/60Hz
Rated voltage1-63A adjustable(default 63A)/1-40A adjustable(default40A)
Overvoltage value range221V-300V-OFF adjustable(default 280V)
Overvoltage recovery voltage mediation range 220V-299V(default value 250V)
Overvoltage action time0.1s - 10s (default 0.1 seconds)
Undervoltage value range219V-150V-OFF adjustable(default 160V)
Undervoltage recovery voltage mediation range 151V-220V( default value 180V)
Undervoltage action time0.1s - 10s (default 0.1 seconds)
Overcurrent regulation range1-63A (default 63A)/1-40A(default40A)
Overcurrent action range0.1s -512s (default5.0 seconds)
Failure recovery delay time2s - 512s (default 60 seconds)
Power-on delay time2s - 255s (default 2 seconds)
Power consumption≤2W
Electrical mechanical life≥4000 times

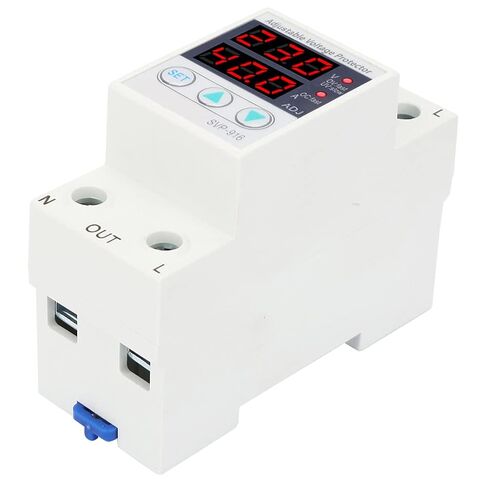

Installation methodDIN rail
Working environmentTemperature:-25℃ ~+40℃Humidity:
Size: Approx. 81 x 36 x 60mm / 3.2 x 1.4 x 2.4in
Optional : 40A, 63A

Package List:
1 x Protector

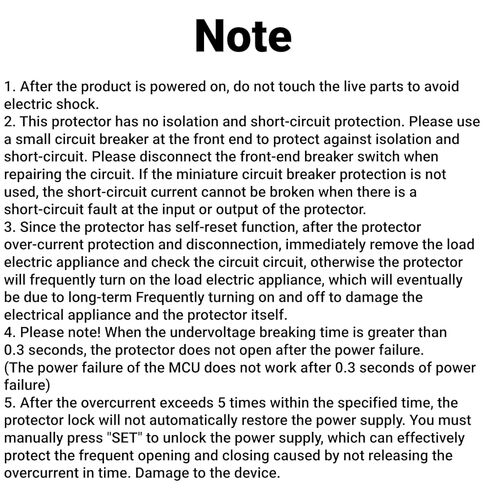

Note:
1. The line conductor should meet the relevant current standard value and the load current cannot be greater than the maximum current value of the protector.
2. The neutral line N cannot be connected incorrectly and needs to be secure. The zero line N of the protector is directly connected, and there is no disconnect function.
