محول SDI إلى HDMI مع حلقة SDI، محول HDMI SDI 1080P متوافق مع 3G-SDI/HD-SDI/SD-SDI، والكشف التلقائي عن التنسيقات وإزالة الصوت

KWD 15.500
اللون1080P SDI إلى HDMI
– 1 +

مميزات خاصة

  • 【SDI to HDMI】This SDI HDMI adapter is designed to convert 3G-SDI/HD-SDI/SD-SDI signals into HDMI signals to view on HDMI screens, auto format detection and audio & video synchronous display.

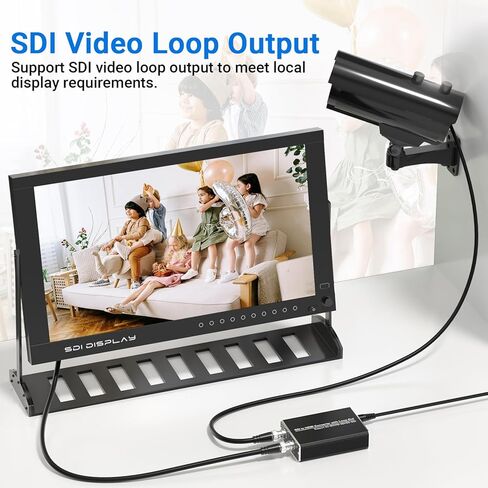

  • 【With SDI Loop out】This SDI to HDMI converter supports SDI loop out for local display.
  • 【Long Distance Transmission】It can convert SDI signals into HDMI signal and transmit it over long distance up to 300ft (3G-SDI)/500ft (HD-SDI)/1000ft (SD-SDI); SDI loop out cable length up to 300ft.
  • 【Compatible with 3G-SDI/HD-SDI/SD-SDI】SDI signals compatible with: 3G-SDI--1080p@60/59.94/50Hz(SMPTE 425M, Level A); HD-SDI--1080i@60/59.94/50Hz, 720P@60/59.94/50Hz; SD-SDI--NTSC@59.94Hz, PAL@50Hz. Bit rate supports: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270 Mbps
  • 【Compact & Easy to Use】Aluminum shell, great heat dissipation. Simple & easy to operate. No drivers needed, just plug & play.

وصف

Attention:
1. One way conversion, only converts SDI to HDMI, can not support HDMI to SDI.
2. Only supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
3. Does not support 6G/12G SDI.
4. If using with ATEM, please set ATEM to 720P@60Hz.

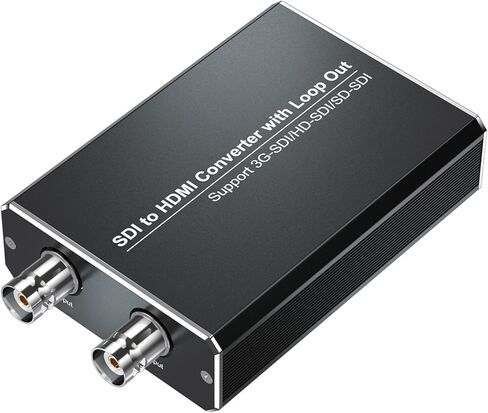

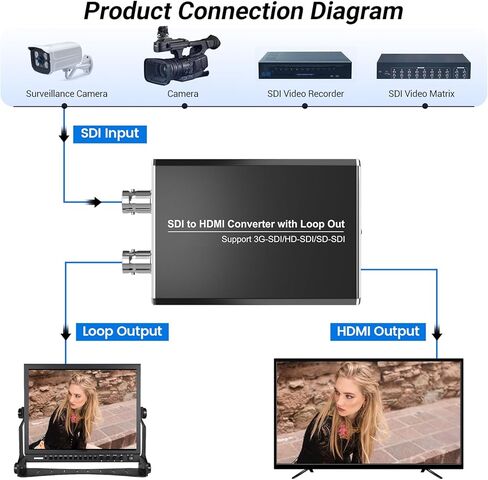

This SDI to HDMI converter is designed to convert 3G-SDI/HD-SDI/SD-SDI signals into HDMI to view on HDMI screens.
Our SDI HDMI adapter supports SDI loop out for local display.

Specifications:
1. Input: 1 x SDI
2. Output: 1 x HDMI Type A + 1 x SDI loop out
3. SDI Signal Format：SDI-SDI/HD-SDI/3G-SDI
4. SDI Input Resolutions: 480i, 576i, 720P@30Hz/50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/25Hz/ 30Hz/50Hz/60Hz
5. HDMI Output Resolutions: 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/ 25Hz/30Hz/ 50Hz/60Hz
6. Audio Input Signal: SDI embedded
7. SDI Data Rates: 270Mb/s, 1.485Gbps, 2.97Gbps
8. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
9. Power Supply: 5V/1A
10. Supports multiple cascaded

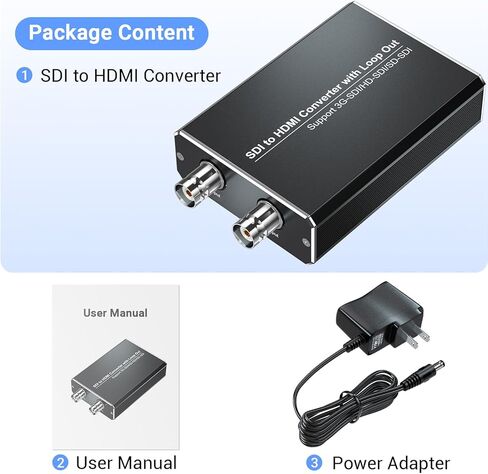

Package List:
1 x SDI to HDMI Converter
1 x Power Adapter
1 x User Manual
