Features:

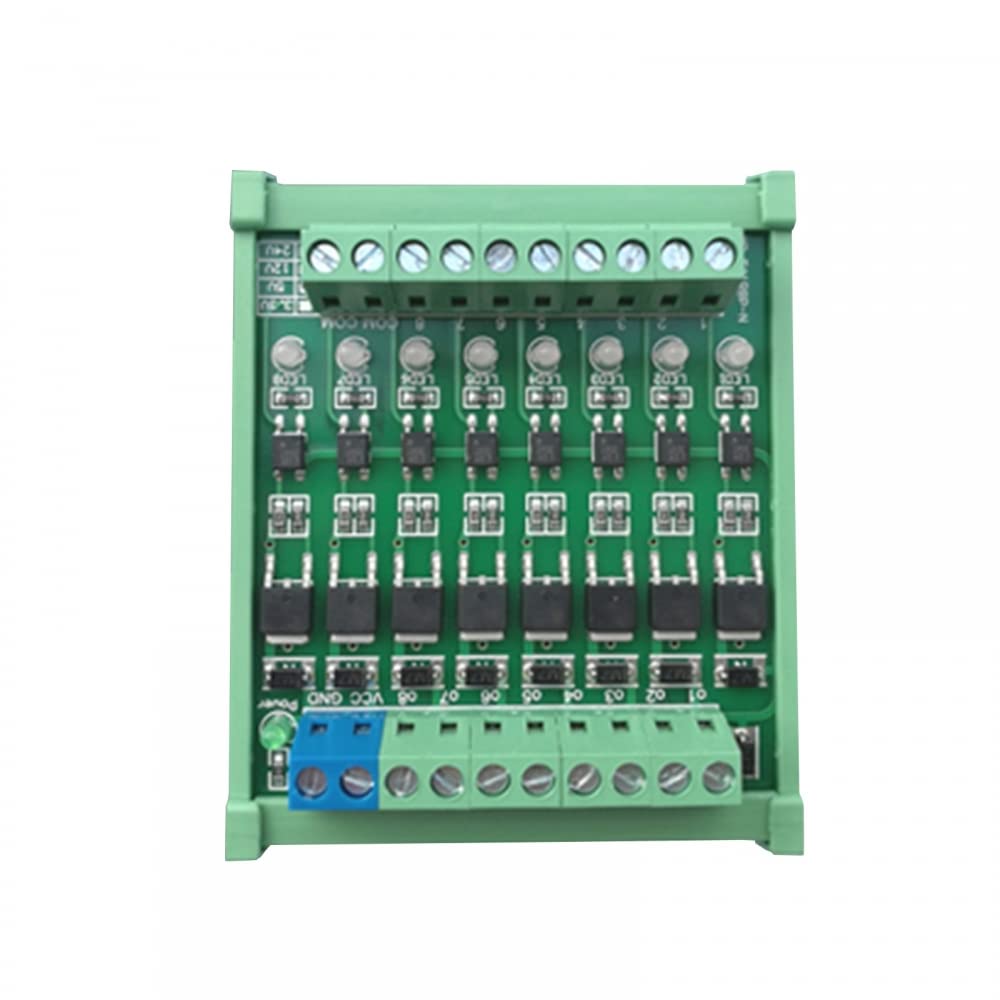

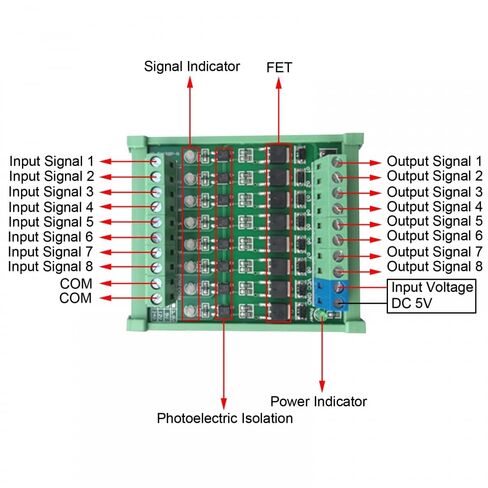

It is a 8-channel PLC amplifier circuit board.It is compatible with positive/negative input modes.Support independent output of each channel,the maximum output capacity can reach 30V,5A.
Specifications:
Input Voltage:DC 3.3V/DC 5V
Input Current:5mA-10mA
Output Current:5A(Max)
Output Voltage:DC 5V-24V
Output Type:non-contact type
Driving Element:P/N channel field effect transistor
Action Time:1ms (Max)
Reset Time:1ms(Max)
Switching Frequency:2000Hz(Max)
Output Property:NPN output
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size:87*47*39mm
Package List:
1 X 8-Channel PLC Amplifier Circuit Board
