PL2303 USB to UART (TTL) Serial Port Module for Windows Linux MAC OS with Type-C Connector Onboard Power Supply TXD RXD Indicators UART TTL Level Switch Compatible 3.3V/5V Logic Level

KWD 4.500
Brand
xicoolee
Weight
50 g
– 1 +

Special Features

  • This usb to uart module (SG-C2303-01C) is a high-performance USB-to-serial port module, which uses PL2303GS chip as the core, supports USB 2.0 standard, and can realize two-way data transmission between USB and serial ports. No need for additional drivers, just plug the module into the USB connector of the computer, it can be automatically recognized and started to use. It has the characteristics of plug and play, convenient and fast
  • The PL2303 USB to UART (TTL) Serial Port Module supports a variety of configuration options, including the setting of parameters such as baud rate, data bits, stop bits, parity bits, etc., to meet the requirements of different serial devices
  • The usb to ttl module provides rich flow control functions, such as hardware flow control (RTS/CTS) and software flow control (XON/XOFF), which can realize more reliable data transmission and communication control

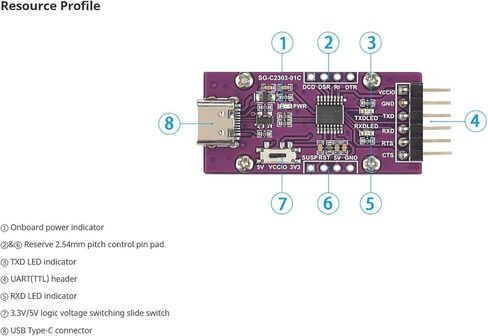

  • Onboard power supply, TXD, RXD indicators, used to indicate the use status. Onboard UART TTL level switching switch, which can be switched between 3.3V/5V conveniently and quickly. The hardware flow control pins CTS and RTS are derived to meet more applications
  • The PL2303 serial port module is compatible with a variety of operating systems, including Windows, Linux and Mac OS, and can be seamlessly connected with various mainstream computers and devices to provide stable and reliable serial communication

Description

Overview:

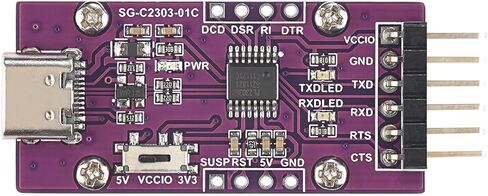

This USB to UART module (SG-C2303-01C) is a high-performance USB-to-serial port module, which uses PL2303GS chip as the core,
supports USB 2.0 standard, and can realize two-way data transmission between USB and serial ports.
The module is easy to use, stable and reliable, and is widely used in various electronic devices.
Users can communicate with other devices through these pins to realize the transmission and reception of information.
In addition, the product also supports a variety of operating systems, including Windows, Linux and MAC OS.
It provides a standard UART(TTL) interface, including TX (transmit) and RX (receive) lines, and also has CTS (clear to send) and RTS (request to send) lines for more flexible control of data flow.

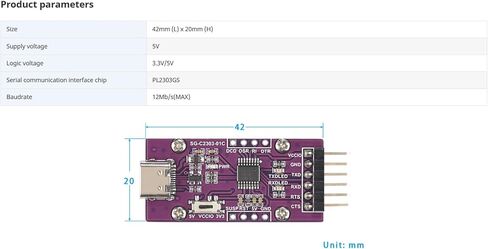

Product Parameters:
Size: 42.20mm(L)*20.32mm(W)
Supply voltage: 5V
Logic voltage: 3.3V/5V
Serial communication interface chip: PL2303GS
Baudrate: 12 Mb/s(MAX)

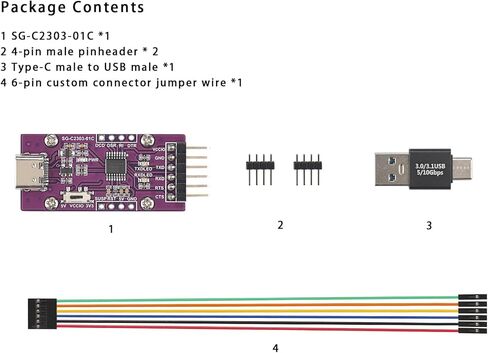

Package Contents:

1. SG-C2303-01C usb to uart module *1
2. Type-C male to USB male *1
3. 4-pin male pinheader *2
4. 6-pin custom connector jumper wire *1
