2.4 بوصة TFT LCD تعمل باللمس وحدة عرض الدرع 320x240 SPI Serial ILI9341 مع قلم لمس متوافق مع لوحة تطوير Arduino R3/Mega2560

KWD 5.500
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

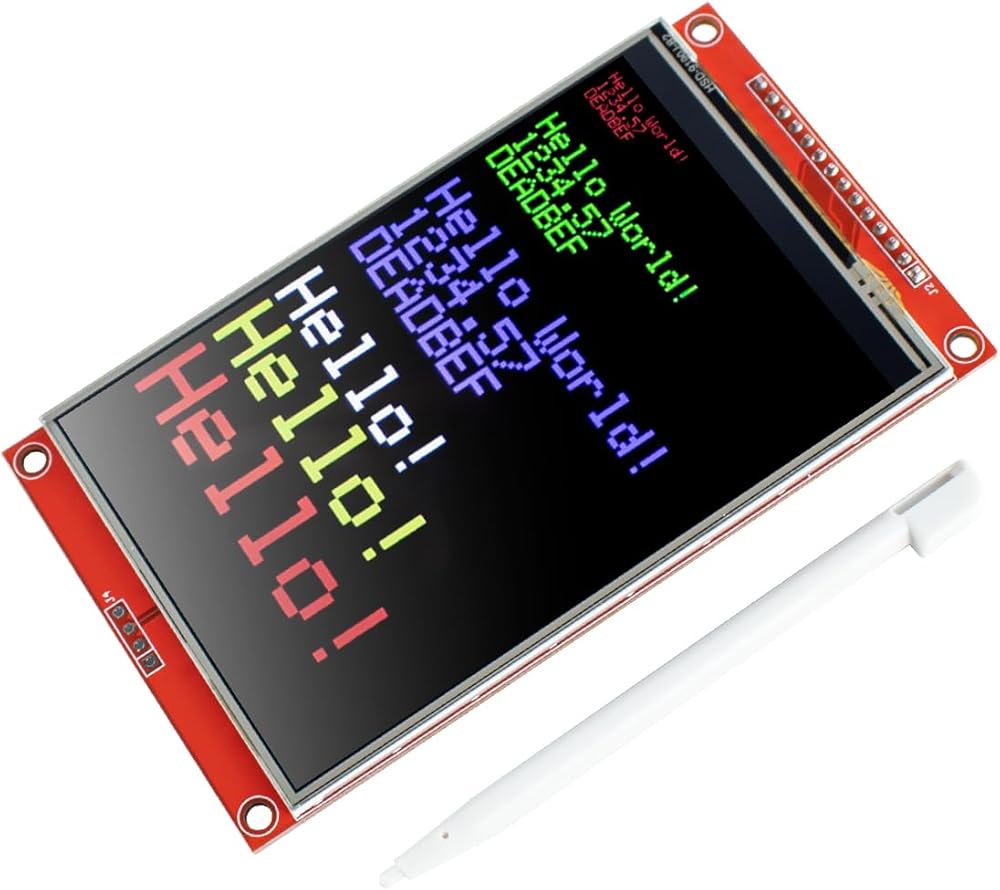

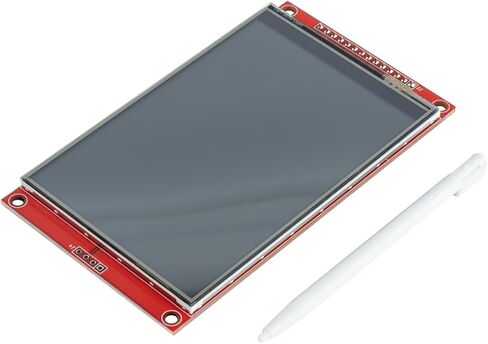

  • 4.0-inch color screen,support 65K color display,display rich colors, 480X320 resolution, with touch function.
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display.
  • Eeasy to expand the experiment with SD card slot and touch pen.
  • Compatible with Arduino R3/Nano/Mega controller boards, which will improve your project operation.
  • Provide a rich sample program and underlying driver technical support.

وصف

4.0-inch color screen,support 65K color display,display rich colors
480X320 resolution, optional touch function
Using the SPI serial bus, it only takes a few IOs to illuminate the display

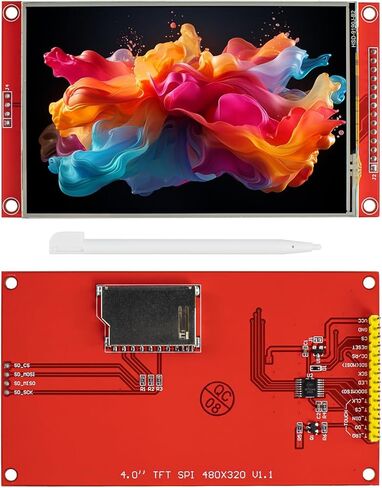

Easy to expand the experiment with SD card slot
Provide a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support

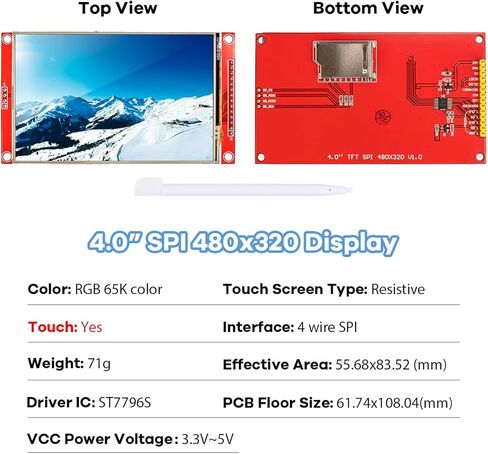

Display Color：RGB 65K color
SKUhave touch screen：MSP4022
have no touch screen：MSP4023
Screen Size：4.0(inch)
Screen Type：TFT
Driver IC：ST7796S
Resolution：480*320 (Pixel)

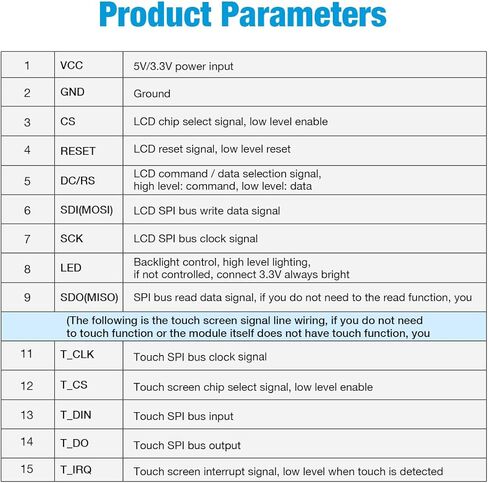

Module Interface：4-wire SPI interface
Active Area (AA area)：55.68x83.52 (mm)
Module PCB Size：61.74x108.04(mm)

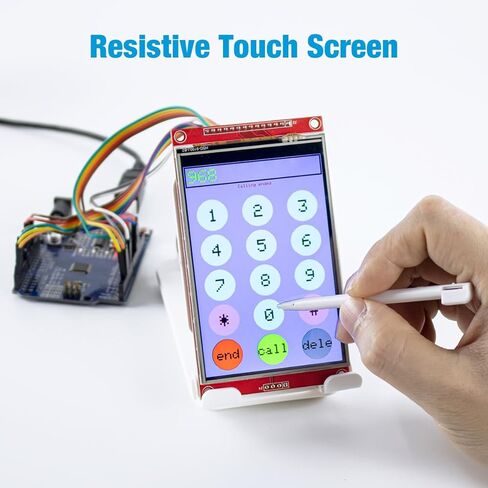

Touch Screen Type：resistive touch screen
Touch IC：XPT2046
VCC power voltage：3.3V~5V
Power Consumption：TBD
Rough Weight(Package containing)：71g

Package included:
1*4.0" SPI TFT LCD Display Touch Screen
1* Touch Pen
