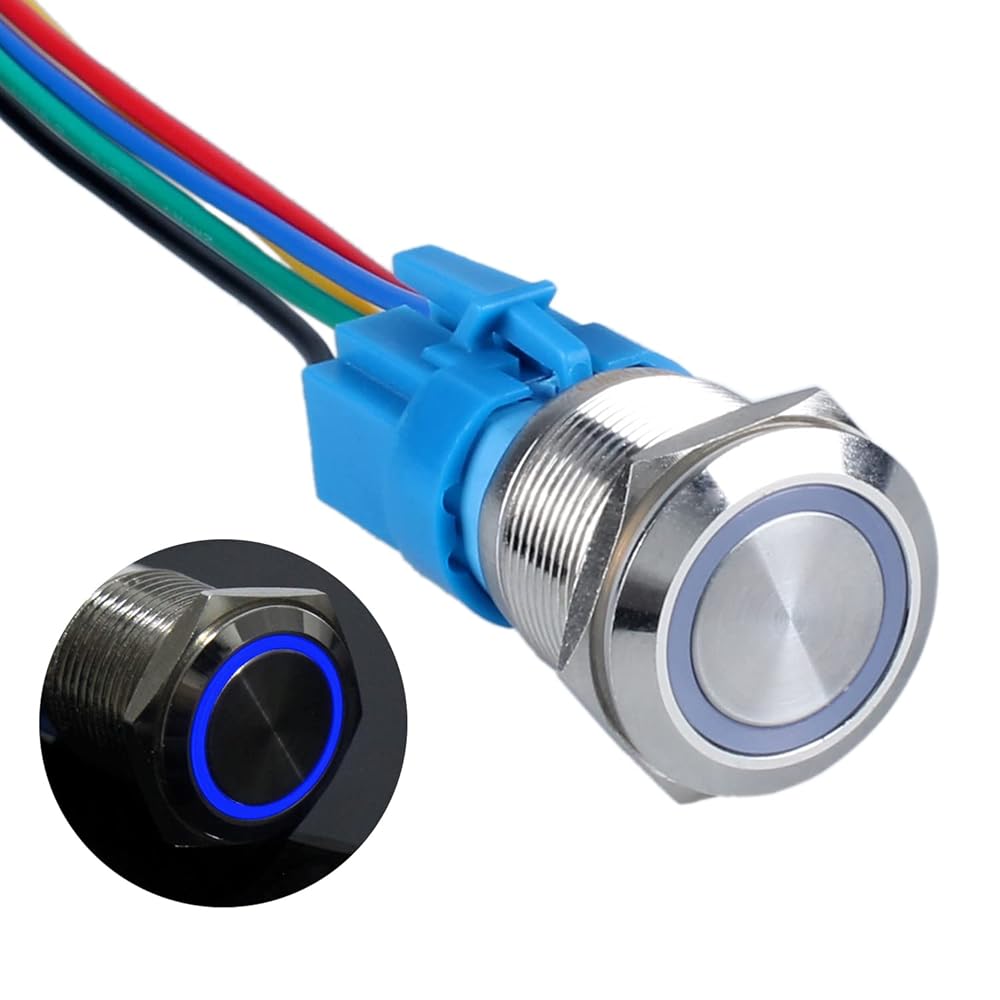

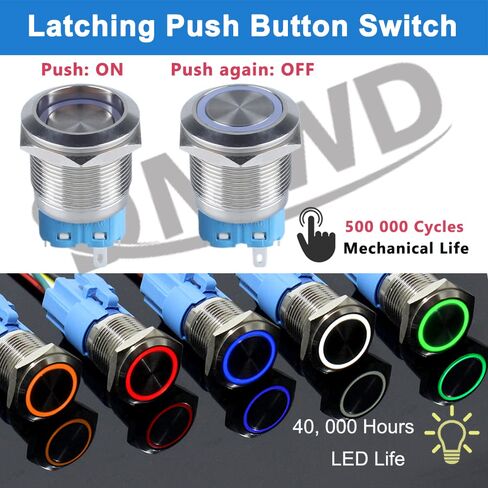

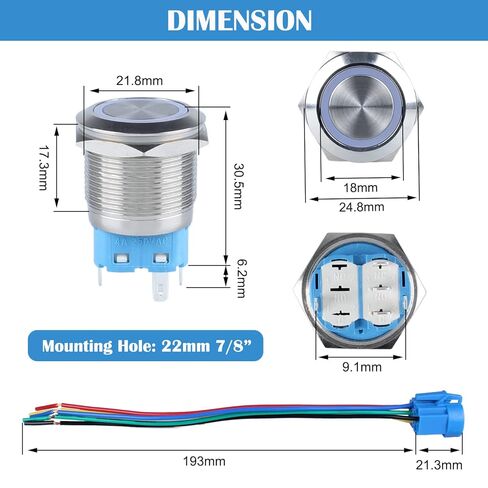

Mounting Hole Size:22MM(7/8'').LED Voltage:3A,12V-24V DC/AC.Latching Button Switch:Press the button--ON,Stay in position,Press the button again--OFF.Head Type:Flat Head.Contact Configuration:1NO 1NC.

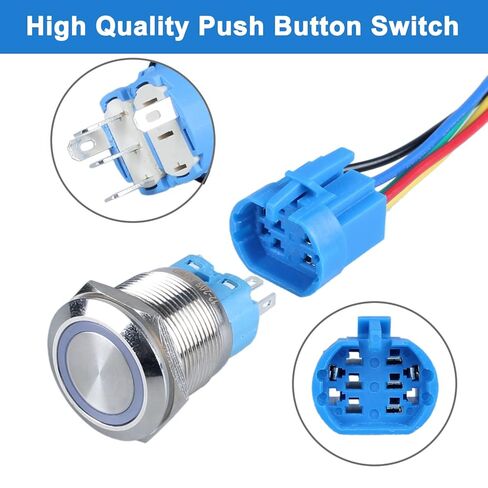

Terminal is connected to the wire socket plug.Don't need soldering.Makes your operation easier.
Different wiring methods,led light can be on all the time or only on when the device is working.

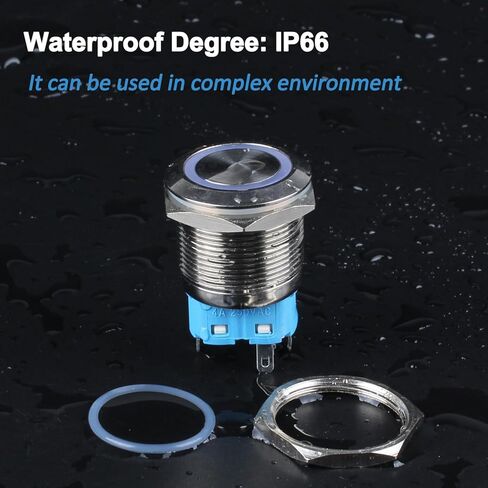

Protection Degree:IP66 and IK09.Waterproof and dustproof.Don't immerse the button switch in water.
Widely Applications: Latching metal button switch have a wide range of applications.Suitable for car,computer,instrument and meter industry,door bell,home appliance button,garage door opener and so on.
