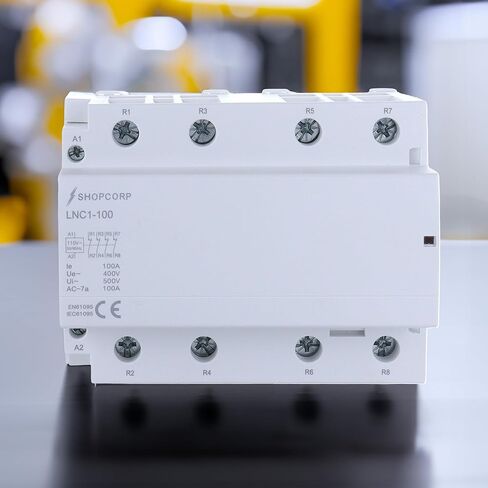

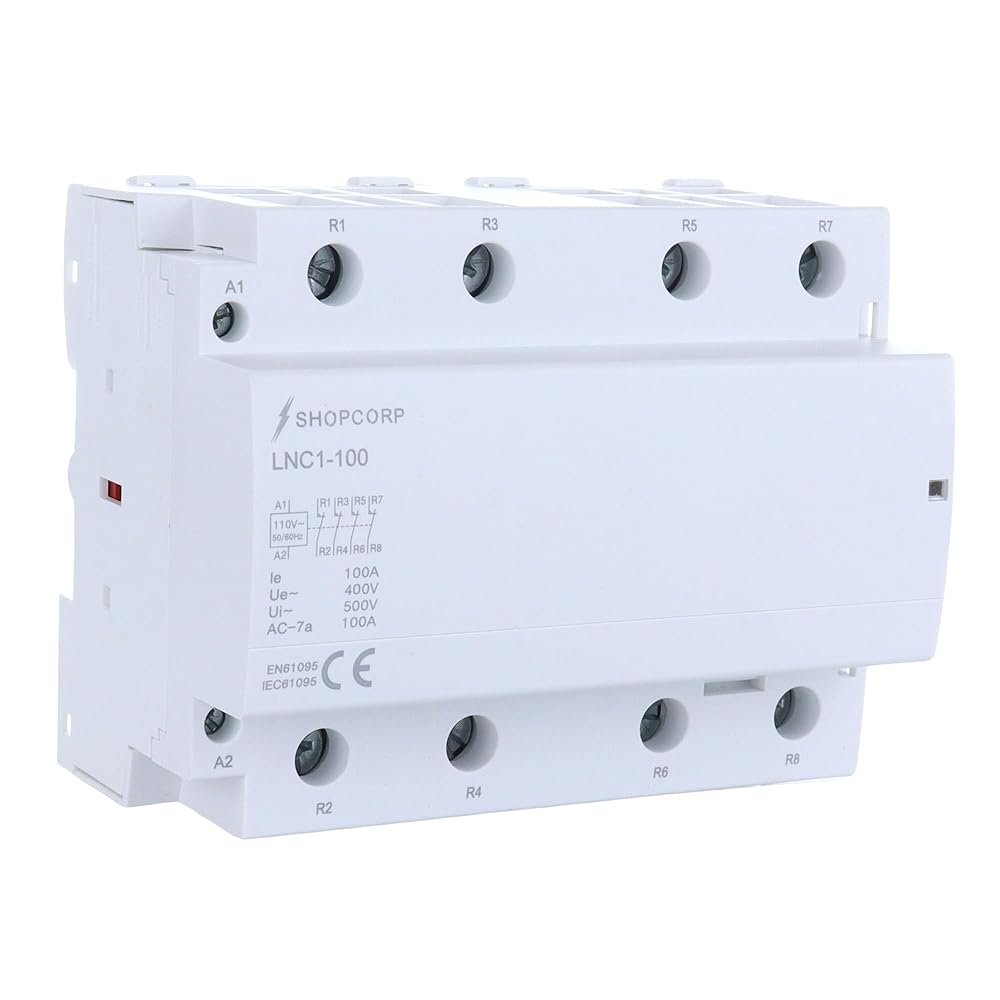

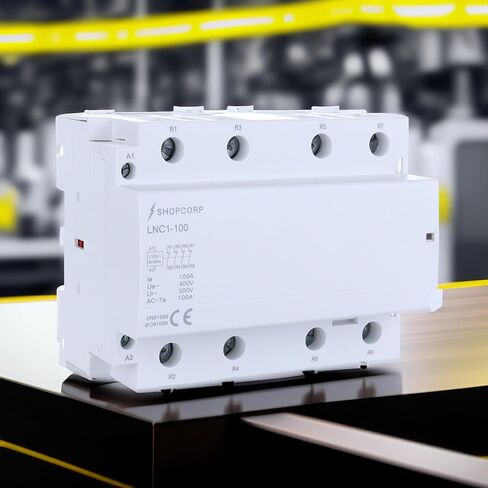

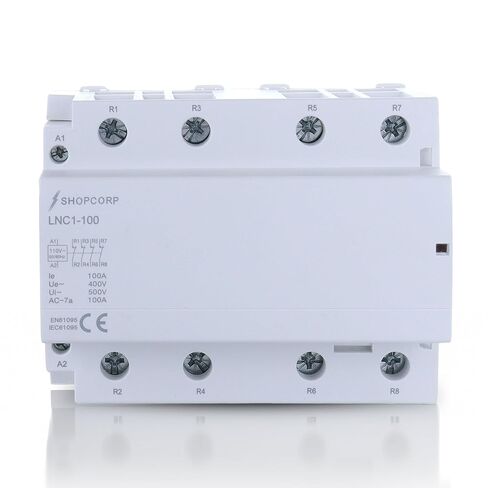

Contactor 120v coil – 100Amp 4 Pole Normally Closed (NC) AC contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Includes a steel zinc DIN rail (35 x 152.40 mm / 1.38 x 6 in) and two (2) 18-8 stainless steel #10 Phillips drive, truss head screws.
HVAC Parts Applications – Ideal for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Suitable for HVAC contactor. 24/120/220/277 V, with an energy saving, operates silently and efficiently without humming.
Coil Voltage and Amp Load – Voltage: AC 110/120V, 50/60Hz. Inductive/Motor Load: 60Amp. Resistive/Incandescent Load: 90Amp. AC Load: 30Amp @ 24VDC. Power Lug Terminal Capacity AWG # 2/0. Compatible with 15 Amp, 18 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp, 63 Amp, 80 Amp, 90 Amp and 100 Amp loads.

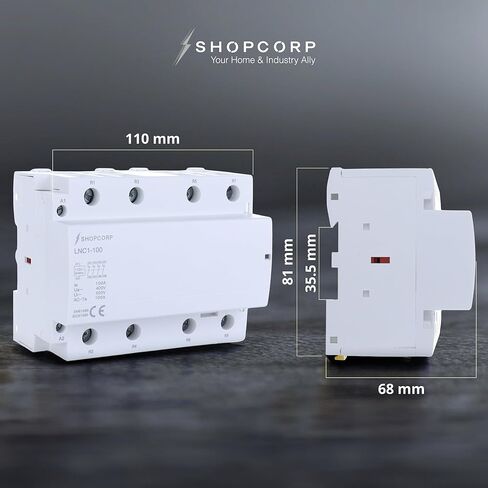

Contactor AC Dimensions (approx.) – 110 x 81 x 68 mm / 4.3'' x 3.1'' x 2.6'' (Width x Height x Depth). Slim model for easy DIN rail mount and installation.
About DIN Rail – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 35 mm (1.38 in), length 152.40 mm (6 in), and thickness 5 mm (0.2 in).
