10PCS KW4-3Z-3 Micro Switch KW4 Limit Switch 3pin 5A 125V Hinge Lever DC N/O N/C Switches for Mill CNC

KWD 3.500

Brand
LRONG
Weight
18 g
1 +

Special Features

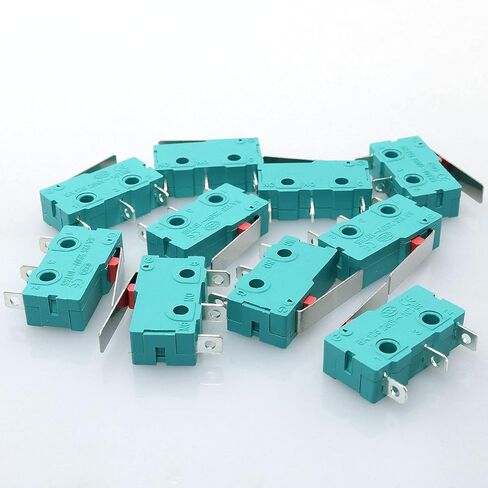

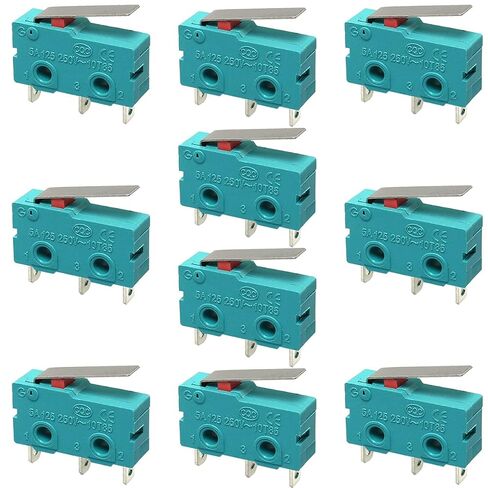

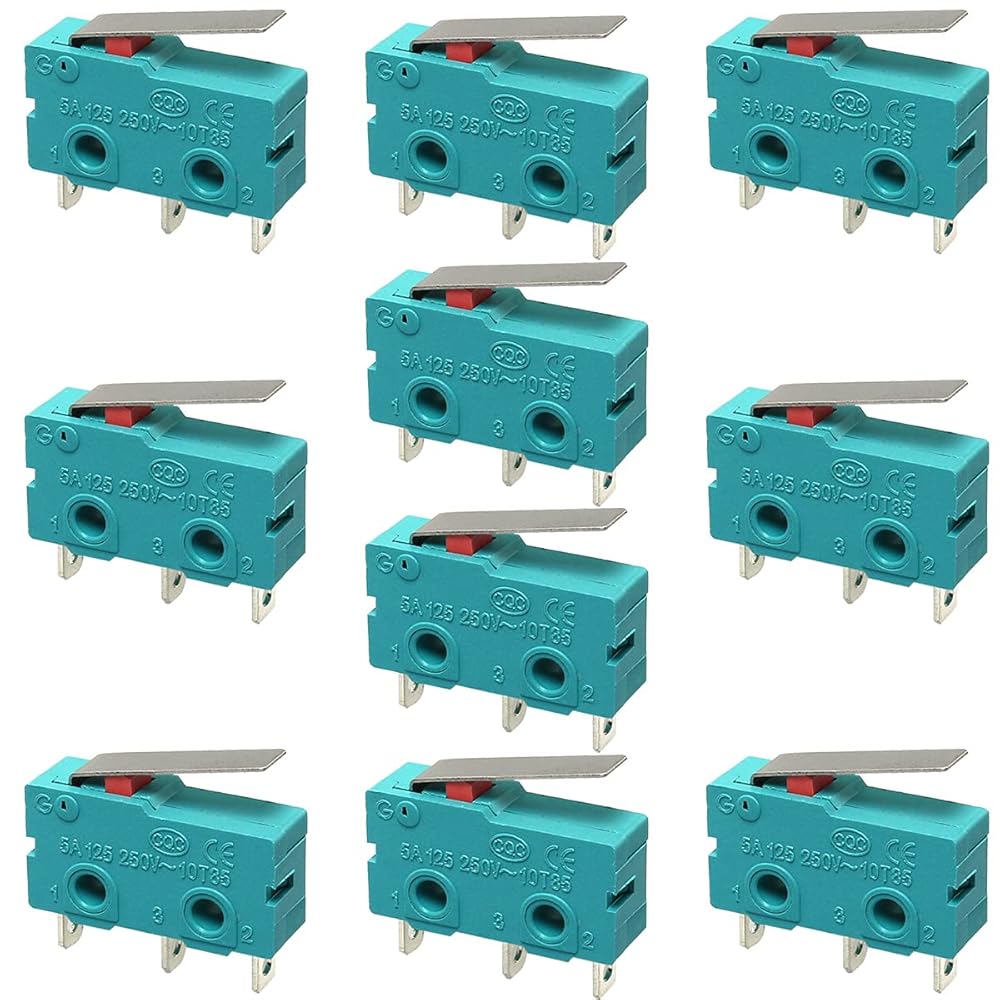

  • Package content: 10 micro limit switches to meet your needs.
  • Model: kw4-3z-3; Voltage and current: AC 125V / 250V 5A.

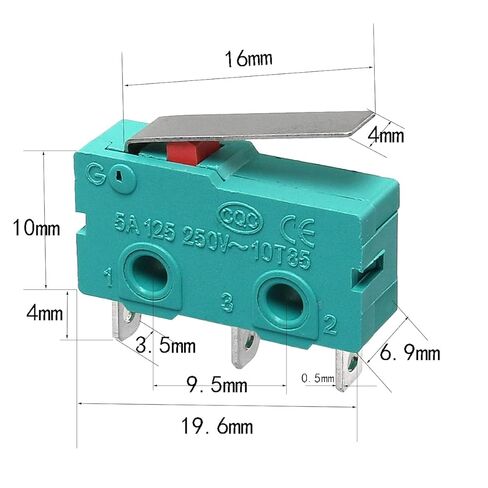

  • Switch body size: 2 x 1 x 0.7cm / 0.8
  • Kw4-3z-3 micro switch is suitable for AC control circuit and DC control circuit.
  • W4-3z-3 micro switch is used in various machines to control the position of moving parts of machines and factories.

Description

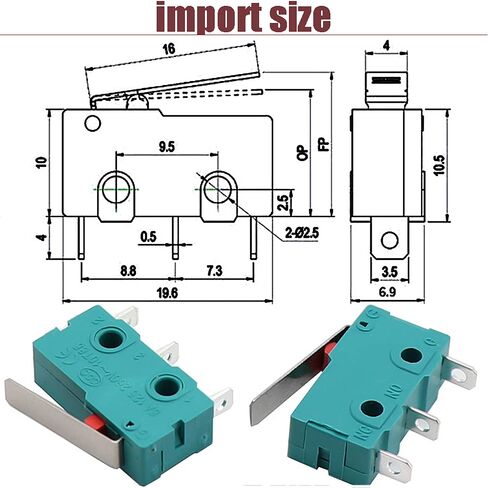

Product parameter Specification: Micro switch Model: KW4-3Z-3 Terminal: 3 terminals Weight: 2g Grade size: 20 x 4mm / 0.8 x 0.16 (L * W) Fixed hole diameter: 0.2cm / 0.08 Hole center point distance: 1cm /0.4 Switch body size: 2 x 1 x 0.7cm / 0.8 x 0.4 x 0.27 (L * W * H) Actuator function: instantaneous Actuator type: articulated rod Contact configuration: 1NO, 1NC (SPDT) Breaking capacity: high current type Breaking form: double type Protection performance: dustproof type Use environment: high temperature resistant type Rated voltage: 125/250(V) Rated current: 10.1A 10A 5(3)A( A) Mechanical life: 2,000,000 (ten thousand times) Product certification: UL CUL TUV CE VDE ROHS CQC Specification: 1. Rating: 3A/5A 250VAC T55 T85 5A 125/250VAC T120 Product parameter Specification: Micro switchModel: KW4-3Z-3 Type: Ordinary Weight: 2g Breaking capacity: high current typeBreaking form: double type Protection performance: dustproof type Use environment: high temperature resistant type Rated voltage: 125/250(V) Rated current: 10.1A 10A 5(3)A( A) Mechanical life: 2,000,000 (ten thousand times) Product certification: UL CUL TUV CE VDE ROHS CQC Specification: 1. Rating: 3A/5A 250VAC T55 T85 5A 125/250VAC T120 2. Contact R: 10m Max 3. Insulation R: 100M Min 4.Dielectric strength: 1500VAC, 1 Minute 5. Setting Temperature: -25 degree centigrade+ 120 degree centigrade 6. Electrical life: 100,000 Cycles 7. Machine Life: 1,000,000 Cyles 8. Operation Force: 0.2N2.5N
