Introduction:
100% Brand New and High Quality. It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Momentary switch with Two-Color LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 3-12V. It comes with the wire connector, you don't need to solder the terminals, make fitting very easy.

Widely Use
Widely used in various additional electric equipment, relay, computer, inside & outside the car or any circuit controls -- any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoor use.

Specification:
- Tail configuration: Connection terminal(2.8 X 0.5)
- Switch Rating: 5A/250VAC
- Contact resistance: ≤50mΩ
- Insulation resistance: ≥1000mΩ
- Dielectric intensity: 2000VAC
- Operation Temperature: -20℃ ~ +55℃
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Panel thickness: 1 - 10mm
- Operation pressure: About 3 - 5N
- Operation stroke: About 3mm
- Protection level: IP67, IK10
- Mounting Cut Hole: 16mm
- Head Diameter: 18mm
- Operation Type: Momentary
- Switch Contact: 1NO 1NC
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Power Indicator
- LED Color: Red and Green
- Contact Material: Silver alloy
- Button Material: Stainless Steel
- Socket Plug Length: 16cm/6.3"

Packing Include:

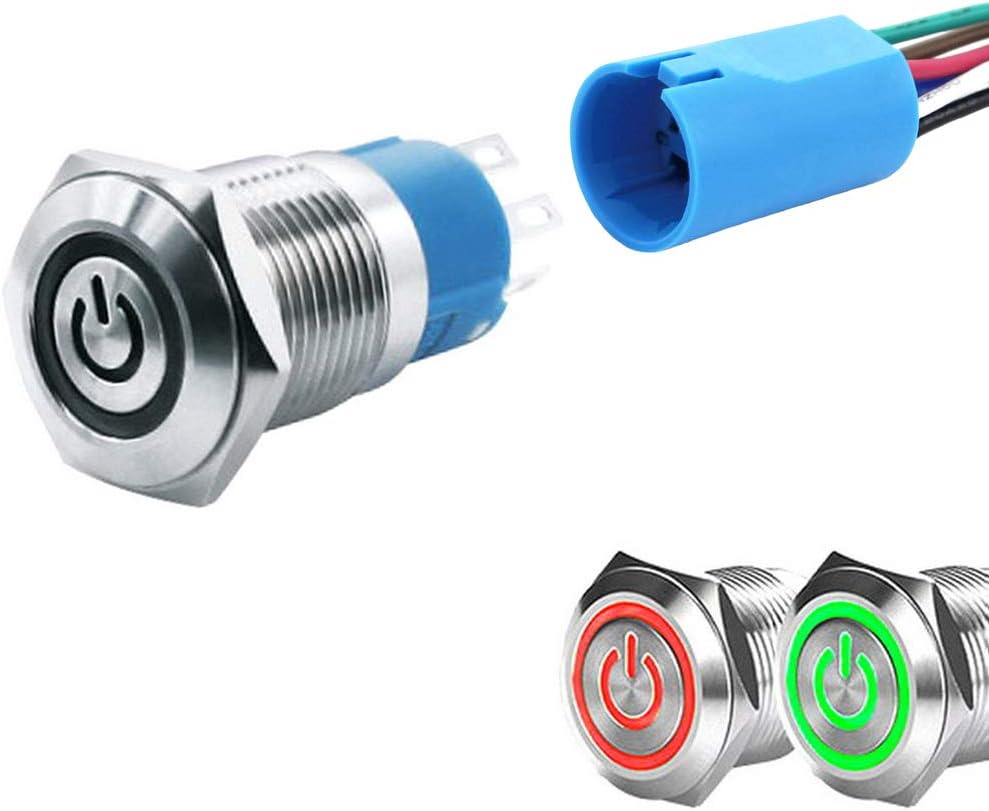

1 x push button switch(Two-colors LED)
1 x socket plug

Note:

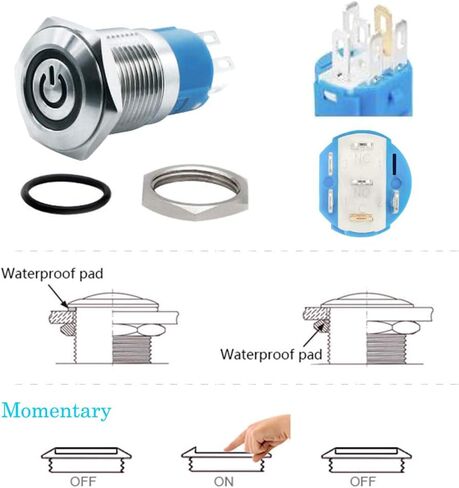

- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.
- Don't let current go above 5A, or the switch will get warm and to be burned out.
