TeSys IEC Contactors and Overload RelaysFor industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail or panel-mount.UL Listed, CSA and CE Certified.Overload RelaysFor 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.

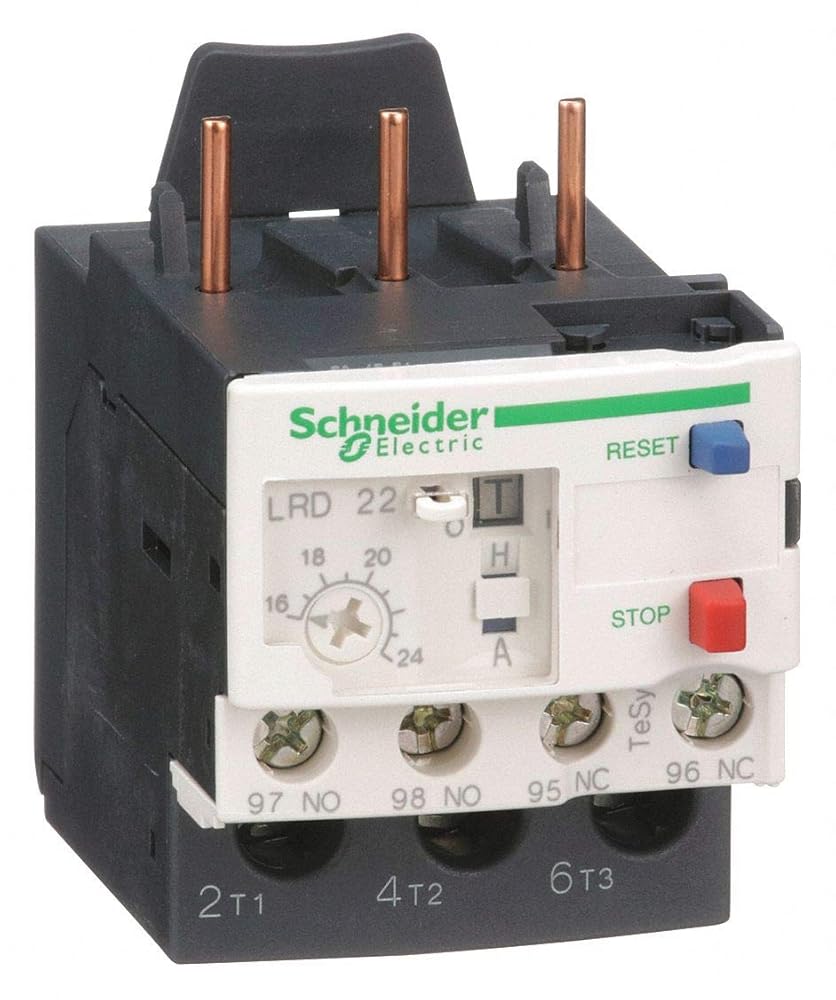

Item - Relay: IEC Style Overload Relay
Use With - Contactors and Starters: Mfr. Series LC1D25 to LC1D32 Contactors
Overload Relay Current Range: 16.0 to 24.0A
Trip Class - Overload: 10
Number of Poles: 3
Reset Type - Relay: Manual
Body Height - Relay: 3.62"
Body Width - Relay: 1.77"
Body Depth - Relay: 2.75"
Overall Height - Relay: 3.62"
Sensing Method: Bimetallic
Features: Single Phase Sensitivity, Differential
Standards: UL, CSA, ATEX D 94/9/CE, GOST
