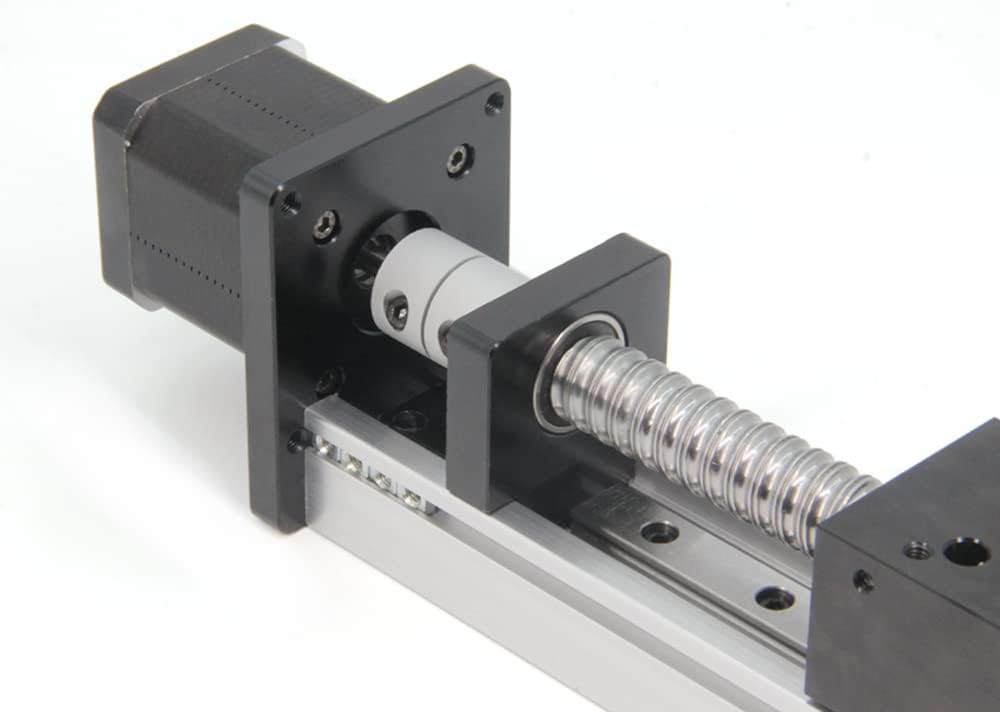

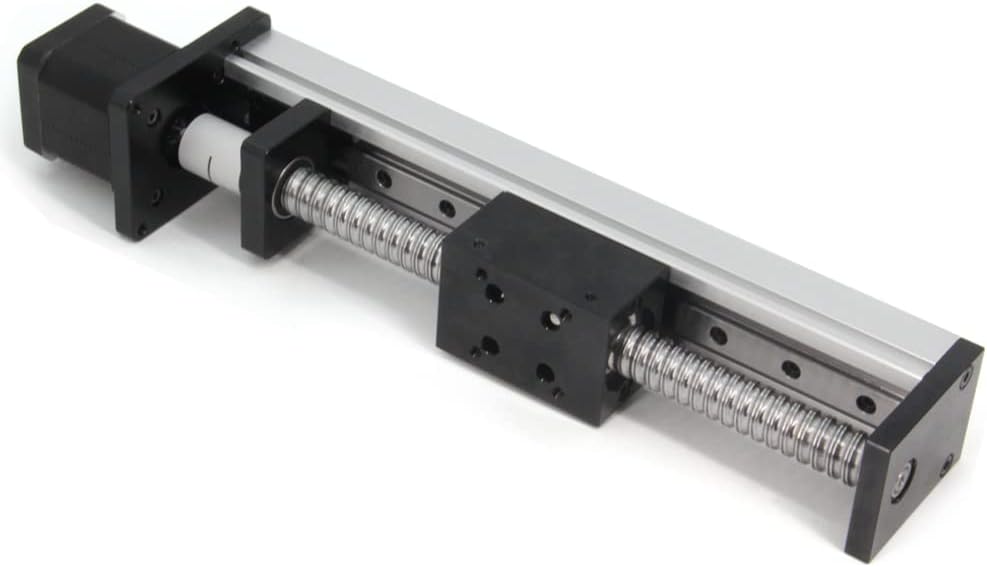

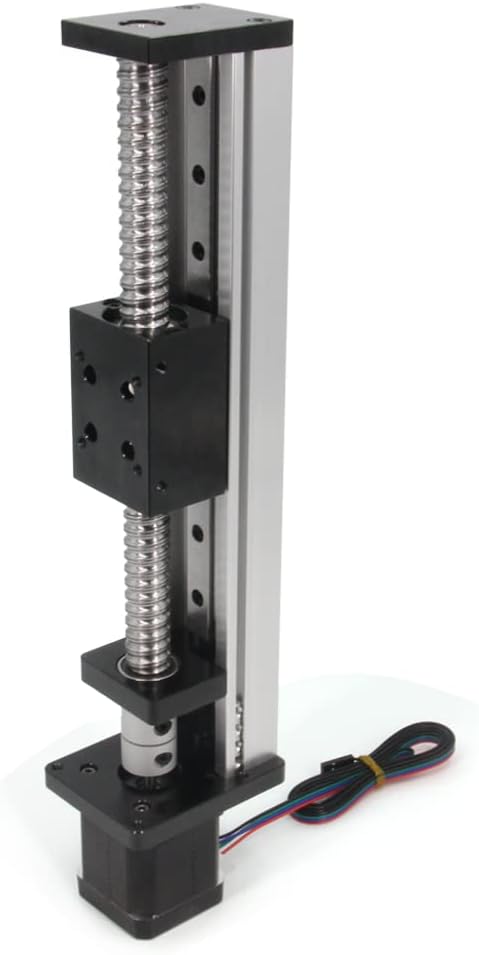

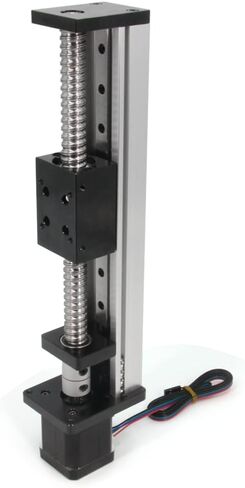

Product Name: 100mm Effective Stroke Length Linear Rail Guide with Square Linear Rails Ballscrew SFU1605 with Nema 17 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator
Tips: Make sure you have the drive and controller, no drive and controller stepper motor will not work
Linear Stage Actuator Parameter:

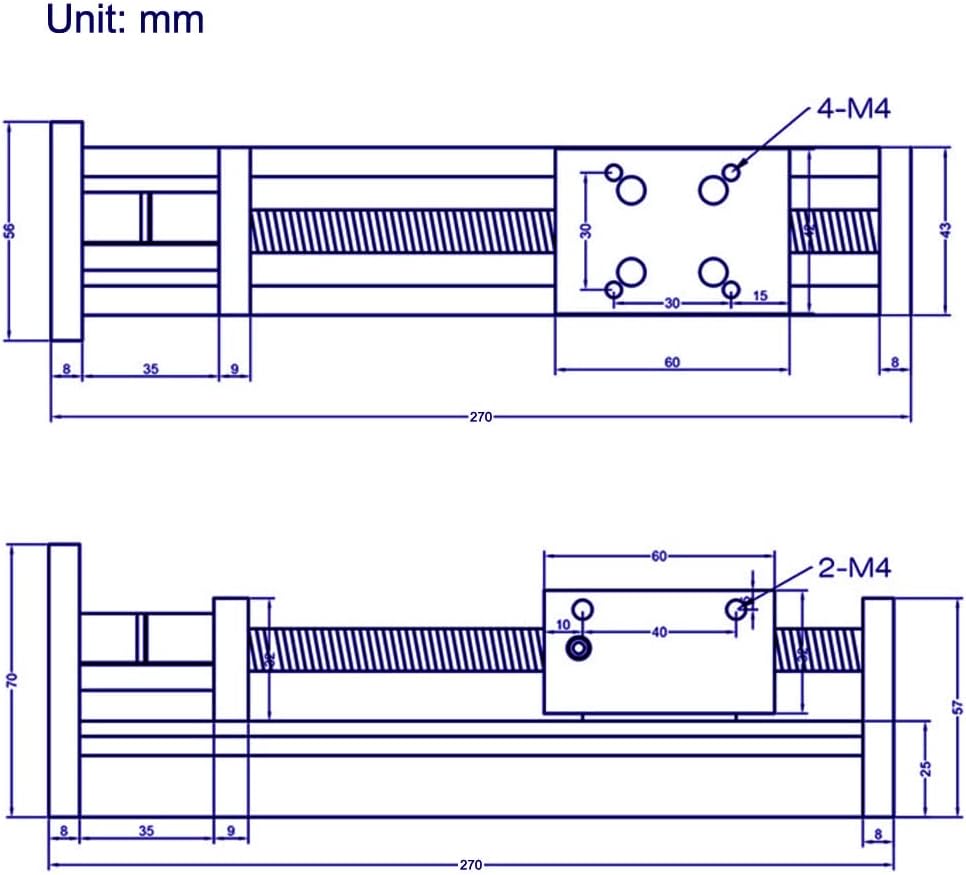

Effective Travel Length: 100mm
Total length: 265mm
Type: linear system moulde
Ballscrew Type: SFU1605; Diameter:16mm, Pitch of Screw: 5mm
Level ballscrew: C7
Weight:about 1415g
Stepper motor Parameter:
Step angle: 1.8 degree
Motor voltage: DC 24V
Motor flange size: 42mm
Motor length: 47mm
Holding torque: 1.2N.cm
Current: 1.5A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 87.3g.cm
Lead wire: 4pcs
Wiring:
Black: A+
Green: A-
Red: B+
Blue: B-
Widely used for DIY CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
Package Included:

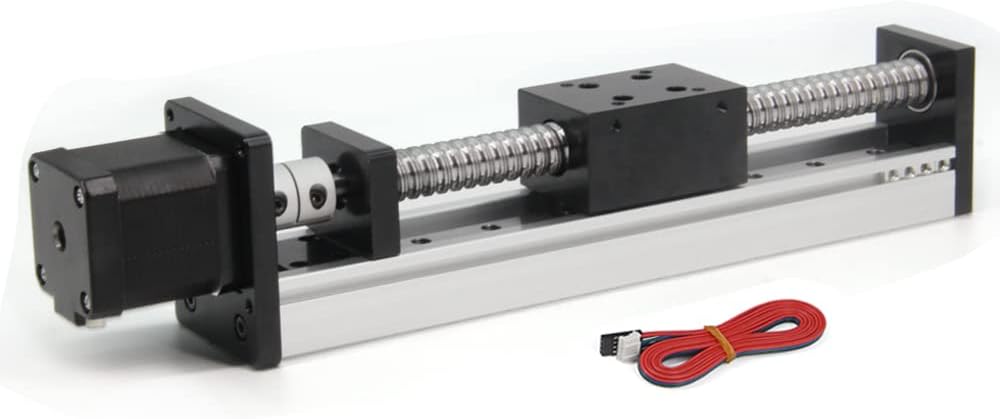

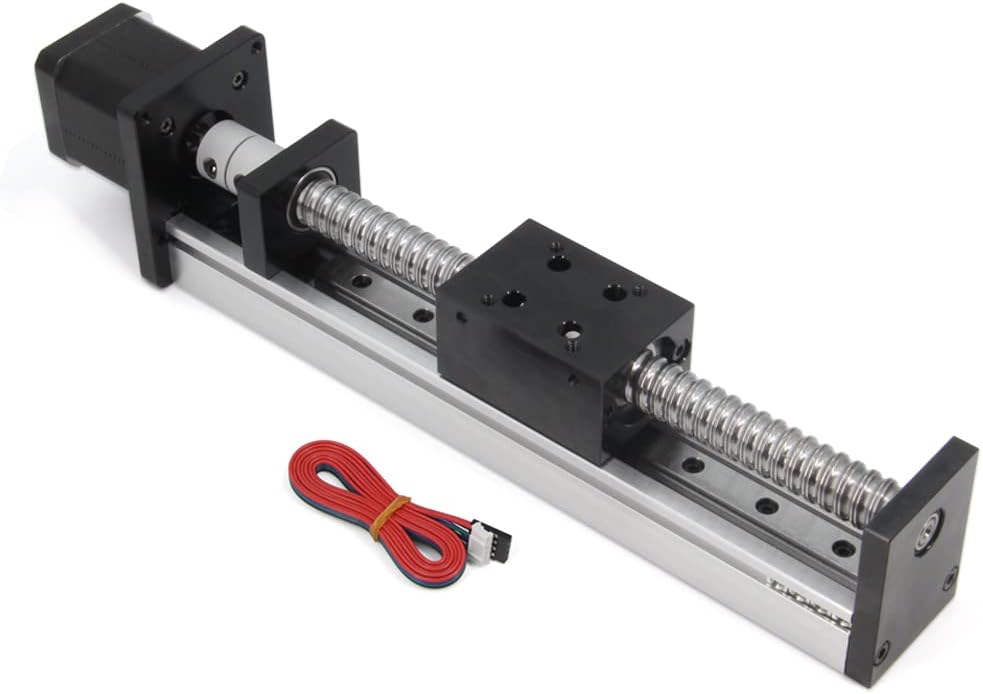

1Kit Linear Stage Actuator with NEMA17 Stepper Motor
1pcs Stepper Motor Cable
Please Note:
Any question or problem, do not hesitate to contact us, we will reply you within 24 hours
As Manual measurement, please allow slight errors on size
The color may exist slight difference due to different screen displays
