Flipsky Antispark Switch Pro with Aluminum PCB V3.0 200A for Electric Skateboard/EBike/Scooter/Robots(with Heatsink)

KWD 16.500
Brand
FLIPSKY
– 1 +

Special Features

  • High Side Switching : Much safer to use with multiple ESCs and other devices.
  • Roll-to-start. Has 12 second blanking timer after turn off. Can still be turned on by switch during this period.
  • Auto-turn-off. Will turn off automatically after 20 minutes. The output voltage must vary by at least 500mV within any three second interval to reset the turn-off timer.

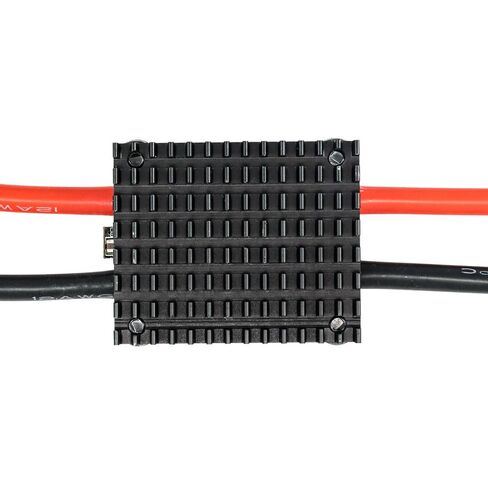

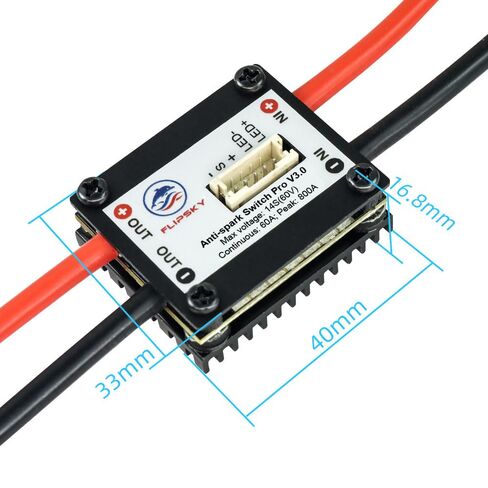

  • Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire)
  • Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current)
  • Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.

Description

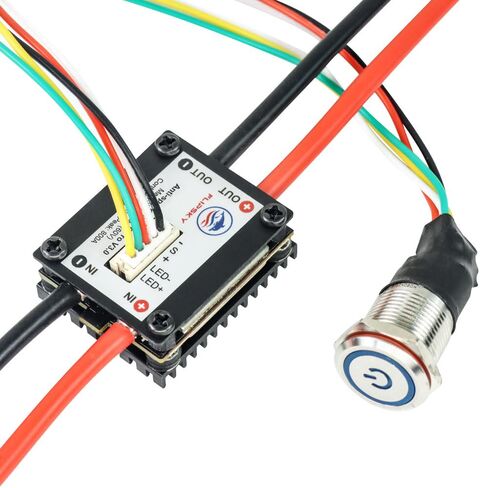

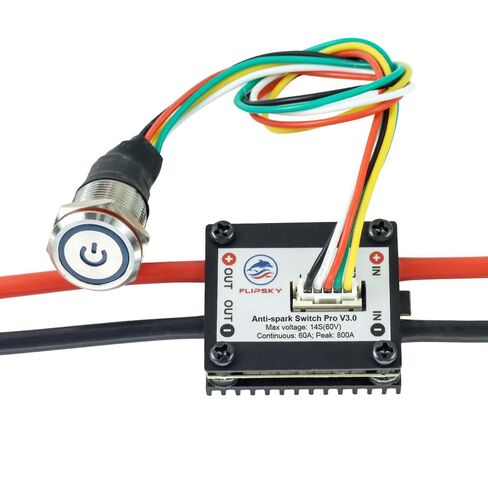

Specs: V3.0 Mosfets:HYG015N10NS1TA LED button diameter: 16mm Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current) PCB thickness: 6 layer*3oz copper=18oz copper Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire) With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire) Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
