محمل أسطواني بإبرة دائرية من uxcell NK12/12، تجويف 12 مم، 19 مم OD، عرض 12 مم 6400N تحميل ثابت 6050N تحميل ديناميكي 25000 دورة في الدقيقة تحديد السرعة 5 قطع

KWD 5.500
– 1 +

مميزات خاصة

  • Model: NK12/12 (I.D. (Fw)=12mm, O.D. (D)=19mm, Width (C)=12mm)
  • With no inner ring, accommodate axial displacement
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties

وصف

Specification:
Model: NK12/12

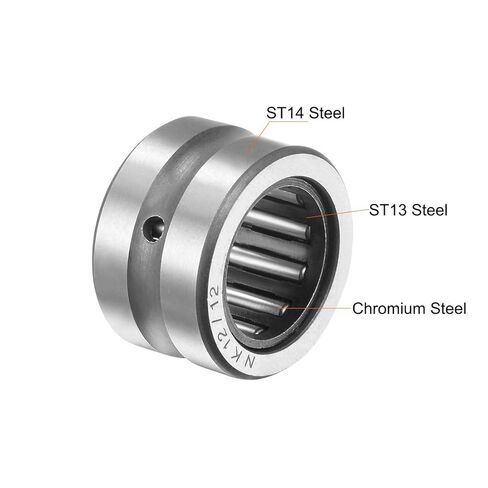

Inner and Outer Ring Material: Chromium Steel (GCr15)
Cage Material: ST13 Steel
Needle Roller Material: Chromium Steel (GCr15)

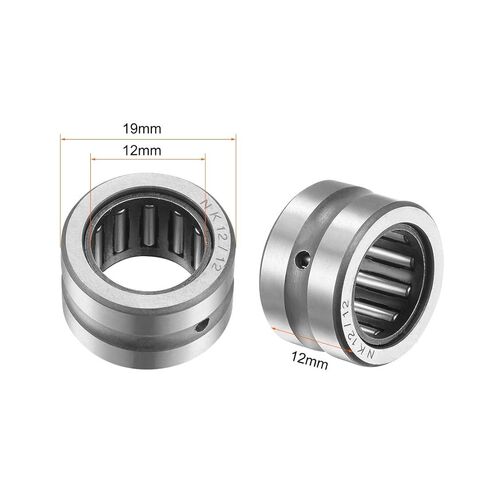

Bore Diameter (d): 12mm
Outside Diameter (D): 19mm
Width (B): 12mm
Static Load Capacity (Cor): 6400N
Dynamic Load Capacity (Cr): 6050N
Maximum Rotational Speed (Oil): 25000rpm

Package Content:

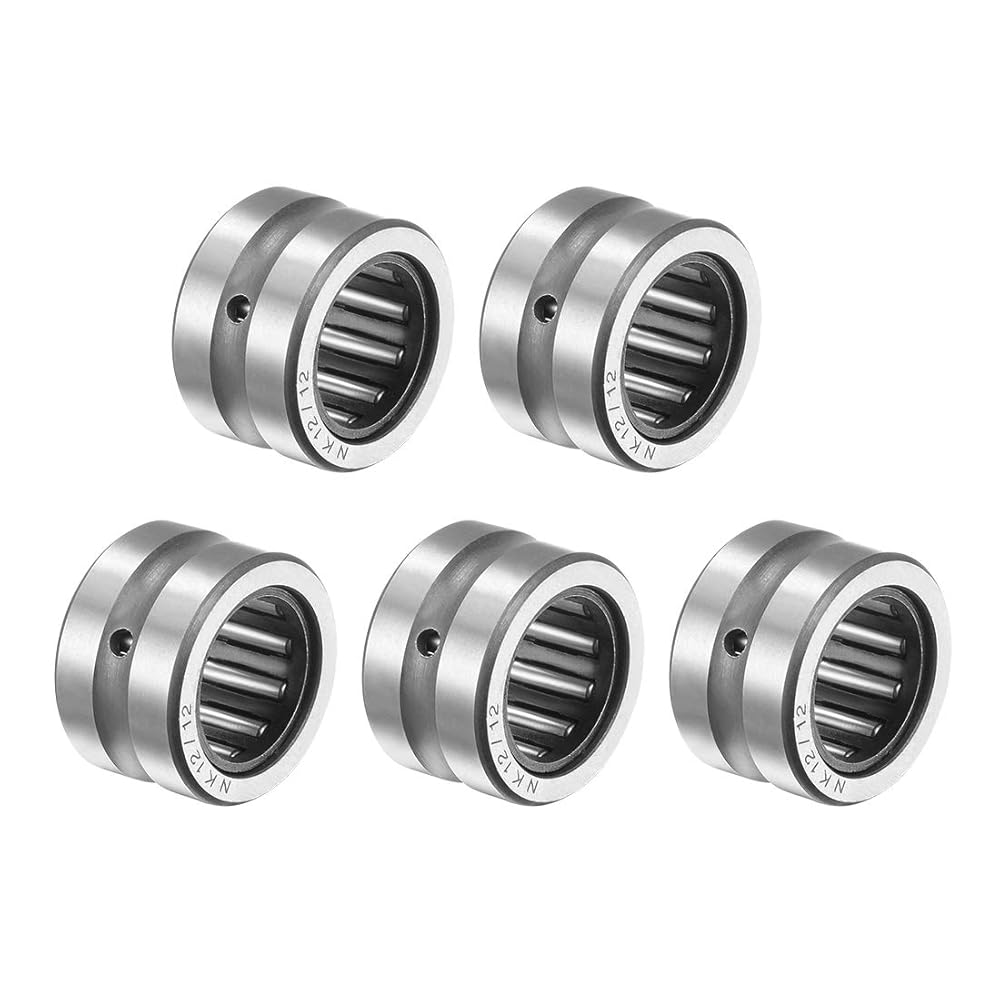

5 x Needle Roller Bearing

Description:
-Needle Roller Bearings with Machined Rings are bearings with high load carrying capacity and stiffness.
-These bearings are especially suitable for high dynamic loads or radial-limited installation.
-Assembling inner and outer rings separately permits interference fits for shaft and housing.
-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.
