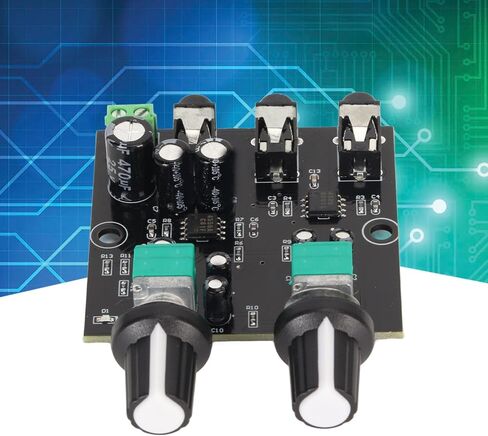

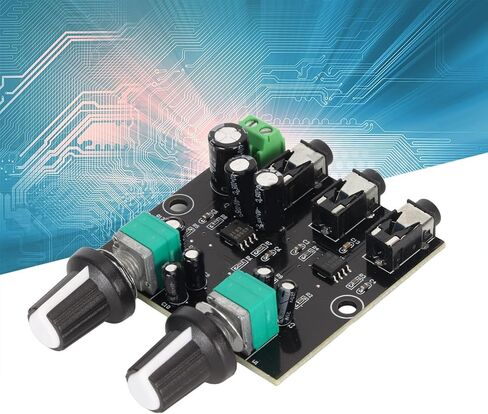

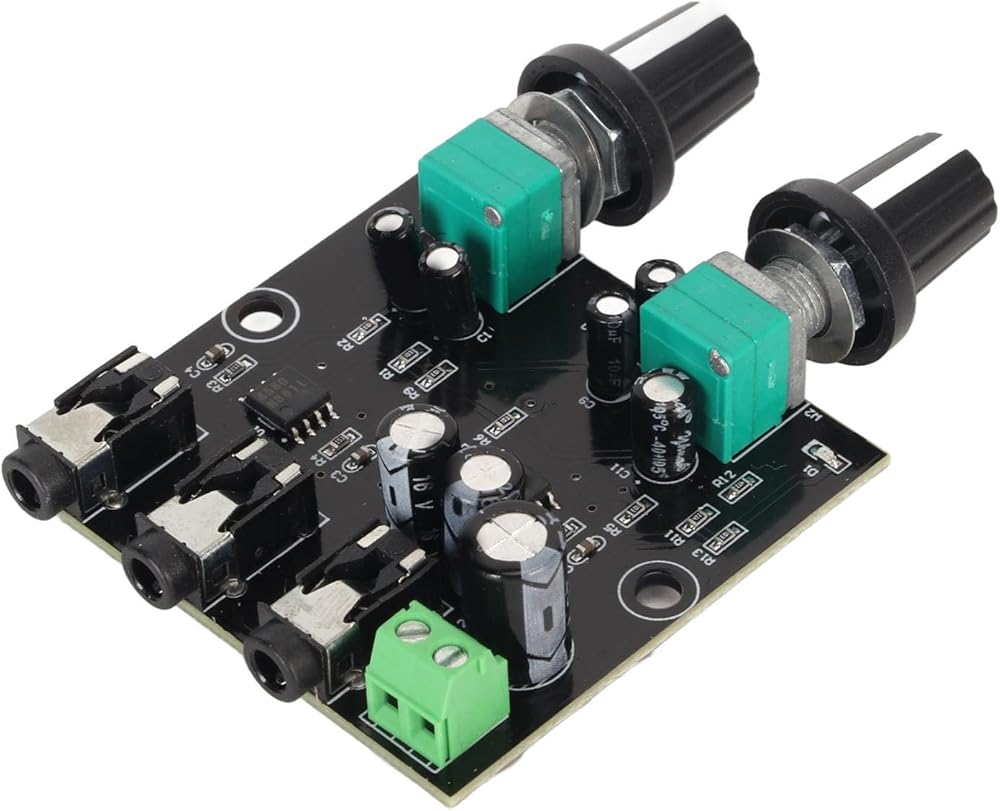

Stereo Sound Mixer Board Module, Driving Headphone Power Amplifer, Mixing Board 2 Inputs and 1 Output. DC5V-12V

KWD 7.500
Brand
Zopsc
Category
DJ Equipment
Weight
31 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • USE NOTE: Stereo sound mixing board module is easy to use, please use low ripple power supply, sound cable please use shielded wire.

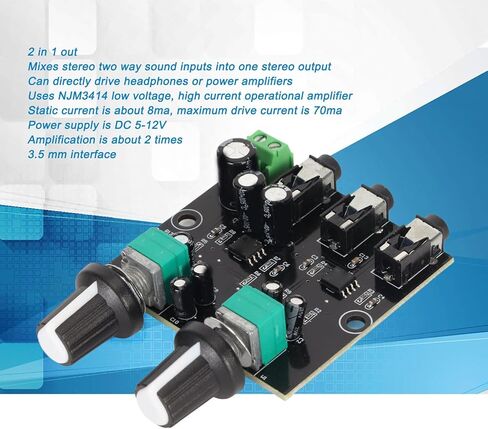

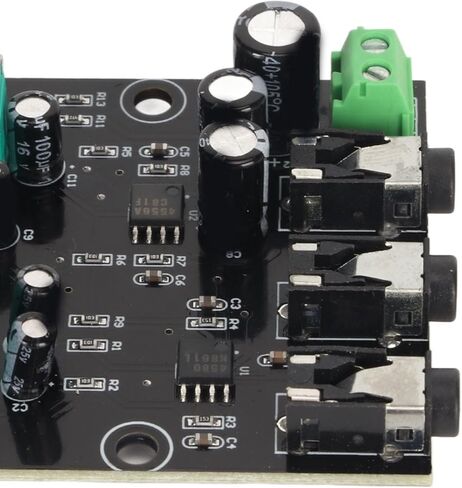

  • AMPLIFIER: Stereo sound mixer board module uses the NJM3414 low voltage, high current operational amplifier. The power supply is DC 5‑12V, and the amplification is about 2 times.
  • CURRENT: The quiescent current is about 8ma, and the maximum drive current is 70ma, which can easily drive various headphones and external amplifiers.

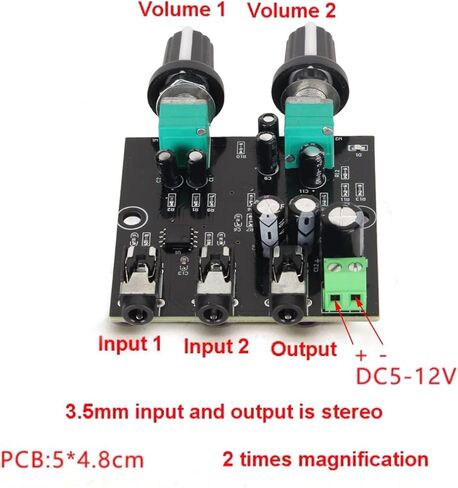

  • 2 IN 1 OUT: Stereo sound mixer board module mixes stereo two way sound inputs into one stereo output, which can directly drive headphones or power amplifiers.

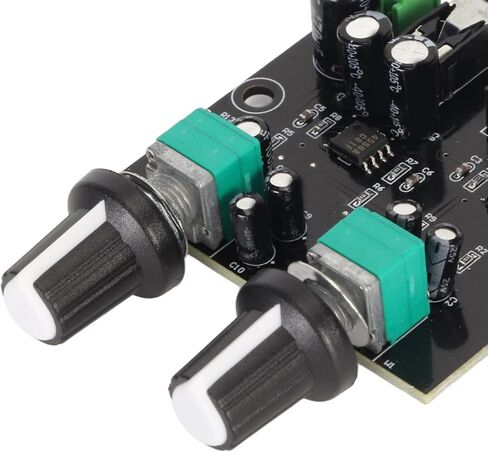

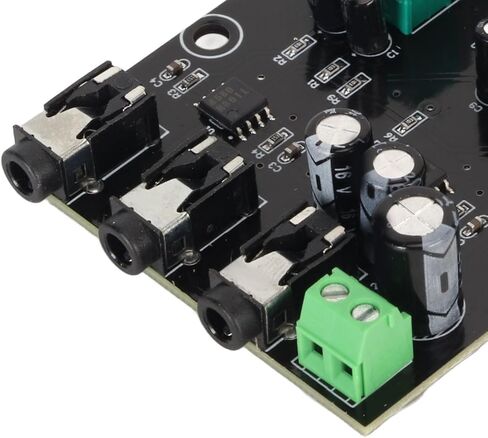

  • 3.5MM INTERFACE: Sound mixing board module has a 3.5mm headphone interface, which can directly drive headphones or connect to an amplifier. Potentiometers control the volume of each channel separately and do not affect each other.

Description

Spec:
Item Type: Stereo Sound Mixer Board Module
Product Material: PCB

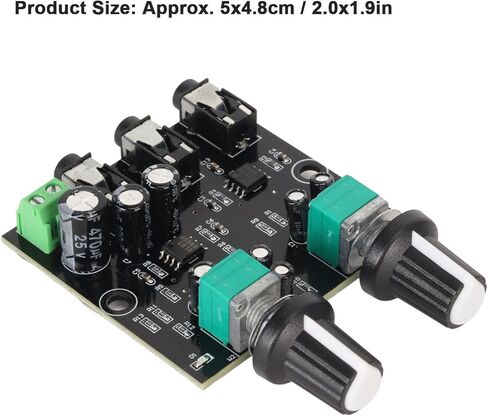

Product Size: Approx. 5x4.8cm / 2.0x1.9in
Power Supply: DC 5‑12V
Magnification: About 2 Times
Static Current: About 8ma

How to Use:
Remove the product and use it

packing list:
1 x Stereo Sound Mixer Board Module

Note:
All data are measured manually, and there are certain errors in the measurement results.
