مميزات خاصة

Made of stainless steel 304, heavy duty, durable and corrosion resistance.
Suitabal medium: Water, oil, air and some corrosive liquid.
Coupler connects to tubing on one end and has an NPT male thread connector on the other.
Compatible with stainless steel, copper, rigid and semi-rigid plastic tubing
Nominal pressure: 16Mpa/2900psi; Max Applicable temperature: 450℃/842℉

وصف

Product Description
Material:304 Stainless Steel
Type:Compression Tube Fitting
The compression fitting has the characteristics of reliable connection, strong pressure resistance, temperature resistance, sealing and repeatability, convenient installation and maintenance, and safe and reliable work.
Using the step
1.Cut the seamless steel tube with suitable length, the cut surface should be smooth and free of burrs

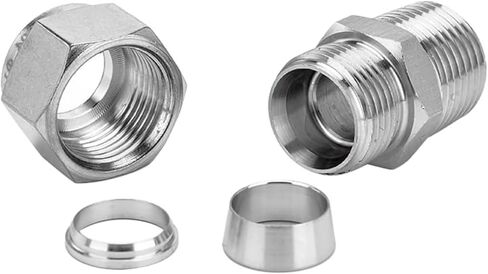

2.Put the nut and ferrule on the steel pipe in sequence, paying attention to the direction
3. Apply lubricating oil on ON the connector body and the ferrule, insert the steel pipe into the joint body to the end, and start to tighten the nut by hand

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

304 تركيب ضغط من الفولاذ المقاوم للصدأ 1/2 بوصة أنبوب OD x 1/2 بوصة NPT ذكر مقرنة محول مستقيم متصل بحلقات مزدوجة حزمة من 2
