مميزات خاصة

Part number: SD20, 2 pin Waterproof Aviation Bulkhead Panel Mount Connector, Termination type: Solder, Gender: Male plug female socket
Contact diameter: Φ2.8x2, Wire specification: <2.8m㎡/9AWG, Default Cable specification: 6-12mm max
Rated current: 25A, Rated voltage (AC.V.): 380V, Weight: 1.5 oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.
What's in the package: 1 plug + 1 socket with cap + 4 set screw, Type: Circular Waterproof Aviation Connectors
Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.

وصف

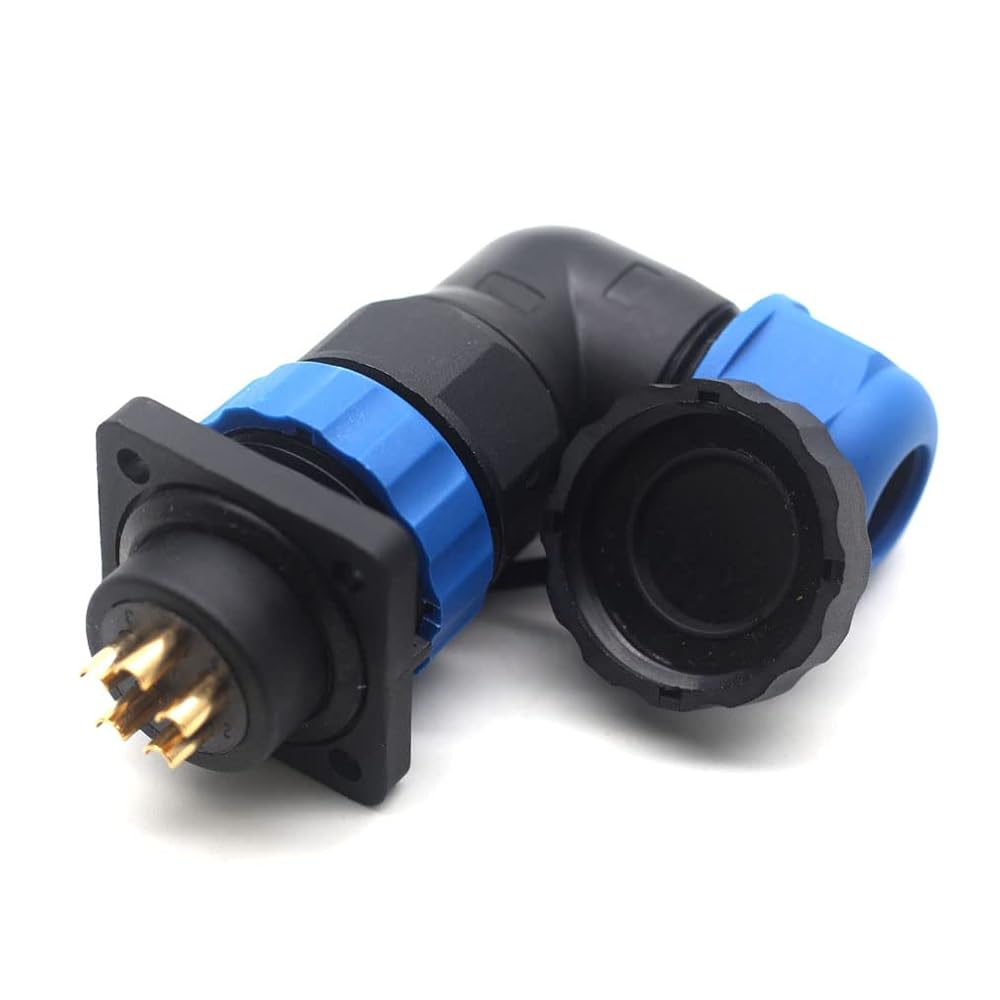

SD20 Serials IP67 Waterproof connector, 1 2 3 4 5 6 7 8 9 10 12 14PIN Aviation Connector
POWER CABLE AVIATION PLUG SOCKET

1pin, 3pin, 4pin, 5pin:
Rated Current (A): 25A
Contact diameter × number: Φ2.8x1 / Φ2.8x2 / Φ2.8x 3 / Φ2.8x 4 / Φ2.8x 5
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire specification:
6pin, 7pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.8x6 /Φ1.8x7
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Wire specification:
9pin, 10pin, 12pin, 14pin :
Rated Current (A): 5A
Contact diameter × number: Φ1.0x8 / Φ1.0x9 / Φ1.0x10 / Φ1.0x12
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Wire specification:
Other details:
Coupling: Thread
Shell material: Plastic
Insert Material: PPS, max temperature 120°
Contact material: Brass with gold plating
Termination: solder
Cable outer diameter range: 6-12mm max
