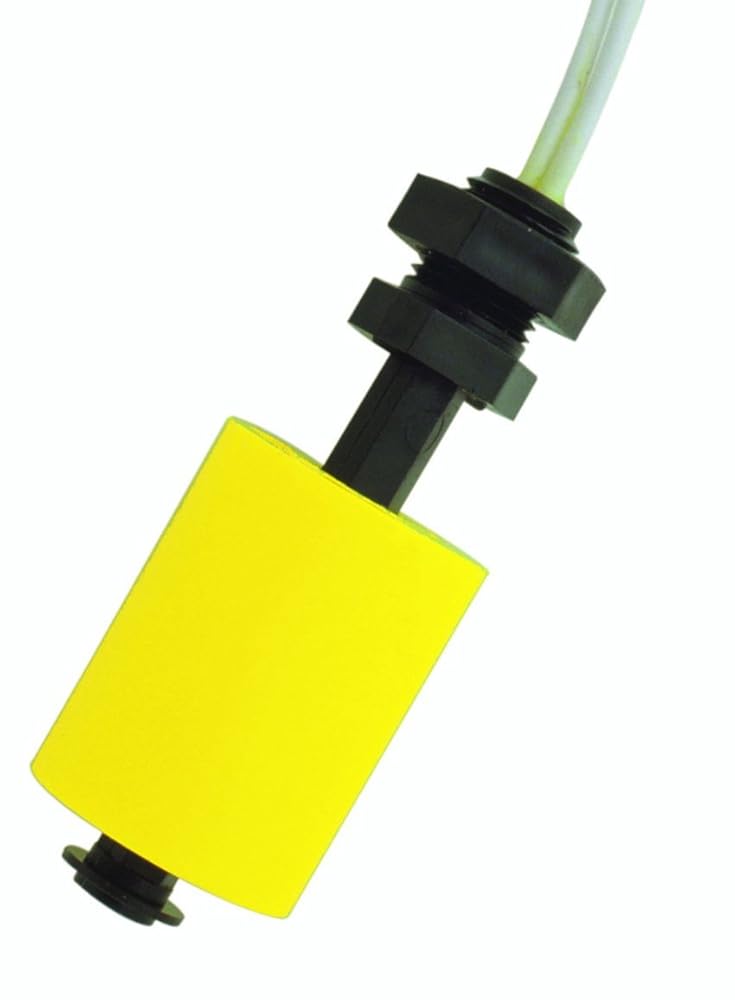

The Flowline LV20-1201 Switch-Tek Mini-Float Level Switch with polypropylene sensor mounts vertically inside tanks to detect the level of clean water and chemical solutions, and the float can be oriented to indicate either a high or low liquid level. The switch has a dry-contact reed switch output that can be wired directly to a PLC (programmable logic controller), SCADA (supervisory control and data acquisition), or other controller for monitoring. While the switch functions best in the vertical position, it can operate in most liquids with the stem at up to a 20-degree angle from vertical. It has a 1/8" male NPT process mount and a 2' long, two-conductor, PVC-jacketed wire for making connections. The sensor is Ingress Protection certified IP68 for protection against dust and immersion under pressure. Float-level switches are commonly used in manufacturing and water-treatment applications.
SpecificationsAccuracy+ or – 5mm in waterRepeatability+ or – 2mm in waterSpecific gravity0.8 minimumContact typeSPST reed switchContact rating120VAC/VDC at 50VAContact outputSelectable NO (normally open)/NC (normally closed)Process temperature– 40 to +80 degrees C/– 40 to +176 degrees FMaximum pressure10 psi/0.7 barStandards metCE (European Conformity ) markingDimensions (including process mount)58 x 20mm/2.3 x 0.8 inches (length x diameter)
Flowline manufactures measurement and control instrumentation for chemical, water, and wastewater applications. The company, founded in 1990, is headquartered in Los Alamitos, CA.
