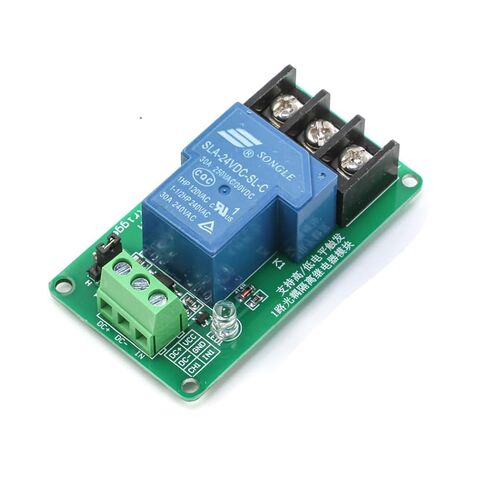

Description:
1. This relay module uses high quality 30A relay, normally open interface maximum load: AC 250V/30A, DC30V/30A.
2. It use optocoupler isolation, strong drive capability, stable performance; trigger current 5mA.
3. Voltage: 5V, 12V, 24V optional
4. Use the jumper wire to set high or low trigger
5. Friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient.
Parameters:
Relay voltage: 5V
Quiescent current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Relay voltage: 12V
Quiescent current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Relay voltage: 24V
Quiescent current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Wiring:
1.DC +: DC power supply positive (trigger terminal voltage positive)
2.DC-: DC power supply negative (trigger terminal voltage negative)
3.IN: Signal trigger terminal (the default trigger voltage and power supply the same)
4. High/Low level trigger mode selection, as shown, jumper and L-side connection, IN-side low-level trigger, connected with the H-side high trigger
5. NC (NC): Normally closed
6. Common (COM): Common
7. NO(NO): Normally open
Package included:

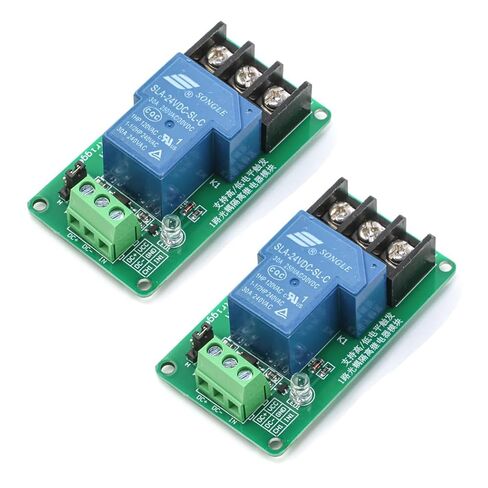

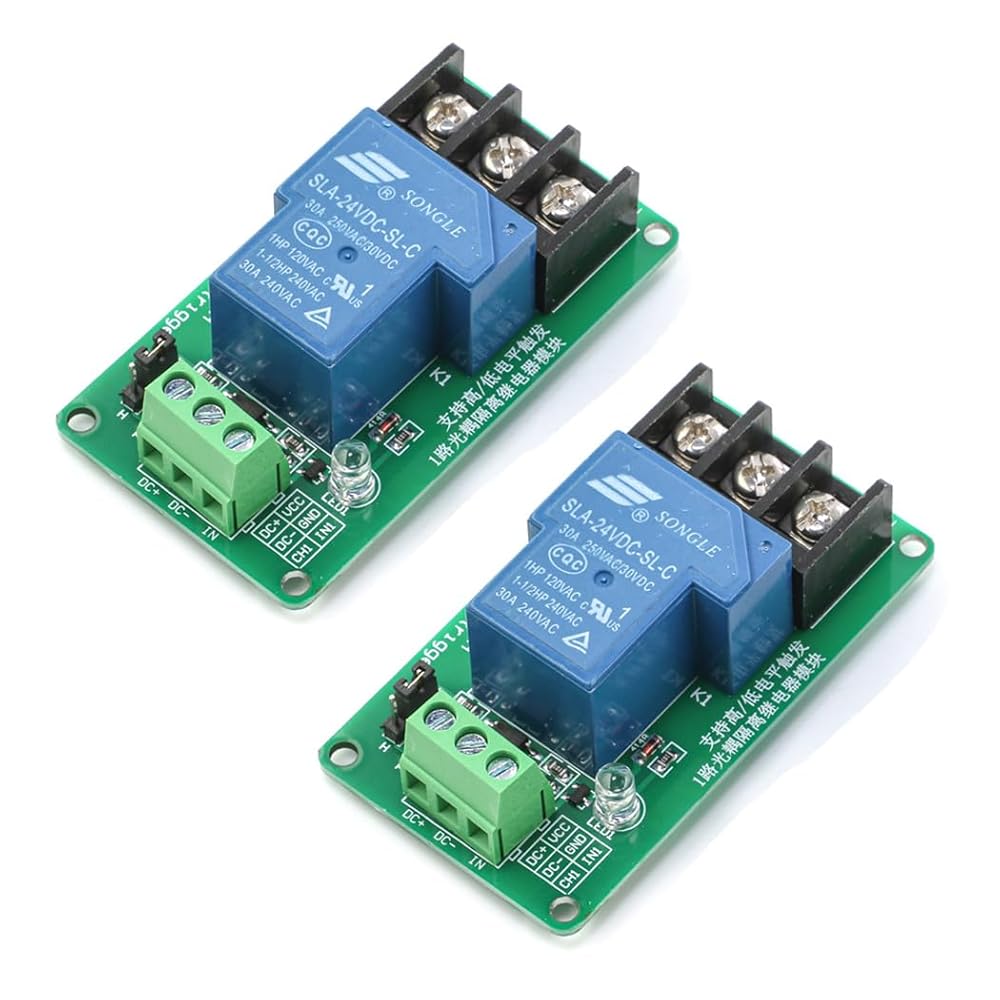

2 x 30A One Channel Relay Module(5V 12V 24V Optional)
(Note: Pack of two, it means you will get two SAME, not mixed types)
