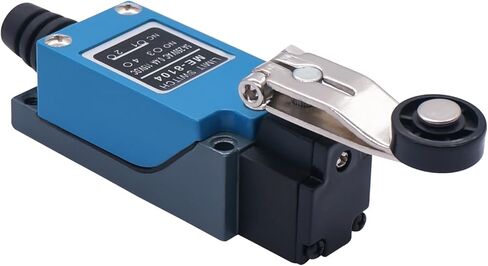

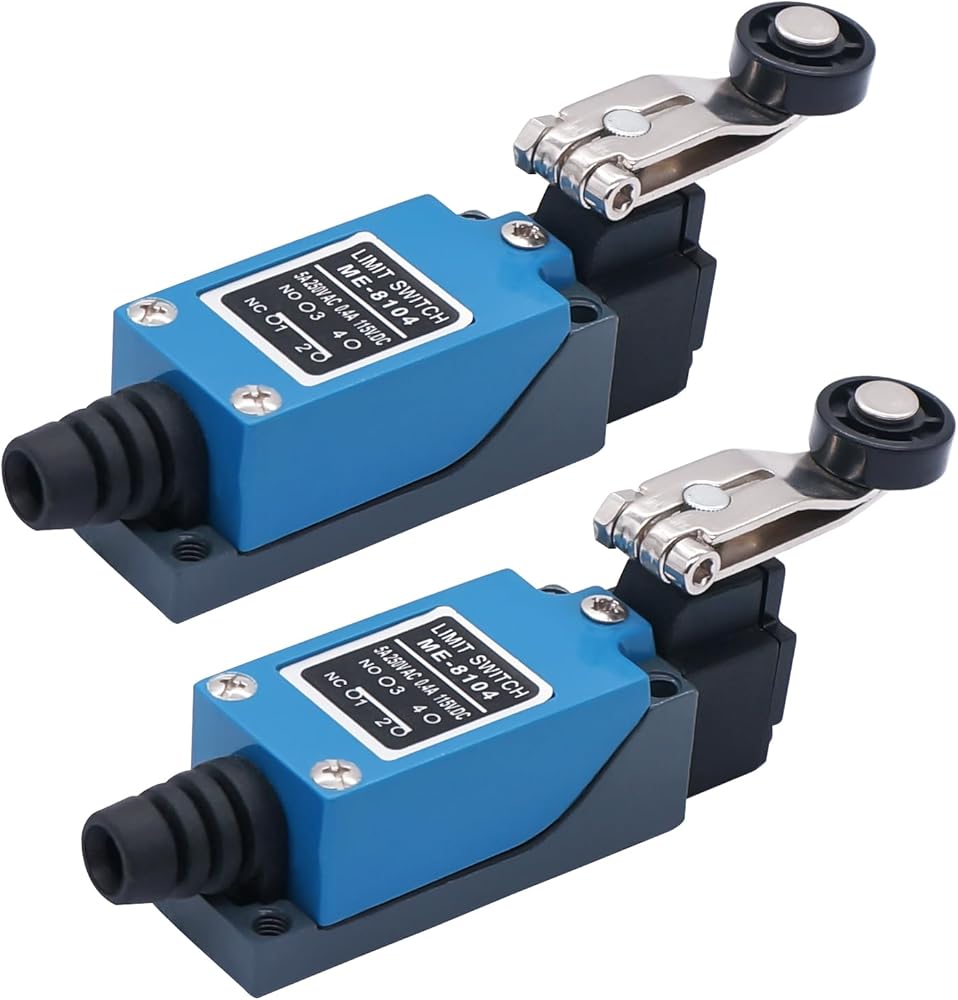

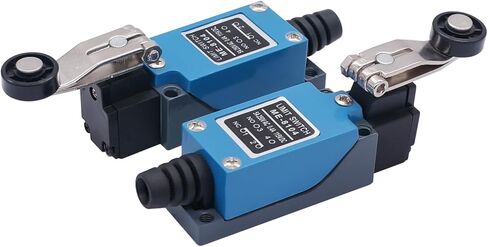

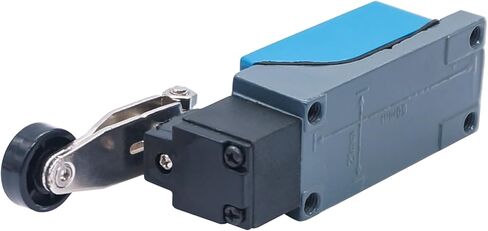

TWTADE / 2Pcs ME-8104 Revolving Plastic Adjustable Roller Level Arm Momentary Limit Switch

KWD 4
Brand
TWTADE
Weight
169 g
– 1 +

Special Features

  • Product name : mini limit switch; model no. : ME-8104; actuator action : Momentary
  • Actuator Type : rotary adjustable lever arm with roller; contact configuration : NC + NO (dpdt); rated Voltage : AC 250V 5A, dc 115V 0.4A
  • Roller dimension : 18 x 7Mm/0.71" x 0.2"(D*t); lever arm length : 4cm / 1.6"; fixing thread diameter : 4.5Mm/0.18'' ;
  • Body Size : ~9.3 x 2.8 x 2.5cm / 3.7" x 1.1"x 1"(L*W*H);mounting size : 5.6 x 2.1cm/2.2" x 0.8 inch (l*w); material : rubber, plastic & metal

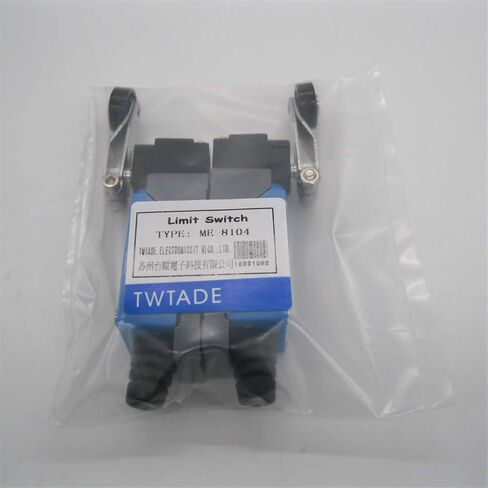

  • Excellent quality, preferential price, bring you the best shopping experience. Package Content : 2 x Limit Switch

Description

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant and use in safety circuits to control circuit and auxiliary circuit for terminal limit protection. Safe and reliable ,dust and oil proof ,small installation size ,the products are for general use. The lever arm can rotate, can be rotated to the left and to the right.
