10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait 10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait 10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait 10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait 10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait 10 Gauge Electrical wire Marine Grade Primary wire Cable High Voltage 1000V Automotive high temperature wire battery cable 10 AWG Stranded of Tinned copper Hook up wire Hard wires 25FT Red Roll in Kuwait

10AWG Black

KWD 10.500
Brand
Haerkn
Weight
0.6 kg
Style10AWG Black
– 1 +

Special Features

  • Total 25 feet：Red
  • 10 Gauge FEP Wire - 37 strands of 0.45 mm Tinned copper wire
  • High Temperature Resistant Wire.Temp: -60 degree celsius +200 degree celsius
  • Nominal Voltage 1000V;Bear Current: 50A
  • Conductor:High-purity oxygen-free Tinned Copper

Description

Gauge: 10 AWG 10370
Total 25 feet：Red

PHYSICAL CHARACTERISTICS:
(1) Nominal Temperature: -60/200℃
(2) Nominal Voltage: 1000V
(3) Spark Testing Voltage: 10KV
(4) Flame Test: VW-1/FT1
(5) Bear Current: 50A (6) UL758 1581(According to UL758 1581 Standard)

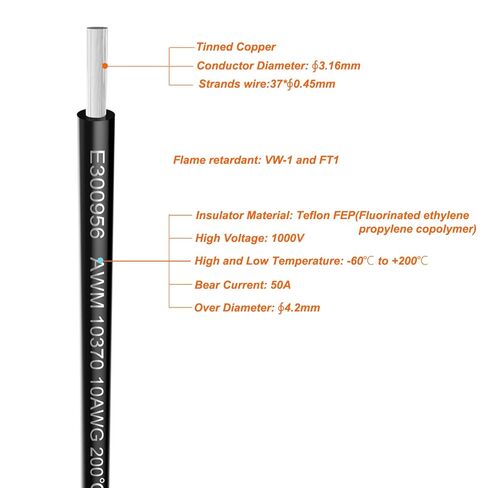

Conductor:
(1) Material: High-purity oxygen-free Tinned Copper
(2) Copper Number/Wire Diameter 37/0.45±0.01mm
(3) Over Diameter 3.16±0.15mm
INSULATION:
(1) Material: FEP
(2) AVG Thickness of Insu 0.5mm/Min Thickness of Insu 0.4mm
(3) Over Diameter: 4.2±0.2mm

Marking Content:E300956 AWM 10370 10AWG 200℃ 1000V VW-1 GUANGDONG HAERKN NEW ENERGY CO.,LTD c AWM 10AWG 200℃ 1000V I A FT1 ROHS
