Product parameters:

Input voltage: 4-38V (please try not to exceed 38V for input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, it is recommended to use within 4.5A
Output power: It is recommended to use within 75W.
Working temperature: -40~+85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and voltage difference)
Load regulation rate: S(I)≤0.8%
Voltage regulation rate: S(u)≤0.8%
Power indicator: yes
Short circuit protection: yes (limited current 8A)
Over-temperature protection: yes (automatically turn off the output after over-temperature) Input reverse connection protection: no, (if necessary, please connect a high current diode in series with the input)
Installation method: 2pcs 3mm screw
Wiring method: welding, V-IN is input, V-OUT is output
Module size: length 54mm width 23mm height 18mm
Weight: 16g
Products include

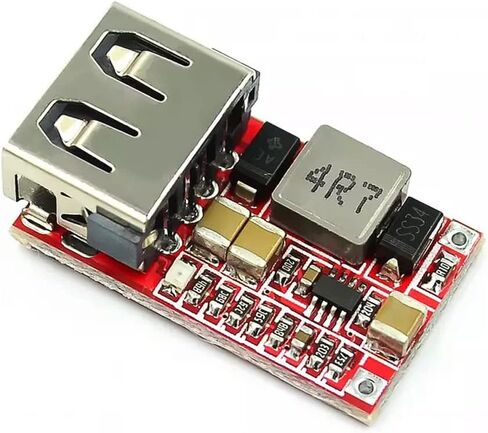

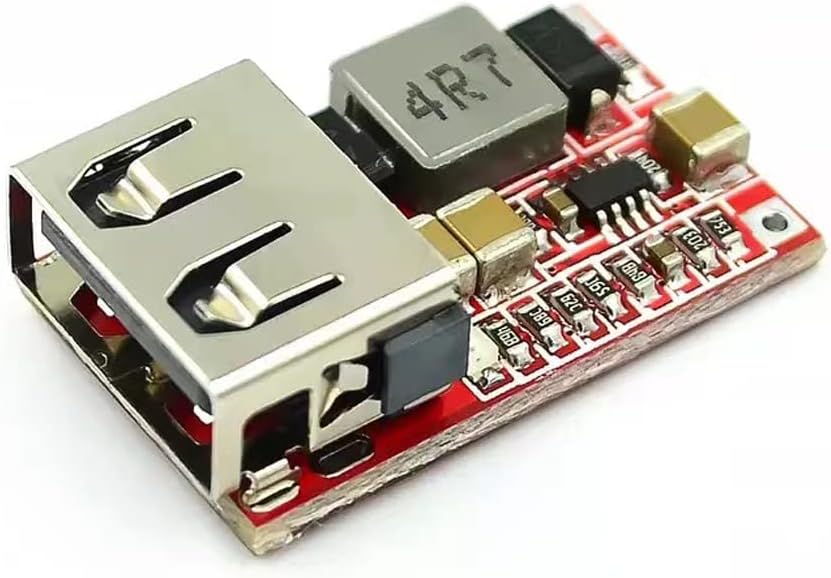

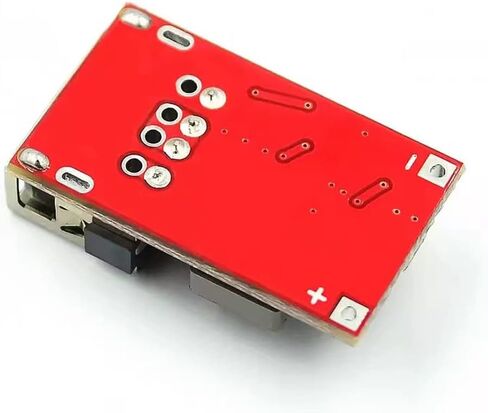

Step-down module*1
