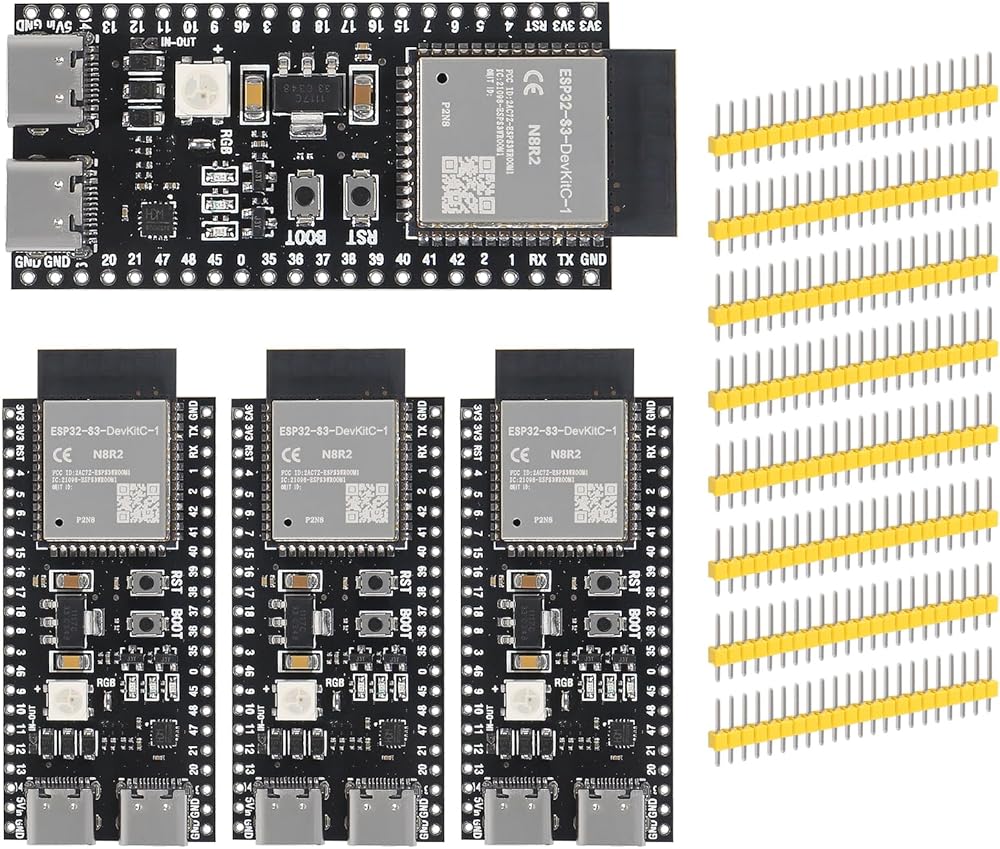

4PCS ESP32-S3-DEVKITC-N8R2 ESP32-S3 Type-C Board Wi-Fi + Bluetooth MCU يدمج وحدة Wi-Fi و BLE الكاملة ESP32-S3-Devkitc

KWD 10.500
مقاسESP32-S3 N8R2
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

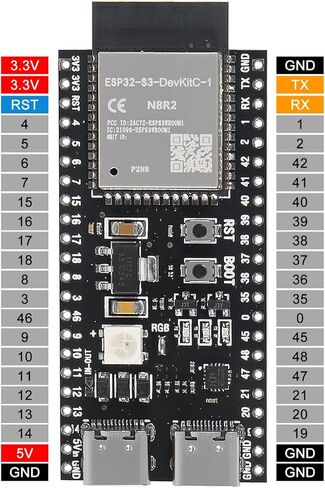

  • ★5V and G (GND) pins; 3V3 and G (GND) pins
  • ★ESP32 / ESP32-S3 WiFi+Bluetooth Internet Of Things Dual Type-C Development Board Core Board ESP32-S3-DevKit C N16R8 For Arduino
  • ★ESP32-S3 has a complete Wi-Fi subsystem and a Bluetooth LE subsystem, State-of-the-art power and RF performance.
  • ★USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended)
  • ★The ESP32 -S3 is equipped with 32 bit LX7 dual core processor, with the main frequency up to 240 MHz, built-in 512 KB SRAM (TCM), 45 programmable GPIO pins and rich communication interfaces.

وصف

Specifications:
Xtensa dual-core 32-bit LX7 CPU
frequency up to 240MHz
Memories:
384 KB of ROM
512 KB of SRAM
16 KB of RTCSRAM
8 MB of PSRAM
Working Voltage: 3V to 3.6V
Up to 45 GPIOs
2*12-bit ADC (up to 20 channels)
Extended Temperature Range: -40℃ to +65℃
Security 4096 bit OTP, AES, SHA, RSA, ECC, RNG
Secure Boot, Flash Encryption, Digital signature, HMAC module

Interfaces:
2 I2C interfaces
2 I2s interface
4 SPI interfaces
3 UART interfaces
1 USB OTG interface
