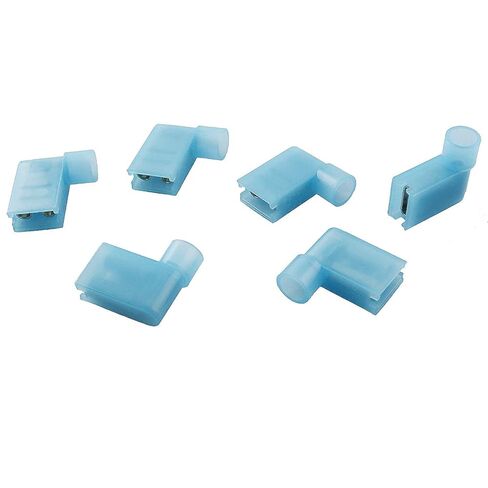

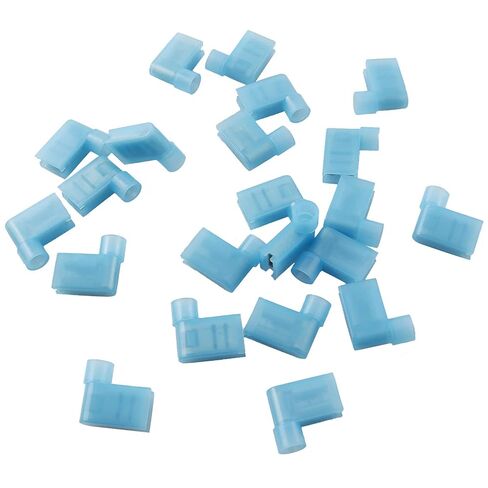

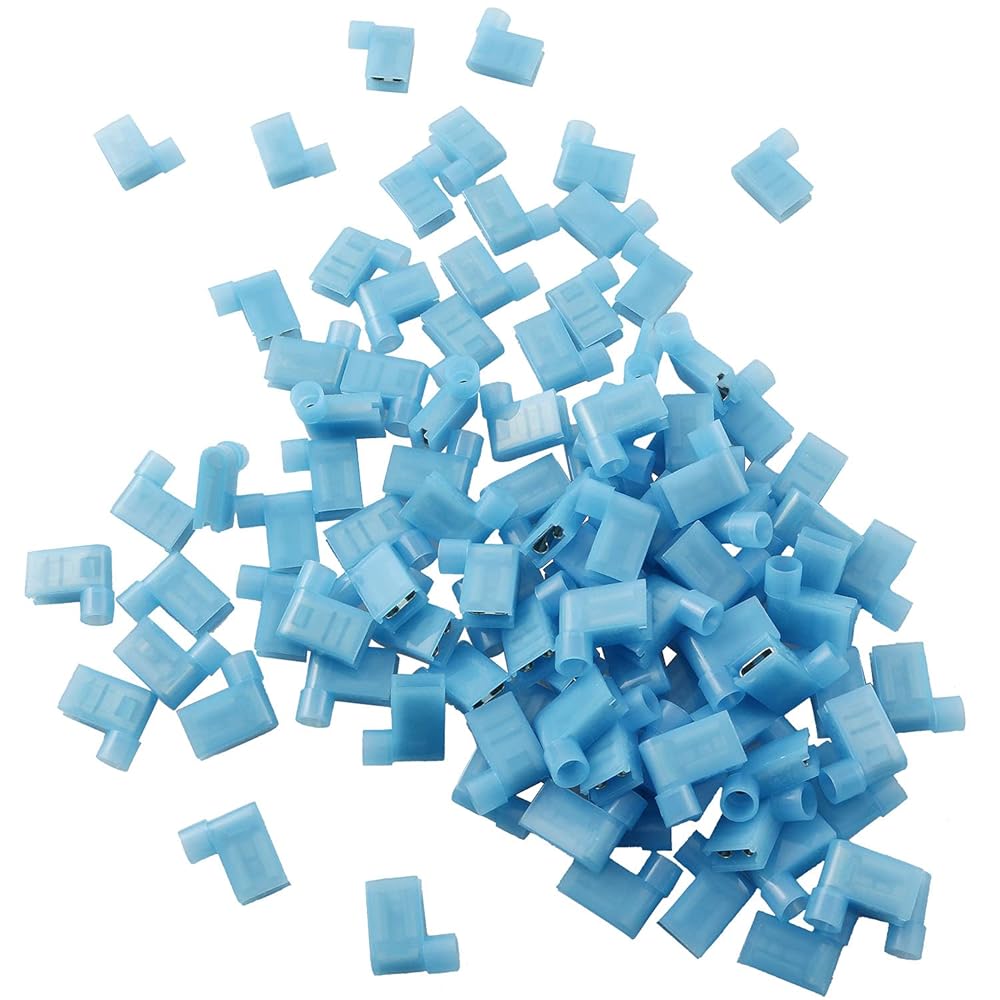

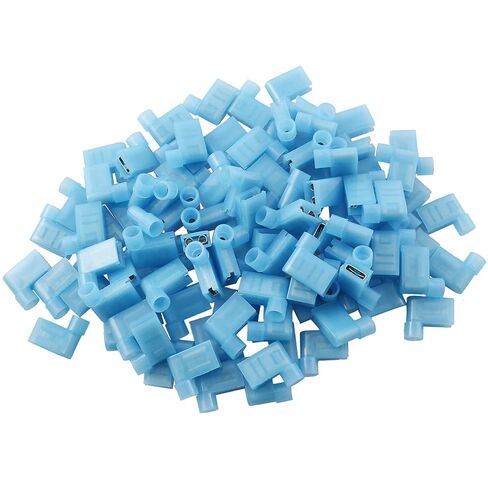

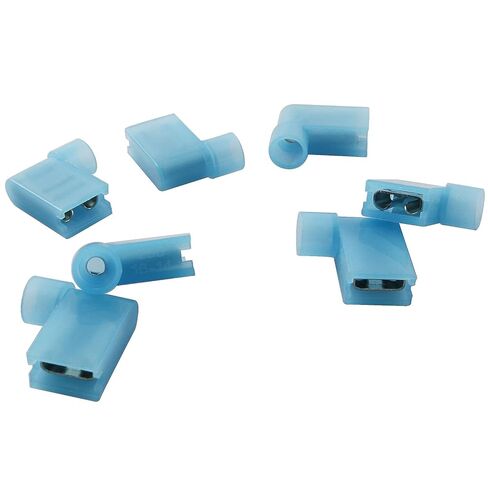

Right Angle Spade Connector 100PCS 16-14AWG Flag L Shape Insulated Spade Crimp Terminal Connector Blue

KWD 4
Brand
Longdex
Weight
133 g
– 1 +

Special Features

  • The brand-new high-quality spade-shaped terminal blocks are convenient, fast and safe to disconnect and prevent wiring failures. It is an ideal wire connector for electrical wiring.
  • Technology: tinned/matt plating, nylon insulation, copper-plated copper core, and designed to withstand the strongest crimping width: 0.25 inches.
  • Durable female head fully insulated nylon quick disconnect 90 degrees.
  • How to use: Remove the protective layer of the part of the wire that needs to be connected, insert the round end of the terminal and press it, and then insert the flat end into other positions that need to be connected.
  • Size:W (width): 6.6mm,L(length): 16.3mm,D (hole diameter): 2.3mm,F: 11mm.

Description

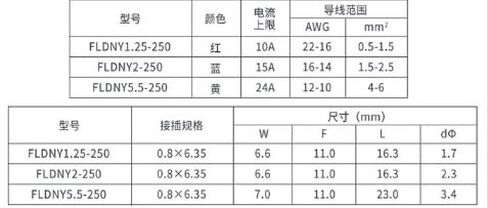

Specification
Product Name: Blue FLDNY2-250 flag terminal
Model: FLDNY2-250
Color: blue
Current upper limit: 15A
Wire range: 16-14AWG, 1.5-2.5 SQMM
Connector specification: 0.8X6.35
Size:
W (width): 6.6mm
L(length): 16.3mm
D (hole diameter): 2.3mm
F: 11mm

Insulation sleeve material: nylon tube
Broken head material: brass
Features of the wire clamp: anti-aging, high temperature resistance, firm and safer wiring
How to use: Remove the protective layer of the part of the wire that needs to be connected, insert the round head of the terminal to press it, and then insert the flat head into other positions that need to be connected.
Applicable wire diameter: 1.5-2.5 square millimeters
Applicable line type: both soft and hard lines
