Selling Items Model Number:

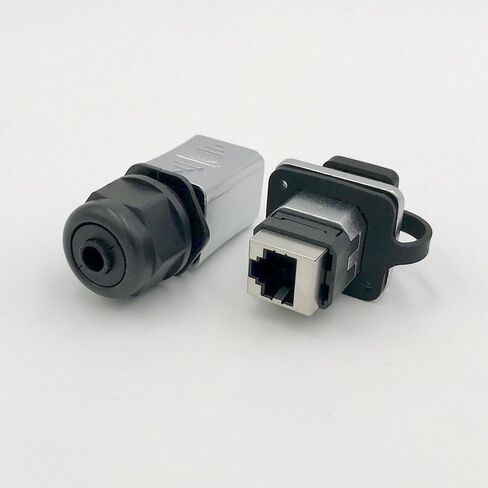

Plug: YT-RJ45-CPE-03-001
Socket: YT-RJ45-JSX-05-003A

Cable specification: 0.15m㎡～0.2m㎡/26-24 AWG
Diameter range: Φ5.5mm～Φ7mm
Contact diameter × number: 8
Rated Current (A): 1.5A
Contact resistance: Insulation resistance: ＞500MΩ
Withstanding Voltage (AC.V) 1 minute: 1000V
Protection level: IP67
Durability: ＞500 times
Working temperature: -40℃～80℃
Assembly Wire: Plug/unplug
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
