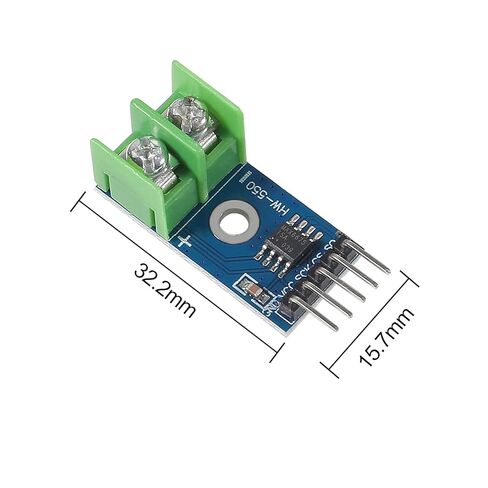

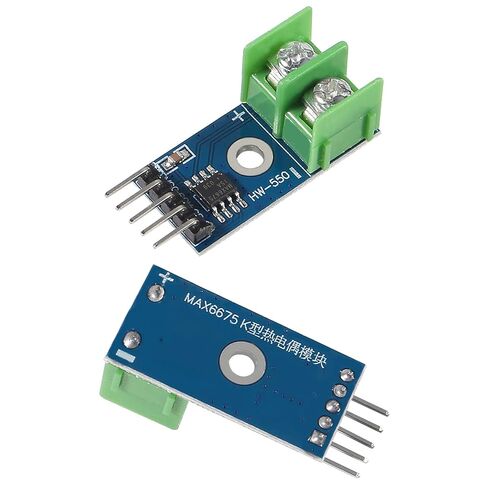

The MAX667 module features a 12-bit resolution serial thermocouple analog-to-digital converter
with cold junction compensation, linearity correction, and thermocouple break detection.

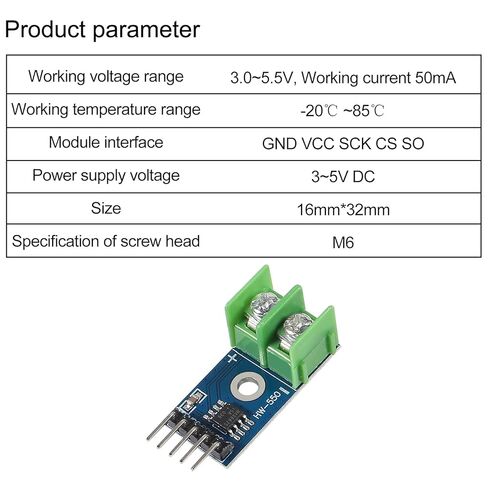

Description:
-Interface: SPI
-Test Temperature Range: 0 °C - 1024 °C, the converter temperature -resolution is 0.25 °C.
-Working voltage range: 3. 0 ~ 5. 5V DC
-Working current: 50mA
-Operating temperature range: -20 °C ~ 85 °C
-The temperature measurement accuracy: ± 1.5 °C
-Module Interface: GND VCC SCK CS SO
-On-chip cold junction compensation
-High impedance differential input
-Thermocouple disconnection detection
-K type thermocouple junction location, use 301 ordinary terminals
-2000V ESD signal

Applications:
It is widely used in Industrial, Appliances, HVAC; Especially suitable for single-chip computer enthusiasts,
students, scientific research units experiment.

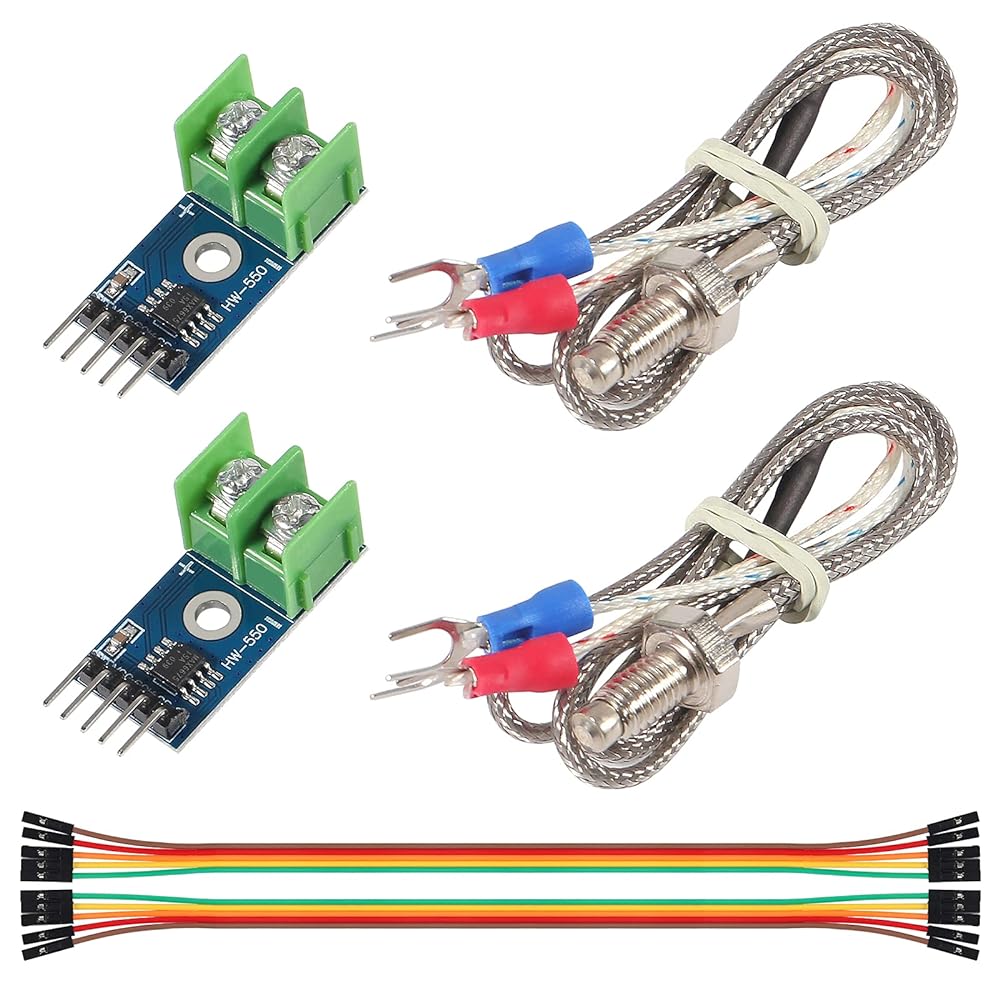

Package Included:
2 * MAX6675 Module

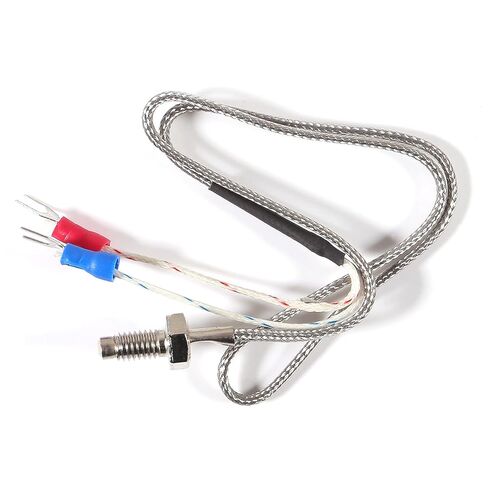

2 * K Type Thermocouple Sensor

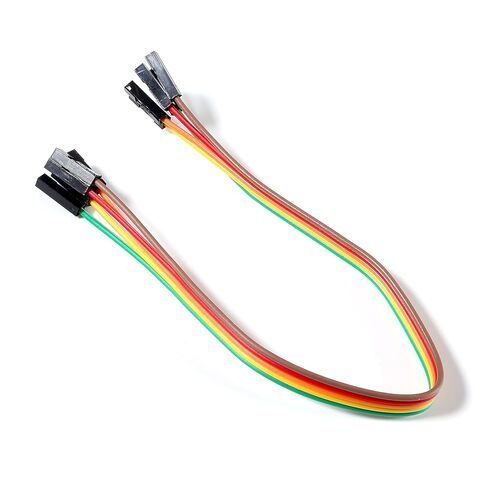

2 * DuPont Line
