WELL PACKAGED TEOEBGO AC Capacitor 50/60 45+5 MFD±5% 45/5 uF 370/440 VAC CBB65 Round Dual Run Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner, Heat Pump Condenser, Fan Start, Pool pumps, Furnaces, 45/5 Microfarad - AC Motor Run, HVAC and Fan - 6 Years Warranty

Description:
Capacitance tolerance: ± 6%
Rated voltage: 370V / 450VAC
Working Temperature(TW): -40 ℃ to 70 ℃
Rated Frequency(fn): 50/60Hz
Dielectric dissipation: ≤0.002 100Hz
Relative humidity: ≤95%
Dielectric Material: Polypropylene
Encapsulation method: Aluminum
Terminal conductor: Copper
Test standard: IEC60252
Flammability rating: UL94V-0
Explosion proof rating: S2

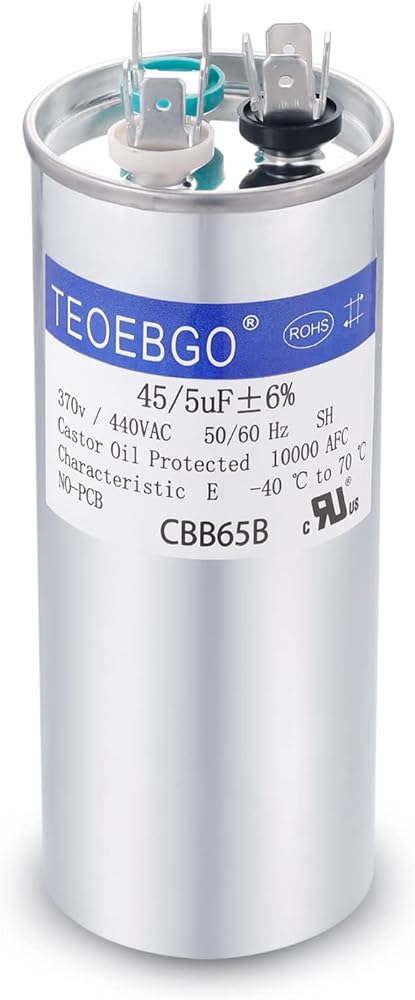

The 45/5 uf round dual run capacitor for ac combines two capacitors into one unit. AC capacitor will power a compressor motor and a fan motor, and has three terminals on the top. They are labeled "HERM" for the compressor motor, "FAN" for the fan, and "C" for the common line.

Safety measure:When replacing a capacitor always be sure to turn off the power to the air conditioning unit and place a screw driver between the terminals of the capacitor to release any stored charge. In order to allow a correct working of the safety device and to assure a sufficient electric insulation, a room of 0.59inch/15mm.

Replacement for:
97F9895,Z97F995, 97F9895BZ3, 27L880, TRCD455, TRCFD455, PRCFD455, 27L889

97F9851, 97F9851S, 12788, RC0114, Z97F9895, 97F9895, HC98JA046, TT-CAP-45/5/440R

HC98KA046, CAP050450440RT, TP-CAP-45/5/440R, HCKS450D050R440Z, 00662441180262
