Special Features

Output voltage: 13.8V (fixed output), output current: 10A max, output power: 138W;Input Voltage: 12V/24V/36V nominal, accept(8V-40V) range.
Over current protection, Over voltage protection, Over temperature shutdown, Fuse built,can work safely and reliable in -40°C~80°C range.

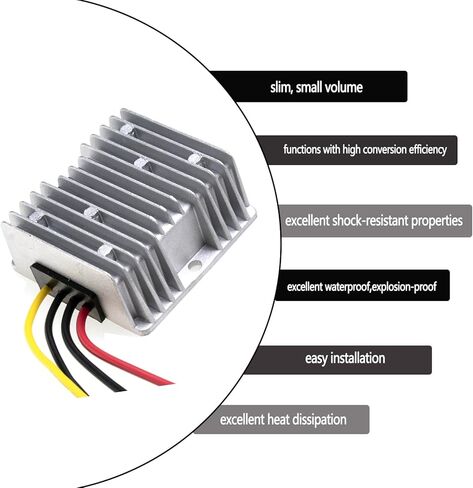

Compact aluminium shell with epoxy potting, excellent waterproof, dustproof, explosion-proof, shock-resistant properties and heat dissipation,The length of the line is about 17CM, slim, small volume, easy installation.
Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
NOTICE: If your device's load is close to the MAX POWER, please select a higher power converter, as it can not be used for long time by the MAX POWER.

Description

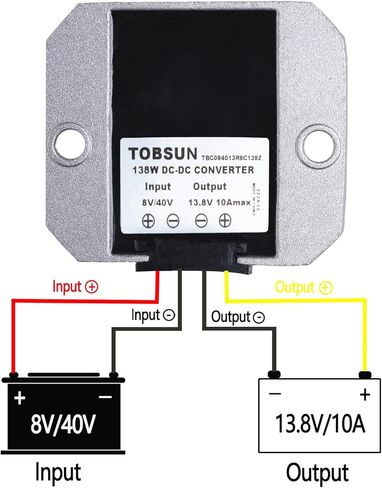

FeaturesOutput Voltage: DC 13.8V 2%Output Current: 10A (max)Output rated power: 138WInput Voltage: 12V/24V/36V nominalInput range: 8V-40VRipple Wave: 50MvStarting Delay time: 2SEfficiency: 95%Operating Temperature:-40 80℃AttentionInput: Red(+) Black(GND)Output: Yellow(+) Black(GND)The positive and negative poles cannot be reversed, otherwise the modules and components may be damaged.In order to ensure that the converter has sufficient voltage and power, please ensure that the input voltage and current are sufficientWhen the output does not have 13.8V, please check if your input voltage and current are sufficient.
