This is a POE power supply with input protection and power protection
System reliable: MTBF>100k hours.
Certified to EN60950, FCC standards.
The device has a compact size, wall-mounted design makes it easy to install the adapter in areas where space is marked, no configuration needed

Scope of application:

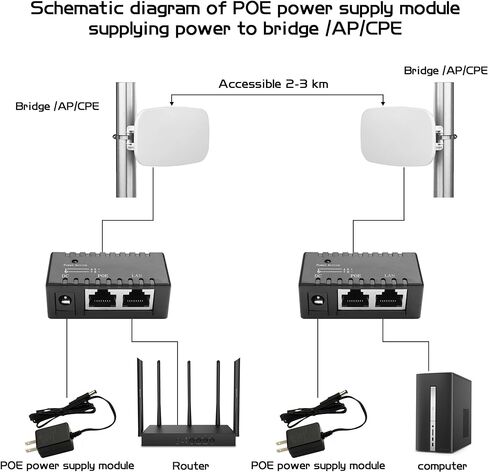

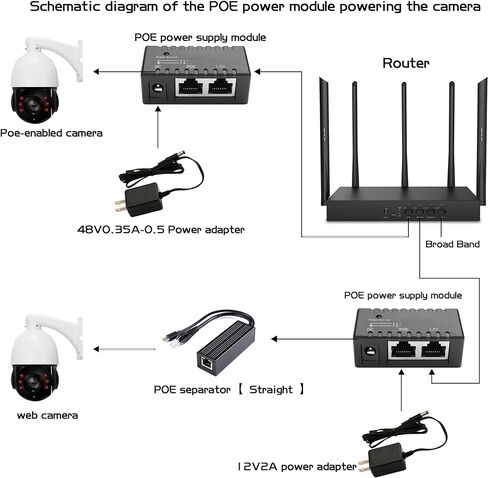

Suitable for POE Powered IP Phones/Wireless APs/Bridges/POE -
Inserted cameras and other network equipment

Do not connect the UAP-AC-LR and UAP-AC-LITE to this switch, otherwise it will burn your UAP-AC-LR/UAP-AC-LITE

Input: DC 5 V - 48 V 0.35 A - 2 A.
DC port: DC 5521.
Model: 2xRJ45, 4xRJ45
Date: 1,2,3,6 10/100 Mbps, 1000 Mbps.
Voltage Input: DC 5V-48V 0.35A-2A
Power: 24 W, 96 W MAX
Output voltage: output current = input (48 V 0.5 A input = 48 V 0.5 A output).
Voltage cable control: ± 3%.
Load: ± 5%.

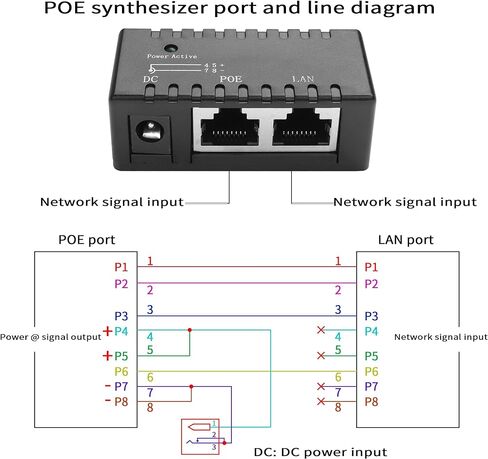

Power supply: positive electod 4.5; negative electrodes 7.8; data: 1,2,3,6. Date: 10/100Mbps 1000Mbps
Transfer Distance: Up to 100 meters
