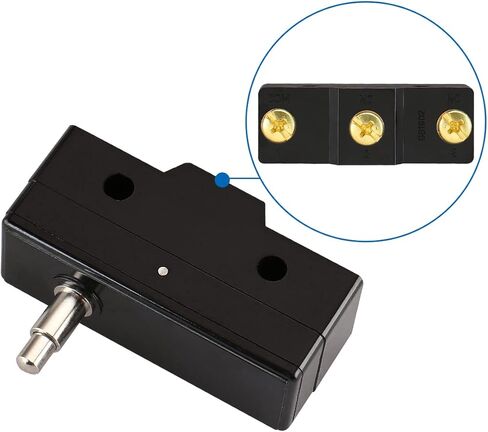

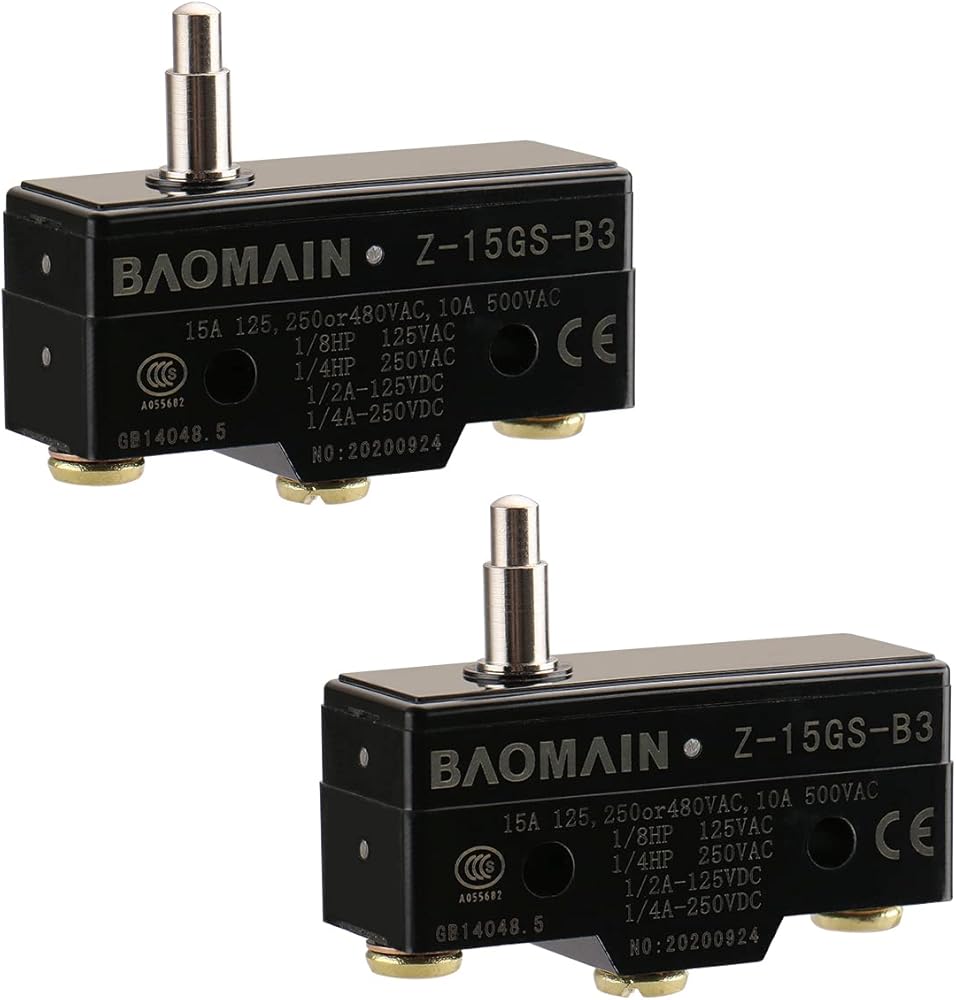

Baomain 2PCS Z-15GS-B3 General Purpose Basic Switch, Slim Spring Plunger, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current

KWD 4.500
Brand
Baomain
Weight
1 g
– 1 +

Special Features

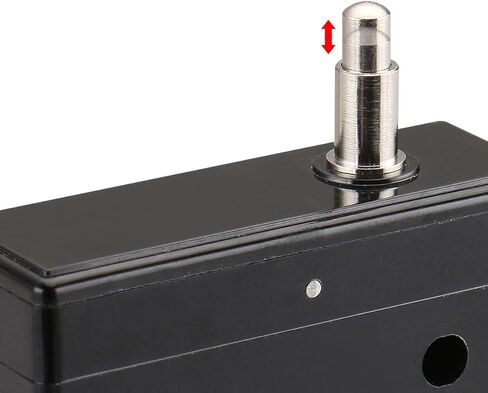

  • Product Name : Micro Switch;Actuator Type : Plug Column Button Type;Actuator Action : Momentary
  • Contact Type : SPDT 1NO 1NC 1 Com;Terminal Type : 3 Screw Terminals;Ui / Ith : AC 250V 15A;Rated : 15A 125/250/480VAC,1/4HP 250VAC / 1/4A 250VDC
  • AC-15 : 2A/15A 250V;DC-13 : 0.25A 250V;Button Diameter : 4mm / 0.16";Hole Dia : 4.5mm / 0.2"

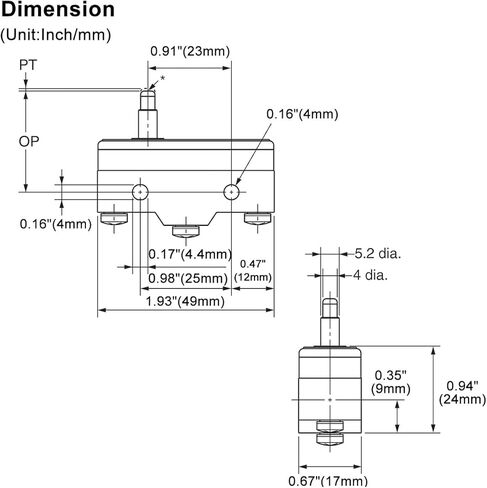

  • Hole Center Distance : 25mm/1";Body Size : 49 x 18 x 24cm / 1.9" x 0.7" x 0.9"(L*W*H)
  • UL & CUL CE listed;Net Weight : 32g*2

Description

This Micro Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection.
