5 Inch Touchscreen IPS MIPI DSI Display Compatible with Raspberry Pi 5/4/3, 800x480 Pixel Capacitive Screen Driver-Free Interface

Special Features

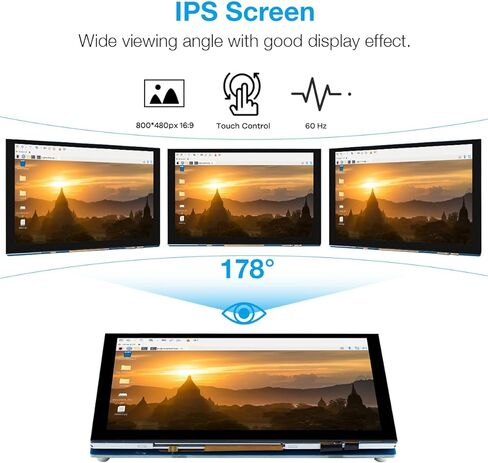

5-inch 16:9 800*480 resolution capacitive touch screen, IPS type, good viewing angle.

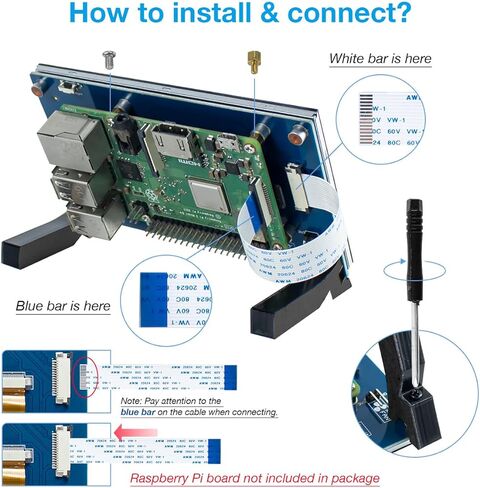

The MIPI DSI interface directly outputs, plug and play, no driver installation required.

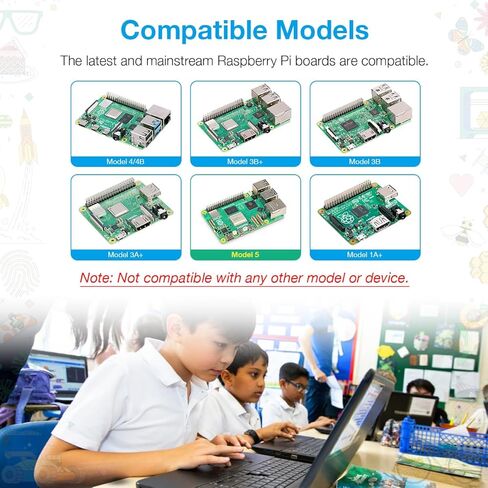

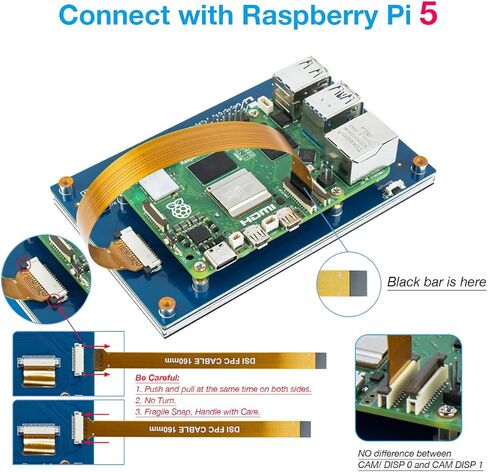

As a touchscreen monitor, compatible with Raspberry Pi 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+. (No HDMI. Not compatible with any other devices.)
Supports for Raspbian OS (supports multi-touch), for Ubuntu/Kali/Win10 IoT (single-touch only). Support PWM backlight brightness adjustment.

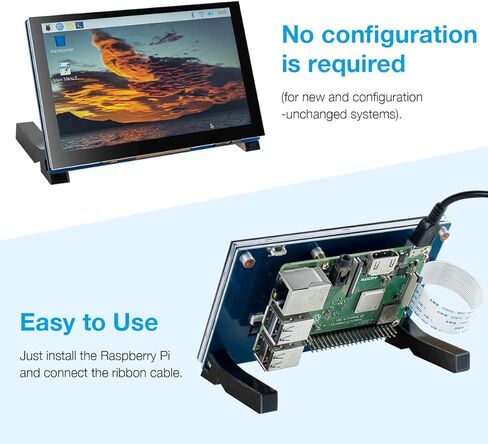

Easy to use -> No configuration required (for new and configuration unchanged systems). Provide detailed usage documentation.

Description

●800*480 resolution capacitive touch screens, IPS type
●MIPI DSI interface direct output, plug and play, no need to install driver

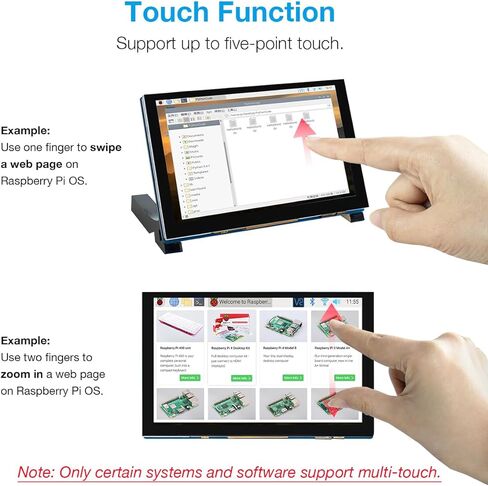

●Support for official system Raspbian, 2 points to zoom the page
●Support for Ubuntu/Kali/Win10 IoT, single touch
●Support for Retropie
●Support PWM backlight brightness adjustment, adapt to different use environment

LCD Type： IPS TFT
LCD Size： 5 inch
LCD Resolution： 800*480
LCD Interface type： RGB666
Module Interface Type： MIPI DSI
Touch screen type： Capacitive touch screen
Touch screen control： IC FT5426
Viewing Angle：Whole perspective
Active Area 108.00x64.80(mm)
Working Voltage： 3.3V
Maximum Operating Current： 340mA
Operating Temperature： -20℃-70℃
Module Size： 121.1x77.9(mm)
Module Weight (net weight)： 112 g
Package Size： 154*143*38(mm)
Package Weight： 165g

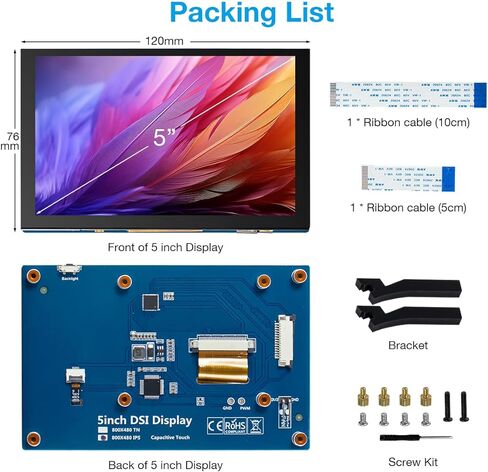

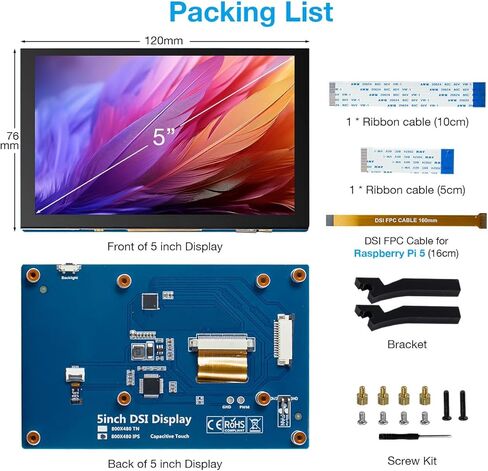

Packing List：
5inch DSI Display x1
FFC-1.0-15P-10cm-(Reverse) x1
FFC-1.0-15P-5cm-(Reverse) x1
Screw(M2.5) x4
Copper Pillar(M2.5) x4
screwdriver x1
