A. Test the environmental conditions
B. Unless otherwise specified, the tests in this specification shall be conducted
under the standard atmospheric conditions tested
C. temperature:15℃~35℃.
D. Relative humidity: 45%~75%
E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 KΩ / V.
F. The instrument accuracy of measuring current shall not be less than the 0.5 level
G. The accuracy of the instrument used for measuring the temperature shall not be less than ± 1℃

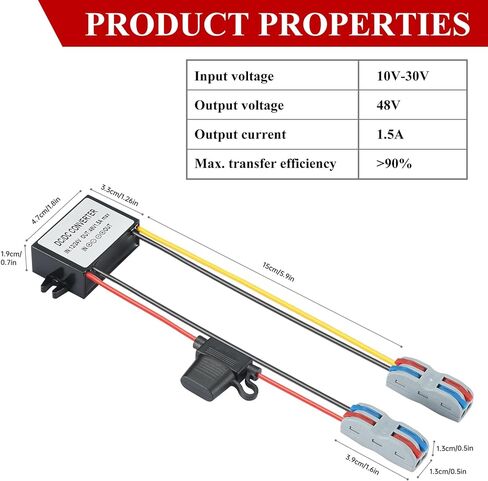

Input range:10-30V

Rated input voltage:12/24V

transfer efficiency:95%

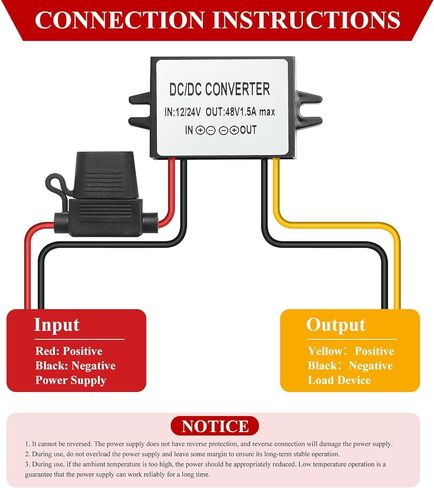

incoming line:15-16CM(R+ B-)

output voltage:48V

output:1.5A MAX

maximumoutput:72W MAX

No-load adjustment rate:2%

load regulation:3%

quiescent dissipation:≤20MA

Do not use it near a heat source (such as a fire or a heater)
Do not connect the input line to 220V electricity
Do not put the product into the fire or heat it
Do not short-circuit the positive or negative poles of the product with wires or other metal objects
Non-professional personnel are prohibited to disassemble and repair by themselves
