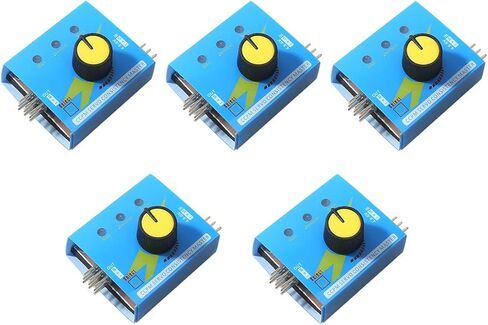

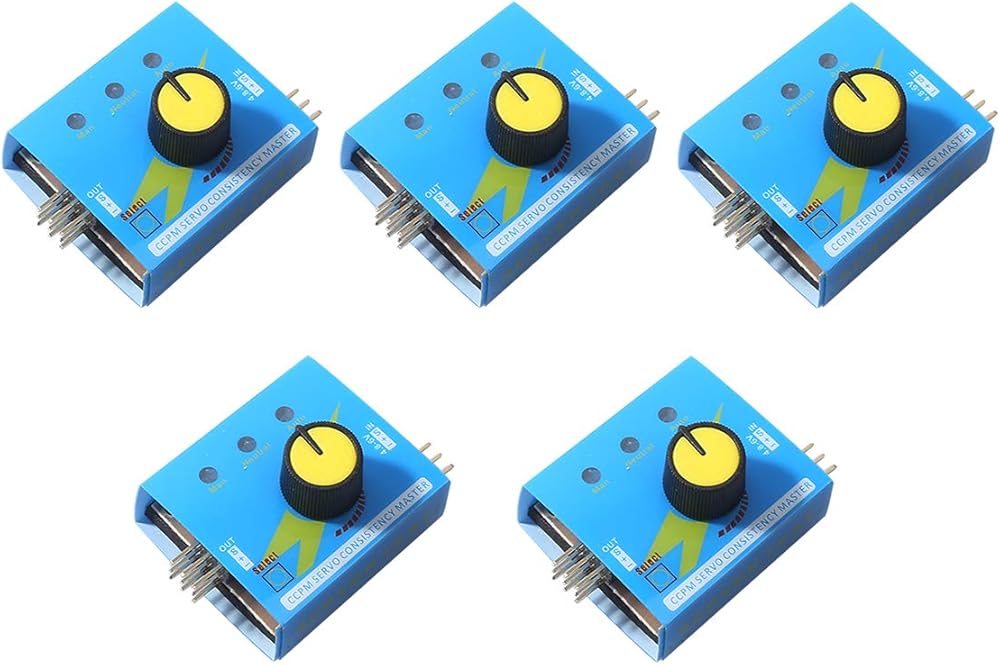

جهاز اختبار مؤازر محرك طائرات الهليكوبتر RC، (قطعتان) وحدة تحكم في السرعة عن بعد لخادم التحكم في السرعة، المعدات الكهربائية CCPM المؤازرة الرئيسية مع 3 أوضاع جهد إدخال المؤشر 4.8-6 فولت

KWD 5.500
عدد العناصر2
– 1 +

مميزات خاصة

  • The device can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
  • It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
  • You can also connect 1-3 ESC to test and compare their reaction time respectively.
  • It can connect 3 servos of the CCPM helicopters and select servos.
  • It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

وصف

There are 3 modes to check servos or ESC:

Manual mode: turn the knob with different speed, check the reaction time.

Neutral mode: make the servo go back to the neutral point.

Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

Specification:

-Type: CCPM Servo Tester, ESC or Servo tester

-Output: ≤15mA (5.0)

-Voltage Consumption: DC4.8-6V

-Output Signal: 1.5ms±0.5ms

Package Includes:

2 x Servo Tester
